1500/2000 KVA, Pri 13200 D, Sec 480Y/277, SIEMENS, DRY TYPE, INDOOR:1

STOCK #:T-3022<
<

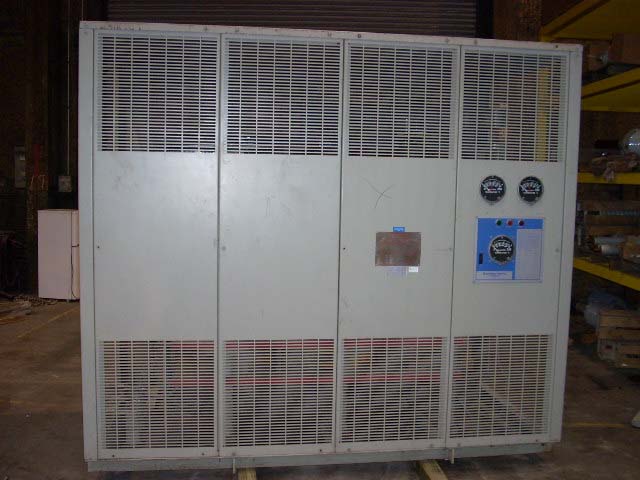

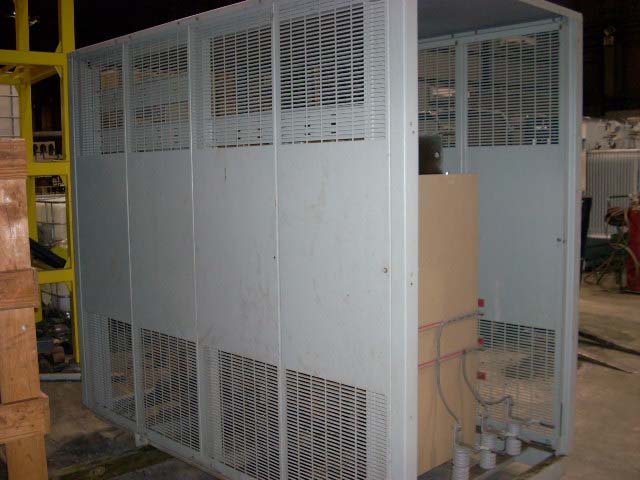

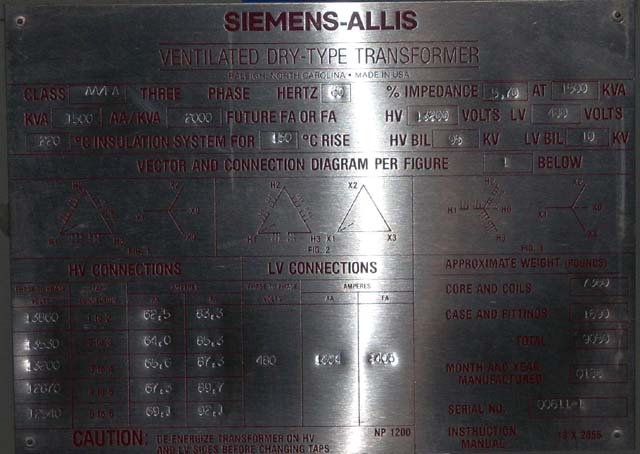

ONE (1) 1500/2000 KVA SIEMENS DRY TYPE TRANSFORMER, INDOOR ENCLOSURE, 3
PHASE,<
60 HERTZ, CLASS AA/FFA, 150 DEG. C RISE, 5.7% IMPEDANCE, ALUMINUM<
WINDINGS, S/N 00611-1, MFG. 1986
<
HIGH VOLTAGE: 13200 DELTA BIL: 95 KV<
LOW VOLTAGE: 480Y/277 BIL: 10 KV<
TAPS: 13860-13530-13200-12870-12540<
<
TOTAL WEIGHT: 9 050 LBS.<
CORE & COILS: 7,360 LBS.<
DIMENSIONS: 90"H X 102"W X 54"D<

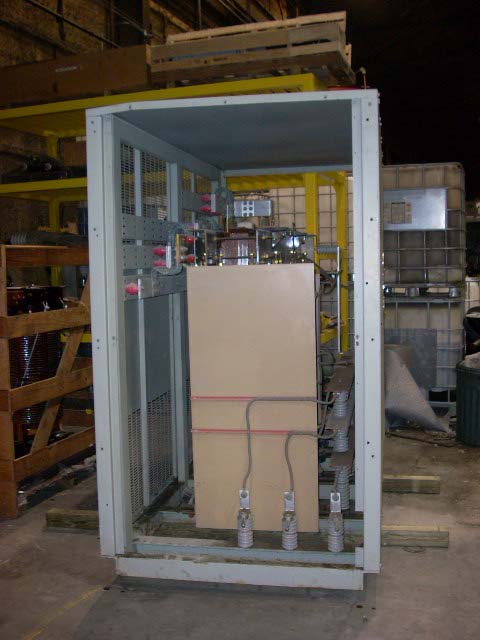

CORE & COILS: 80"H X 78"W X 41"D<
HV BUSS: 12"H<

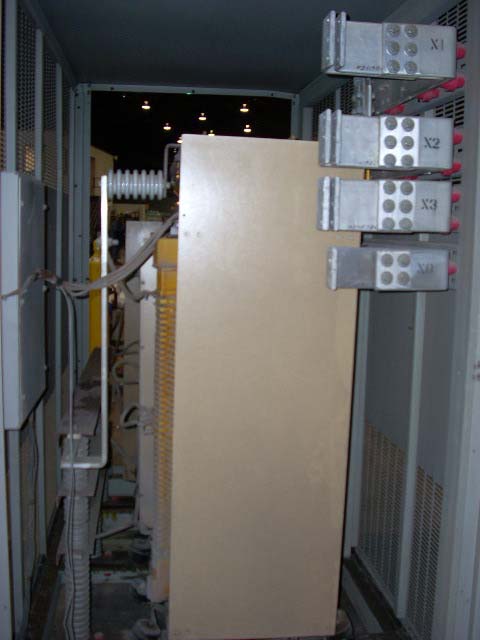

LV BUSS: 80"H<
