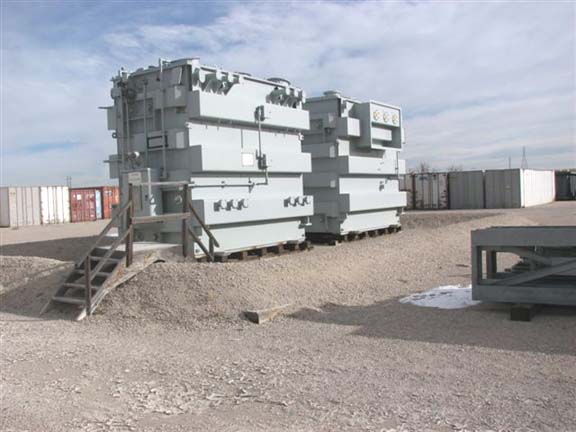

60/80/100 MVA, Pri 230000Y/132790, Sec 13200 D, 2002, GE PROLEC, GSU:1

ONE (1) 60/80/100 MVA GE PROLEC GSU TRANSFORMERS, 3 PHASE, 60 HERTZ, 65 DEG.
C RISE, CLASS OA/FA/FA, COPPER WINDINGS, ABB BUSHINGS, 9.359% IMP. AT
60 MVA, 12.5% IMP. AT 80 MVA, 15.63% IMP. AT 100 MVA, UNUSED

HIGH VOLTAGE: 230000Y/132790 BIL: 750 KV
LOW VOLTAGE: 13200 DELTA BIL: 110 KV
NEUTRAL: BIL: 110 KV
TAPS: 241500/139430
235750/136110
230000/132791
224250/129471
218500/126151

TOTAL WEIGHT: 282,933 LBS.
SHIPPING WEIGHT: 177,038 LBS.
CORE & COILS: 136,192 LBS.
TANK & FITTINGS: 64,304 LBS.
MAIN TANK: 75,281 LBS. (10,023 GALLONS)

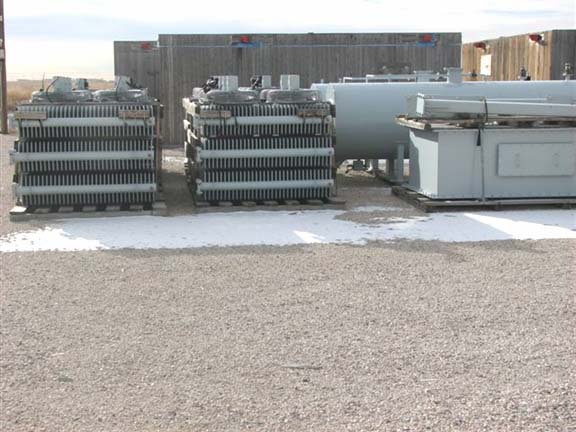

RADIATORS: 3,925 LBS. (522 GALLONS)

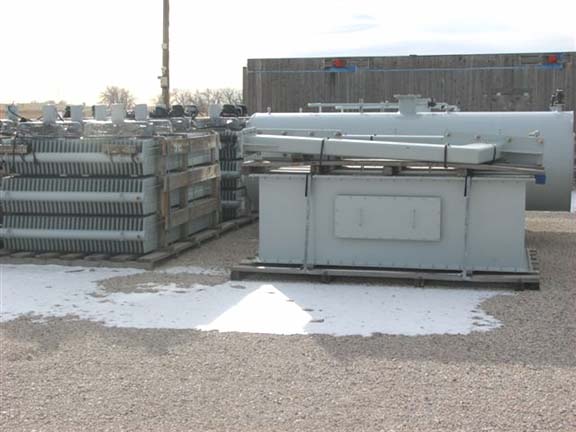

CONSERVATOR TANK: 3,231 LBS. (430 GALLONS)
