2000/2666 KVA, Pri 12470 D, Sec 480Y/277, SYLVANIA, CAST COIL, INDOOR:1
CAST COIL TRANSFORMER
Product Number:
033535
Full Product Description
STOCK #T-2987

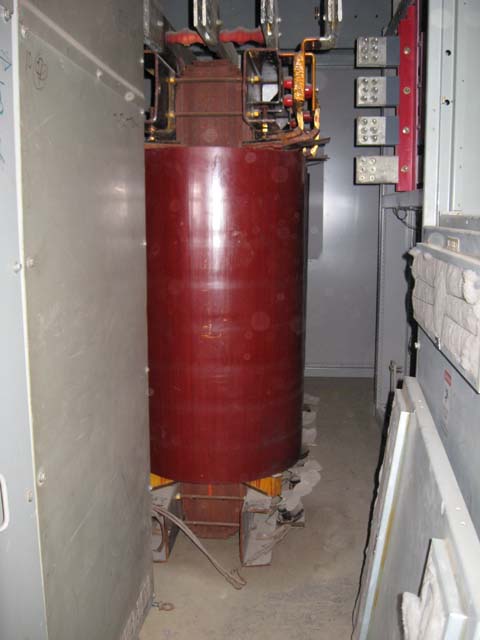

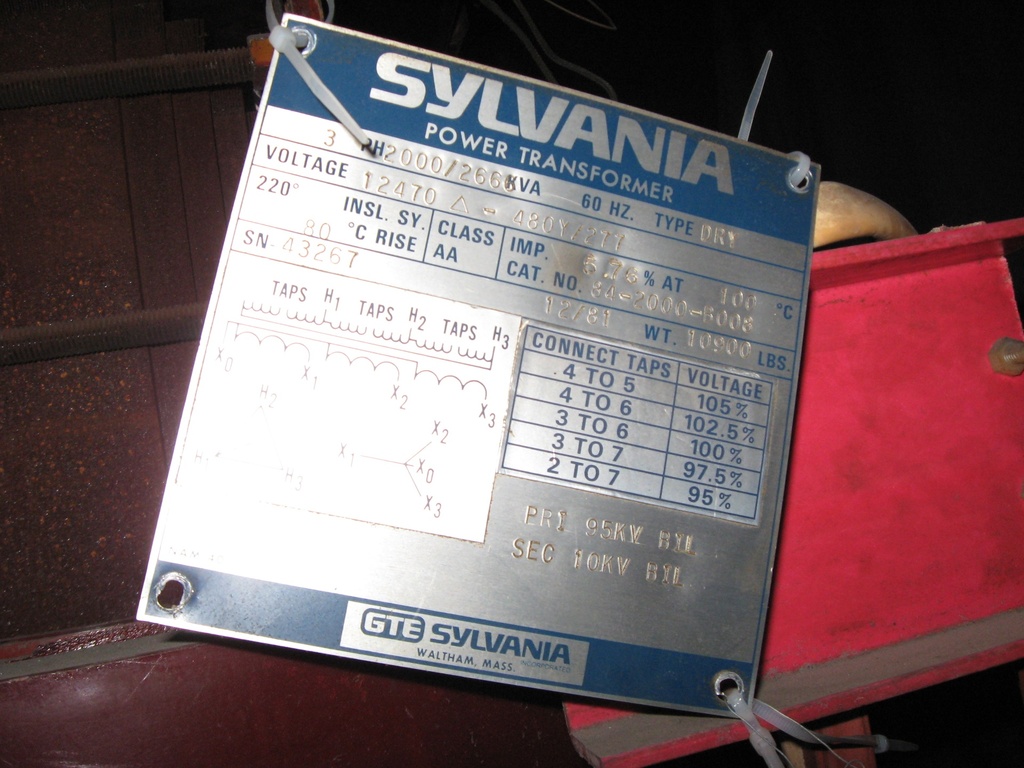

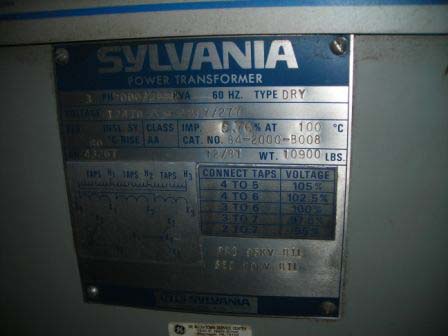

ONE (1) 2000/2666 KVA SYLVANIA CAST COIL, INDOOR, DRY TYPE TRANSFORMER, CLASS
AA/FA, 3 PHASE, 60 HERTZ, ALUMINUM CONDUCTORS, 80 DEG. C RISE, 5.76%
IMPEDANCE, S/N 43267, TEMPERATURE GAUGE WITH CONTACTS, FANS
HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TAPS: 13094-12782-12470-12158-11847
TOTAL WEIGHT: 10,900 LBS.

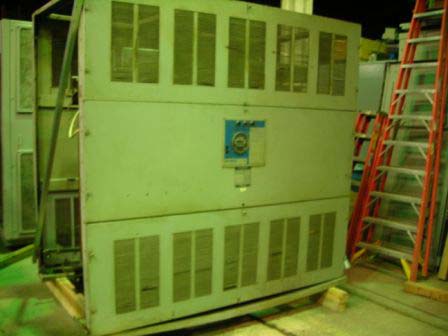

DIMENSIONS: 92"H X 62"W X 96"D

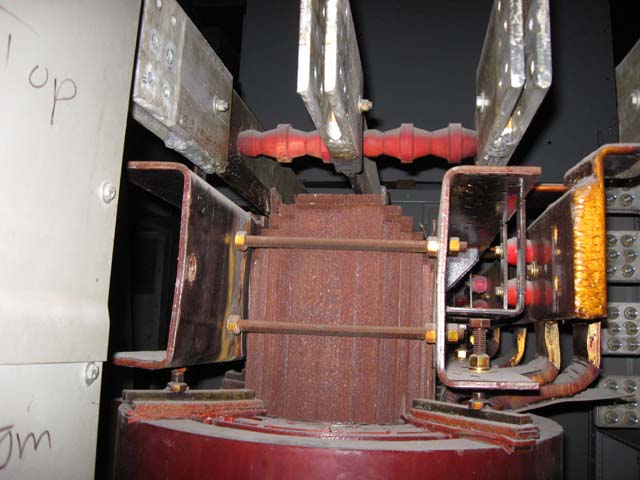

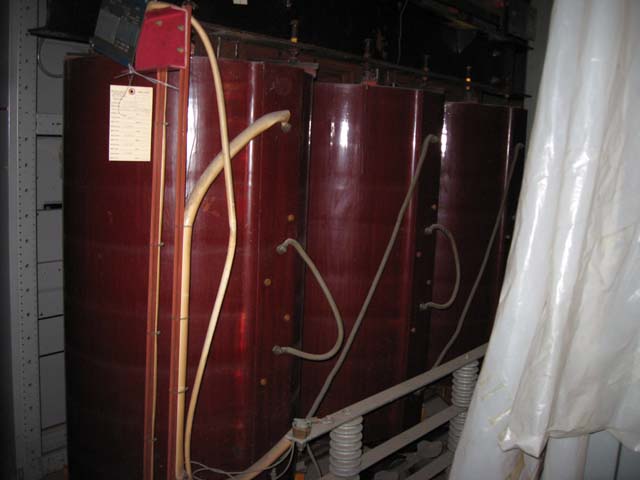

CORE & COILS: 80"H X 30"W X 85"D
HV BUSS: 27"H
LV BUSS: 27"H
