  2. 2000 Amp, WESTINGHOUSE, 150VCP-W-750, 15 KV,48 VDC CLOSE & TRIP

2000 Amp, WESTINGHOUSE, 150VCP-W-750, 15 KV,48 VDC CLOSE & TRIP

https://belyeapower.redstormlabs.com/web/image/product.template/23241/image_1920?unique=c845619

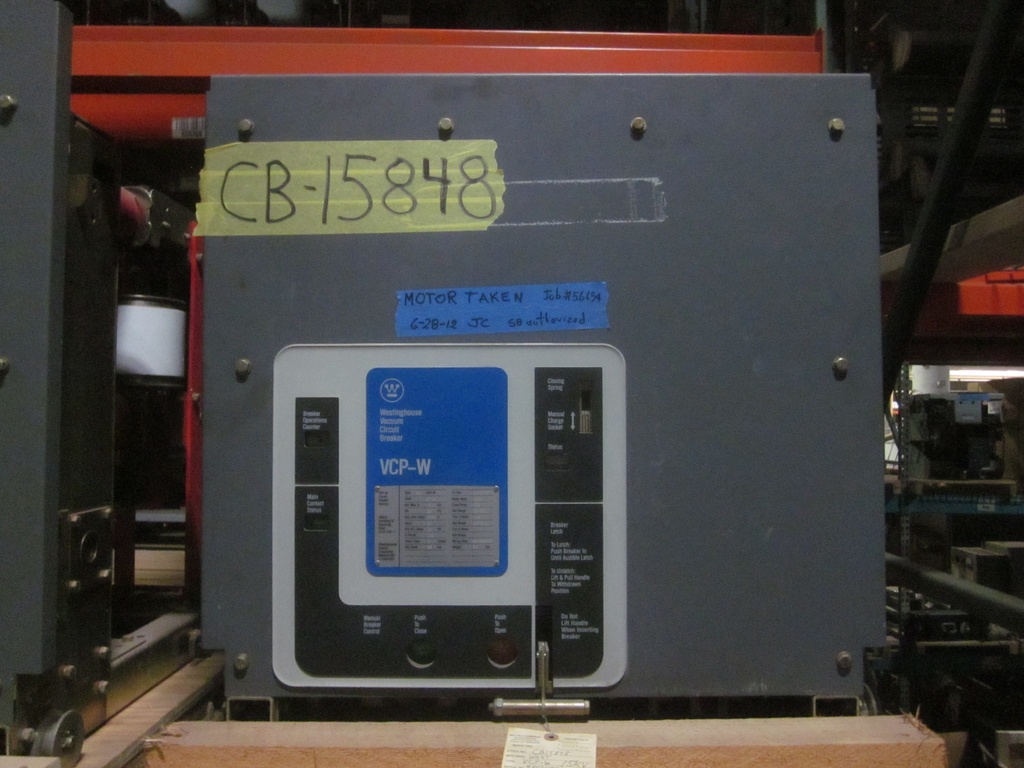

WESTINGHOUSE VACUUM CIRCUIT BREAKER

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 033518
    Request Quote

    Full Product Description

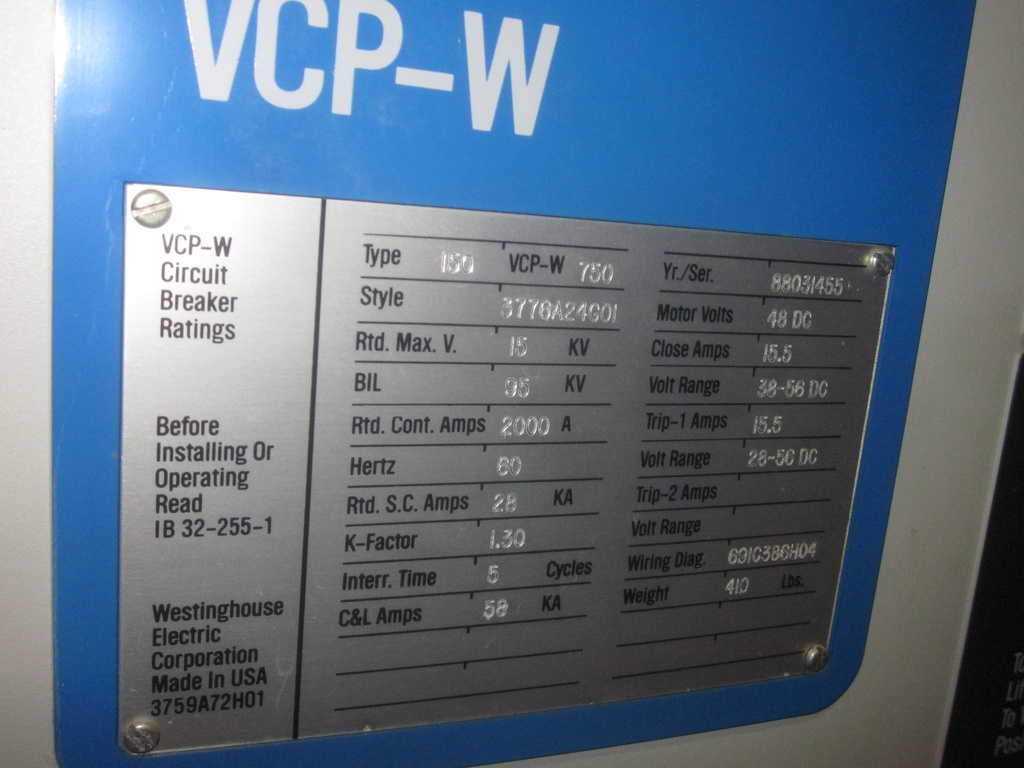

    ONE (1) - 2000 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER

    TYPE 150VCP-W-750
    SYTLE 3776A24G01
    15 KV MAX
    60 HERTZ
    95 KV BIL
    5 CYCLE INTERRUPT
    28 KA SHORT CIRCUIT
    1.30 VOLTAGE K FACTOR
    58 KA CLOSE & LATCH
    48 VDC CLOSE & TRIP
    48 MOTOR VOLTS
    CONNECTION DIAGRAM 691C386H04
    750 MVA INTERRUPT
    IB: 32-255-1
    DRAWOUT
    ELECTRICALLY OPERATED
