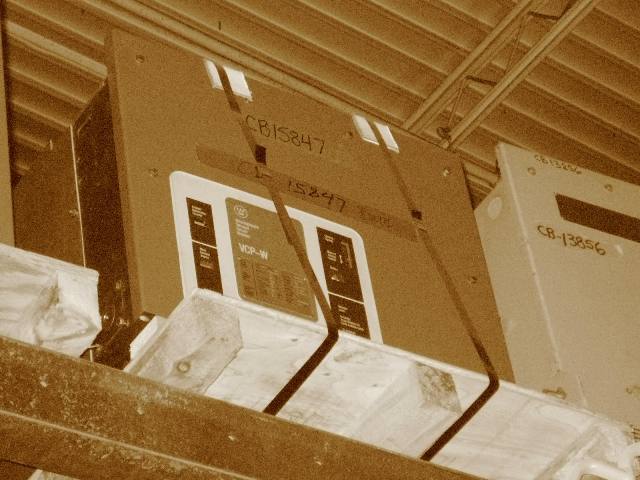

2000 Amp, WESTINGHOUSE, 150VCP-W-750, 15 KV,125VDC CLOSE, 48VDC TRIP
WESTINGHOUSE VACUUM CIRCUIT BREAKER
Product Number:
033517
Full Product Description
ONE (1) - 2000 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER
TYPE 150VCP-W750
15 KV MAX
60 HERTZ
95 KV BIL
5 CYCLES INTERRUPTER
28 SHORT CIRCUIT
1.30 VOLTAGE K FACTOR
48 VDC TRIP
125VDC CLOSE THROUGH RECTIFIER
CONNECTION DIAGRAM 691C386H04
750 MVA INTERRUPT
STYLE 3776A24G01
DRAWOUT
ELECTRICALLY OPERATED
TYPE 150VCP-W750
15 KV MAX
60 HERTZ
95 KV BIL
5 CYCLES INTERRUPTER
28 SHORT CIRCUIT
1.30 VOLTAGE K FACTOR
48 VDC TRIP
125VDC CLOSE THROUGH RECTIFIER
CONNECTION DIAGRAM 691C386H04
750 MVA INTERRUPT
STYLE 3776A24G01
DRAWOUT
ELECTRICALLY OPERATED
