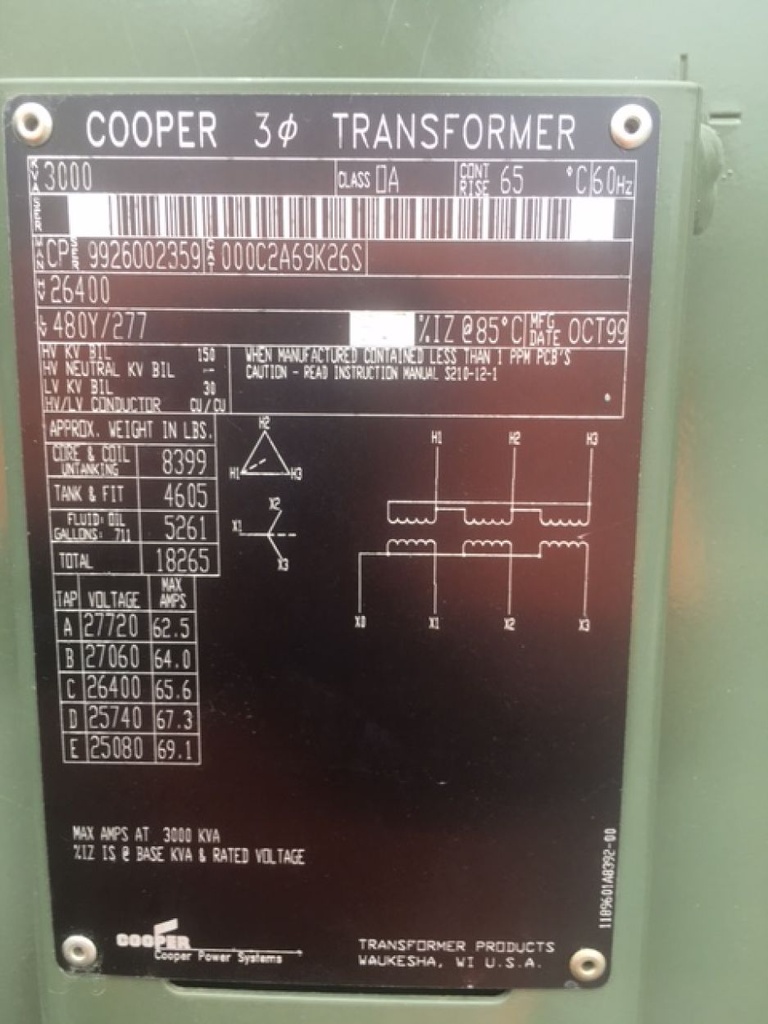

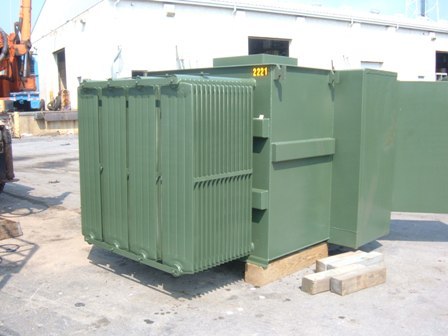

3000 KVA, Pri 26400 D, Sec 480Y/277, COOPER, PADMOUNT, DEAD FRONT
PADMOUNT TRANSFORMER
Product Number:
033335
Full Product Description
STOCK #T-2920

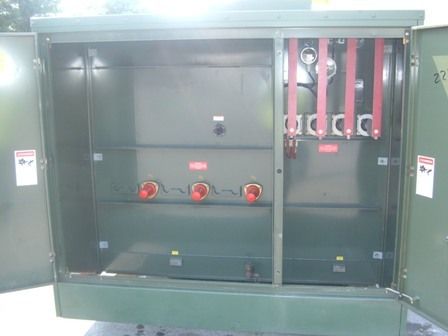

ONE (1) 3000 KVA COOPER COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE, 60
HERTZ, 65 DEG. C RISE, 6.7% IMPEDANCE, CLASS OA, DEAD FRONT
HIGH VOLTAGE: 26400 DELTA BIL: 150 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 27720-27060-26400-25740-25080
TOTAL WEIGHT: 18,265 LBS.
UNTANKING: 8,399 LBS.
TANK & FITTINGS: 4,605 LBS.
OIL: 711 GALS. 5,688 LBS.
DIMENSIONS: 72 1/2"H X 84 3/4"W X 110 3/4"D
