Full Product Description

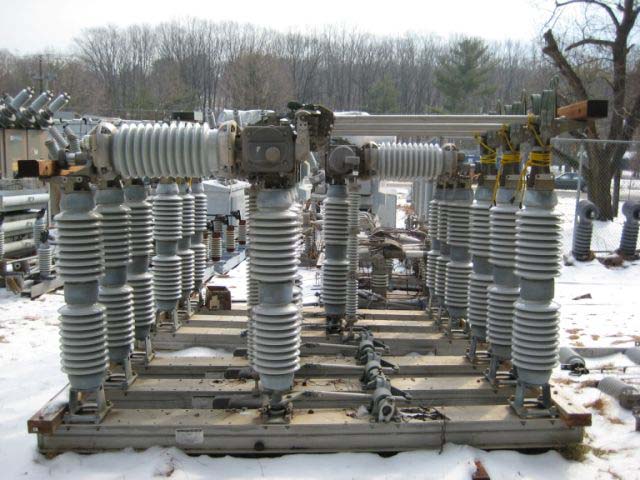

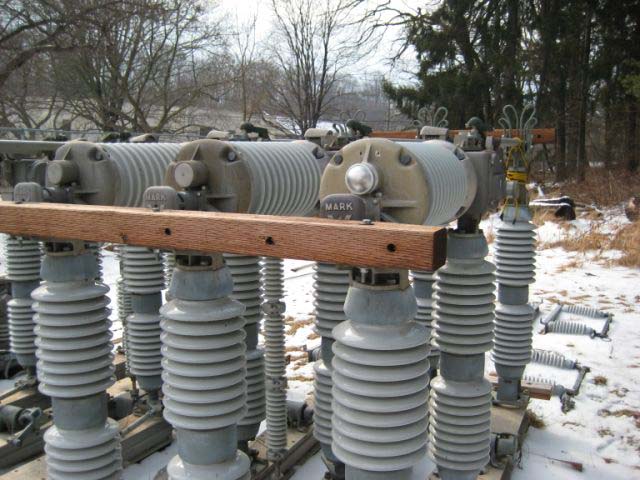

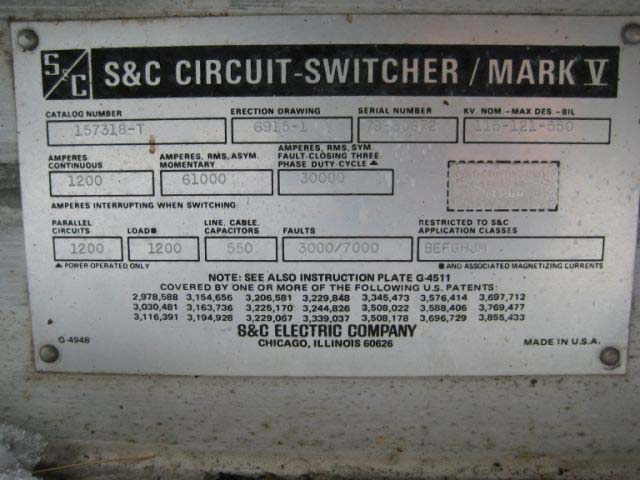

ONE (1) - S&C CIRCUIT SWITCHER
- 1200A
115 NOM
- 121 MAX KV
- TYPE MARK V (CAT# 157318)
- HORIZONTAL MOUNT
- PEDESTAL MOUNTED
- 61000 AMP RMS FAULT & CLOSING
- 30000 AMP INTERRUPTING WHEN SWITCHING

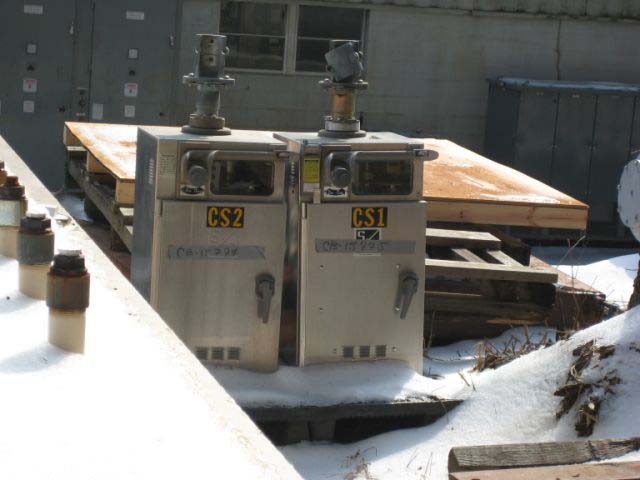

- CS-1A MECHANISM
- 48 VDC - S&C - CS1A MOTOR OPERATED
SHIPPING DIMENSIONS: 85 3/4"H x 128"L x 72"W
WEIGHT: 1145 LBS.
