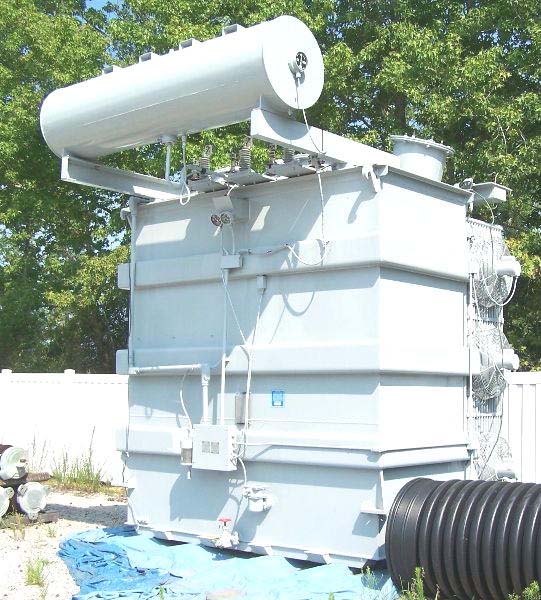

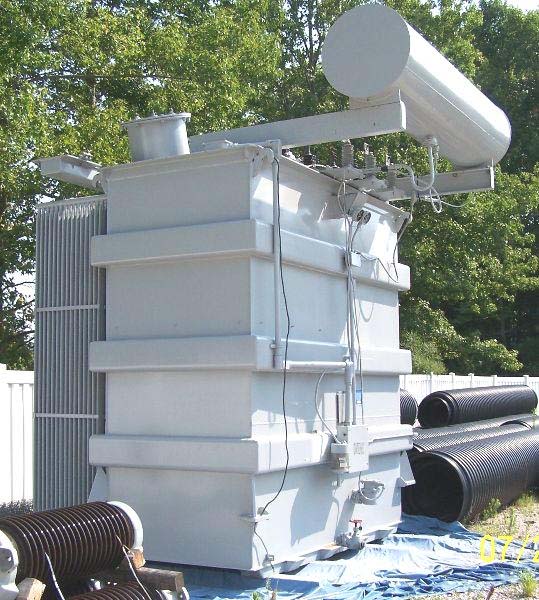

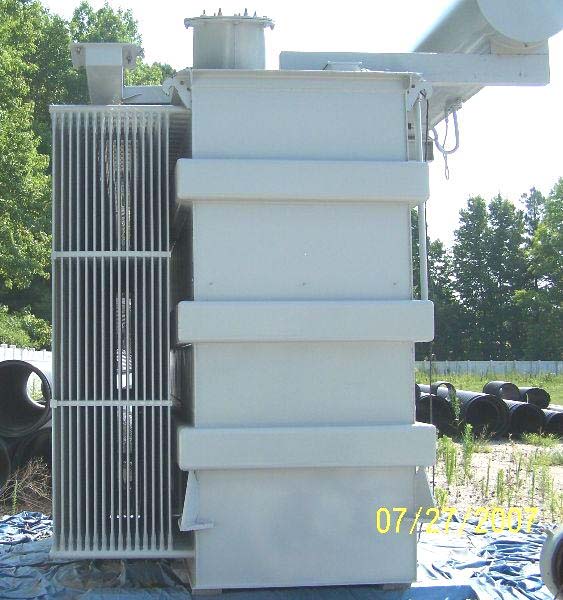

7500/10500 KVA, Pri 115000 D, Sec 13800Y/7970, GENERAL ELECTRIC, CONSERVATOR
CONSERVATOR TYPE TRANSFORMER
Product Number:
033267
Full Product Description
STOCK G-133
ONE (1) 7500/8400/9375/10500 KVA GENERAL ELECTRIC TRANSFORMER, 3 PHASE, 60
HERTZ, CONSERVATOR TYPE, 55/65 DEG. C RISE, CLASS OA/FFA, 8.2%
IMPEDANCE, FANS AND FAN CONTROL, DRAIN AND SAMPLE VALVE, DIAL TYPE
THERMOMETER WITH CONTACTS, LIQUID LEVEL GAUGE WITH CONTACTS, PRESSURE
RELIEF DEVICE WITH CONTACTS, HV AND LV ARRESTERS BRACKETS, HV AND LV
ARRESTERS, WINDING TEMPERATURE INDICATOR, SUDDEN PRESSURE RELAY,
AUXILIARY CONTROL CABINET, GE TYPE J FAULT PRESSURE RELAY, HV TOP ANSI
3 EXPOSED, LV TOP ANSI 1 EXPOSED, 3 X 600:5 HV MRCT'S, S/N E691306,
HIGH VOLTAGE: 115000 DELTA BIL: 550 KV
LOW VOLTAGE: 13800Y/7970 BIL: 110 KV
TAPS: 121270-118140-115000-111860-108730
TOTAL WEIGHT: 66,950 LBS.
CORE & COILS: 25,000 LBS.
TANK & FITTINGS: 18,850 LBS.
OIL: 3105 GALS. 23,100 LBS.
DIMENSIONS: 151"H X 137"W X 102"D
LV BUSHING: 151"H
