15000/16800/20000/22400 KVA, Pri 34500 D, Sec 12470Y/7200, HK PORTER, LTC

STOCK #'S G-125

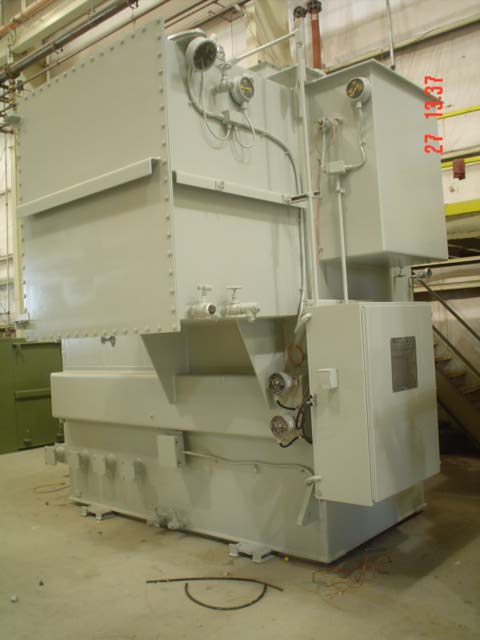

ONE (1) 15/16.8/20/22.4 MVA HK PORTER LOAD TAP CHANGING TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 7.3% IMPEDANCE, TOP MOUNTED
BUSHINGS, LOAD TAP CHANGING, PLUS 10% REGULATION N.L., ALL COPPER
WINDINGS, SIEMENS-ALLIS TLH-21 LTC WITH A BECKWITH CONTROLLER

HV: 34500 DELTA BIL: 200 KV
LV: 12470Y/7200 BIL: 110 KV
LV NEUTRAL: BIL: 110 KV
TAPS: 2+/- 2-1/2%
LOAD TAP CHANGING: +/- 10%

TOTAL WEIGHT: 115,300 LBS.
CORE & COIL: 62,300 LBS.
TANK & FITTINGS: 22,700 LBS.
OIL RADIATORS: 2,250 LBS., 300 GALS.
OIL MAIN TANK: 22,800 LBS., 3050 GALS.
OIL LTC TANK: 5,250 LBS., 700 GALS.

DIMENSIONS: 268"H X 162.5"L X 160"W
