4000/5000 KVA, Pri 34500 D, Sec 600 D, SQUARE D, SUBSTATION - 1

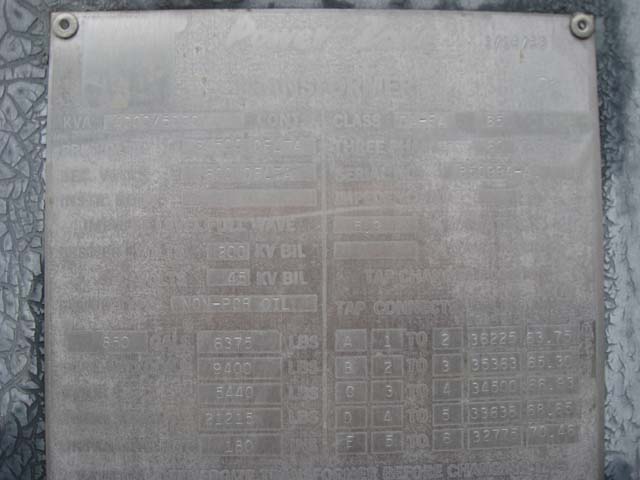

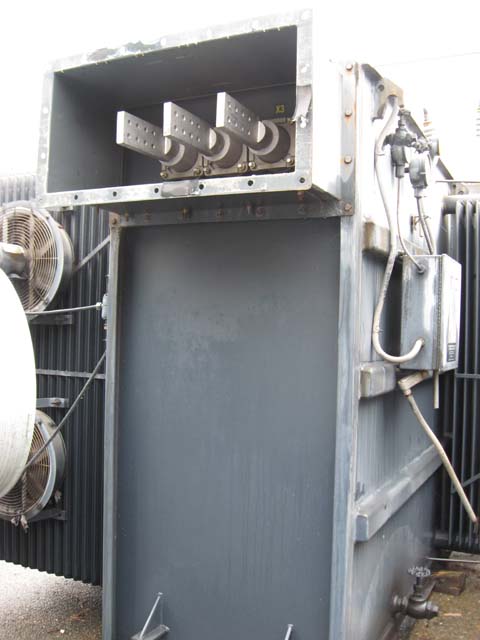

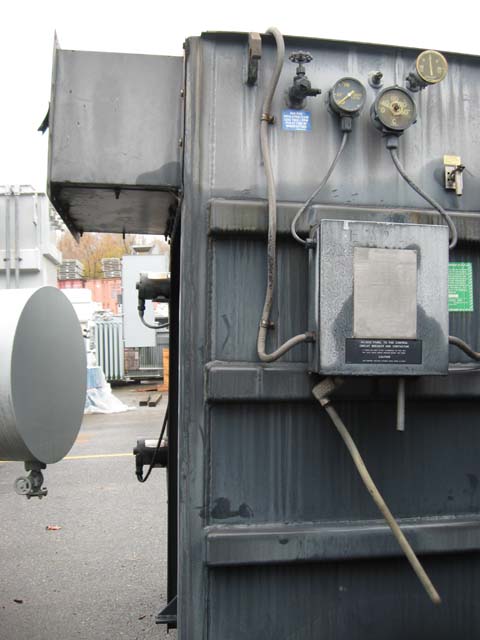

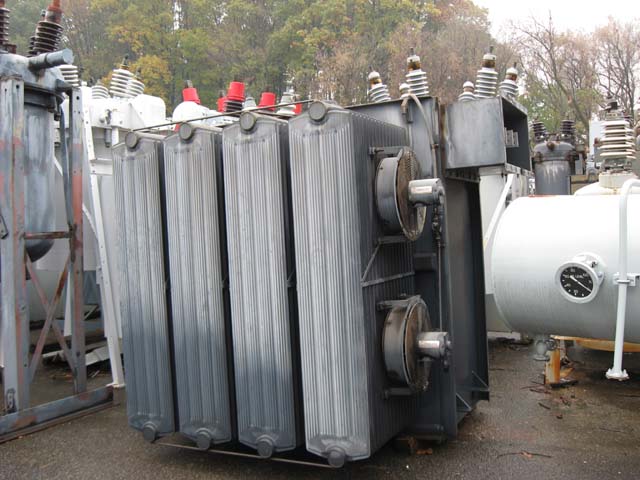

ONE (1) 4000/5000 KVA SQUARE D SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FA, 5.9% IMPEDANCE, 65 DEG. C RISE, HV BUSHINGS ARE FLANGE X
FLANGE, LV BUSHINGS ARE THROAT, S/N 850994-A1, 2 FANS, 208/230

HV: 34500 DELTA BIL: 200 KV
LV: 600 DELTA BIL: 45 KV

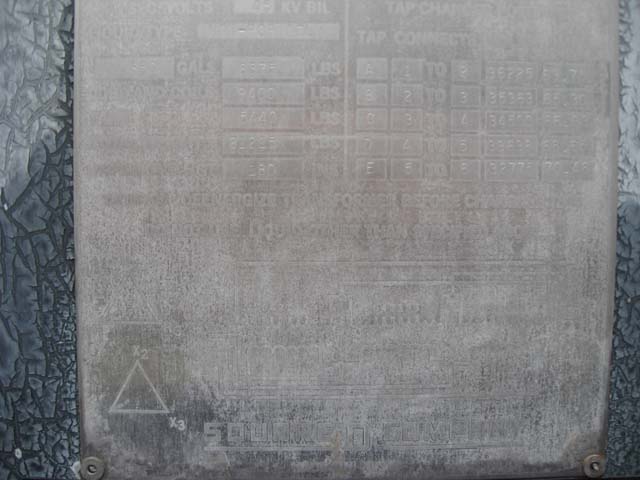

TAPS: 36225-35363-34500-33638-32775

TOTAL WEIGHT: 21,215 LBS.
CORE & COILS: 9,400 LBS.
TANK & FIT: 5,440 LBS.
OIL: 850 GAL.: 6,375 LBS.
DIMENSIONS: 7'10"H X 9'6"W X 9'8"D
BASE: 42" LV SIDE
59" HV SIDE
77" NAMEPLATE AND OPPOSITE SIDE
