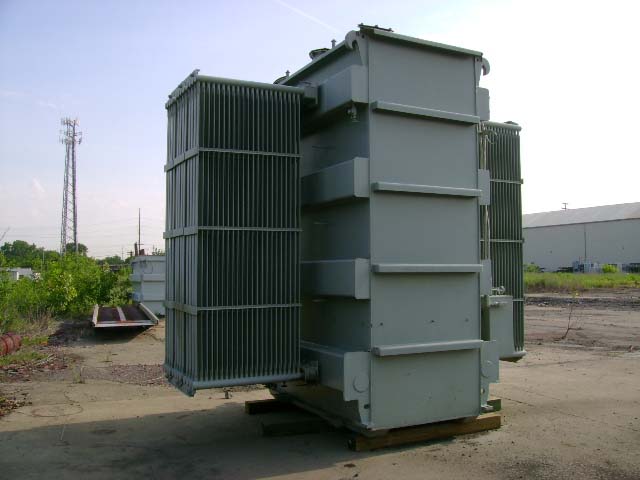

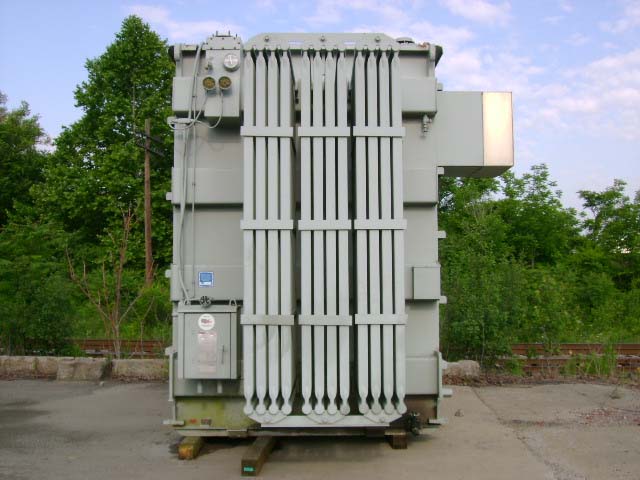

12000/13440 KVA, Pri 138000 D, Sec 6900Y/3983, GE, SUBSTATION: 1

STOCK #G-114

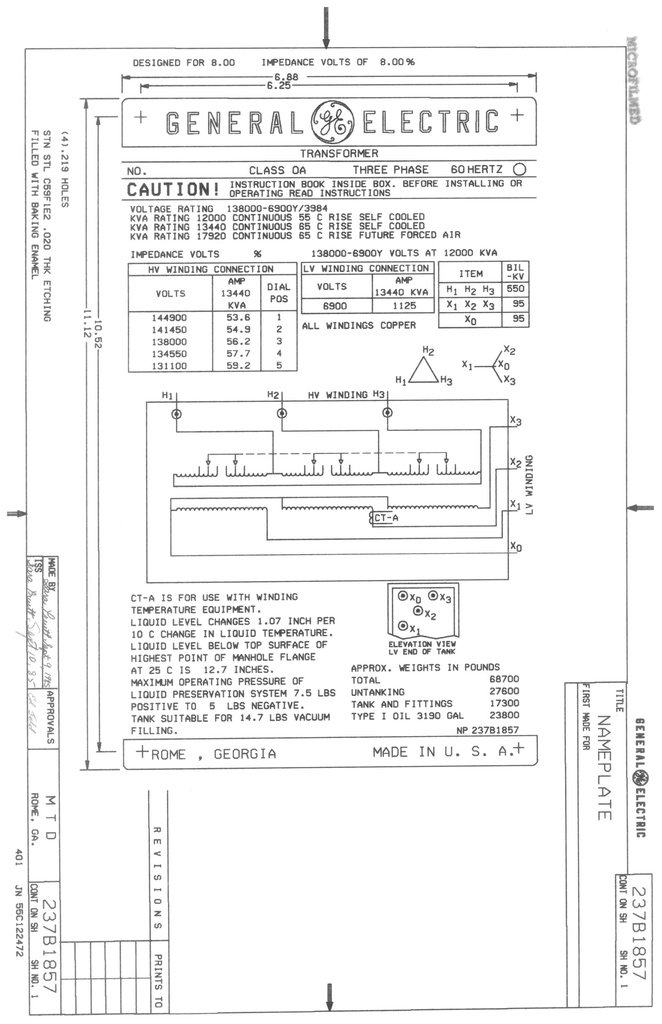

ONE (1) 12000/13440 KVA, GE, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ
CLASS OA, 55/65 DEGREES C RISE, TOP MOUNTED HV BUSHINGS, SIDE
MOUNTED LV BUSHINGS, 8.14% IMPEDANCE, COPPER WINDINGS, DRAIN AND
SAMPLE VALVE, DIAL-TYPE THERMOMETER WITH CONTACTS, LIQUID LEVEL
GAUGE, PRESSURE VACUUM GAUGE, PRESSURE RELIEF DEVICE, HV ARRESTERS,
WINDING TEMPERATURE INDICATOR, AUXILIARY CONTROL CABINET

HIGH VOLTAGE: 138000 DELTA BIL: 550 KV
LOW VOLTAGE: 6900Y/3983 BIL: 95 KV
WITH TAPS AT 144900-141450-138000-134550-131100

TOTAL WEIGHT: 68,700 LBS.
OIL: 3190 GALLONS

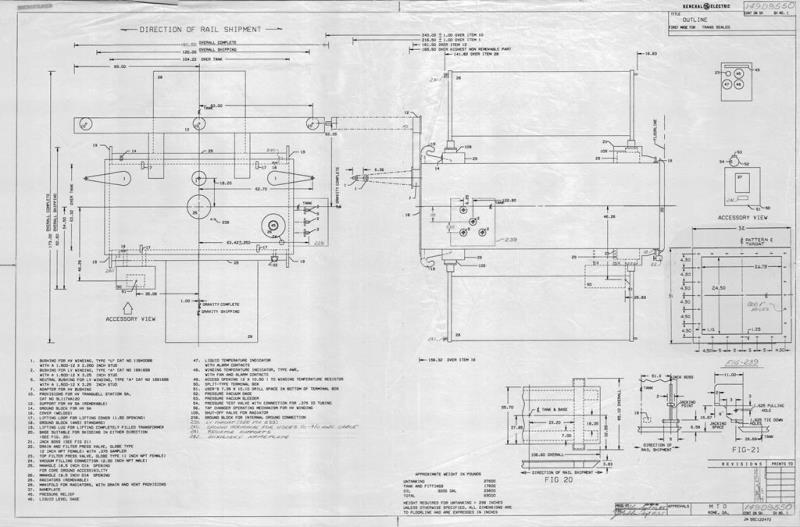

DIMENSIONS: 164"H X 174"W X 125"D
FOOTPRINT: 104"W X 66"D
RADIATOR (FRONT): 53"D
RADIATOR (BACK): 53"D
HV BUSHING: 216"H
LV BUSHING: 125"
