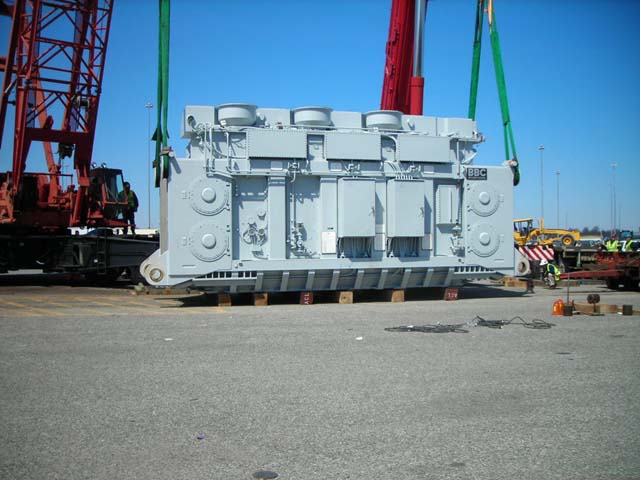

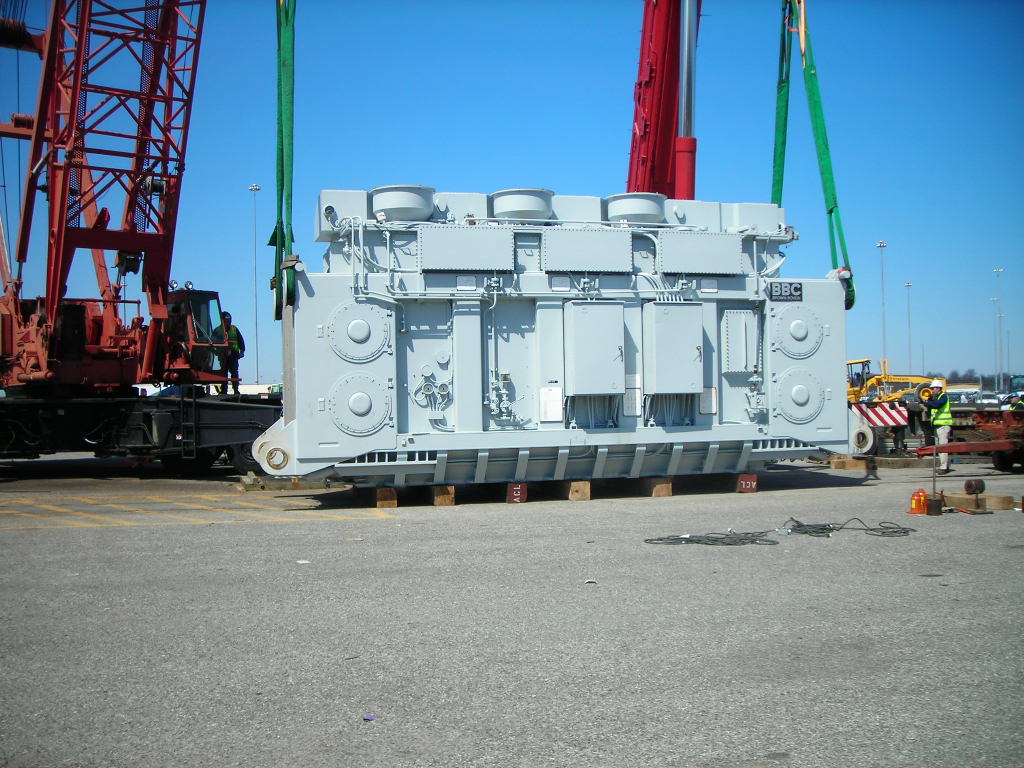

427000 KVA, BBC, 236000 Y, 22000 D, CLASS FOA, MOBILE GSU

STOCK #JVT-3614

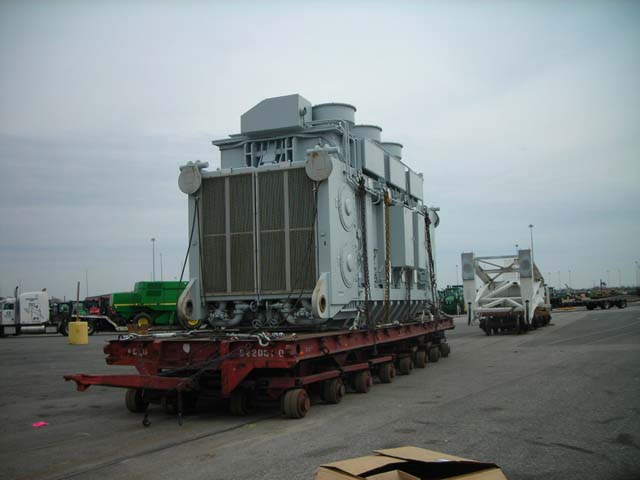

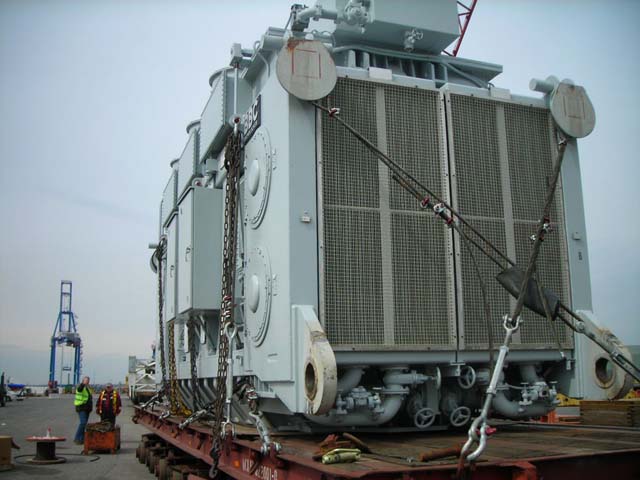

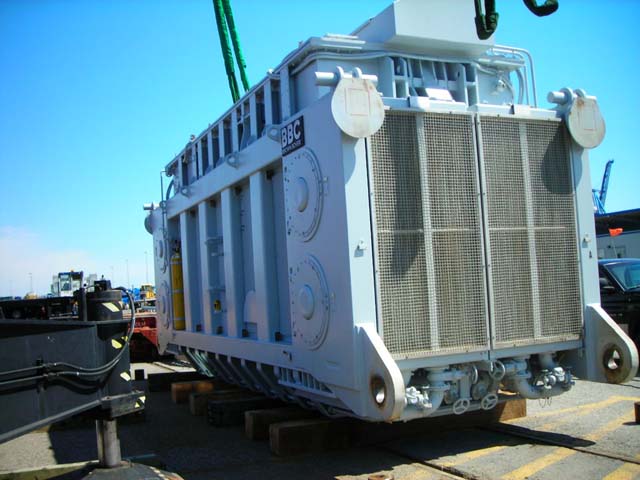

ONE (1) 427 MVA BBC MOBILE GENERATOR STEP UP TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS FOA, 65 DEGREE C RISE, 17% IMPEDANCE, COPPER WINDINGS, DRAIN
AND SAMPLE VALVE, DIAL TYPE THERMOMETER WITH CONTACTS, LIQUID LEVEL
GAUGE WITH CONTACTS, PRESSURE RELIEF DEVICE WITH CONTACTS, WINDING
TEMPERATURE INDICATOR, HV ARRESTERS BRACKET, SUDDEN PRESSURE RELAY,
AUXILIARY CONTROL CABINET, FANS, COPPER WINDINGS

HIGH VOLTAGE: 230,000Y/132790 BIL: 650 KV
LOW VOLTAGE: 22,000 - 13800 DELTA BIL: 150 KV
TAPS: 13800-15500-17500-18000-19000-20000-21000-22000-23000-24000

TOTAL WEIGHT: 482,800 LBS.
CORE & COILS: 304,200 LBS.
TANK & FITTINGS: 92,600 LBS.
OIL: 11450 GALLONS 86,000 LBS.
DIMENSIONS: 233"H X 398"W X 189"D
HV BUSHING: 233"H
LV BUSHING: 175"H
FOOTPRINT: 270"W X 81"D
