Full Product Description
STOCK #B-13224A:

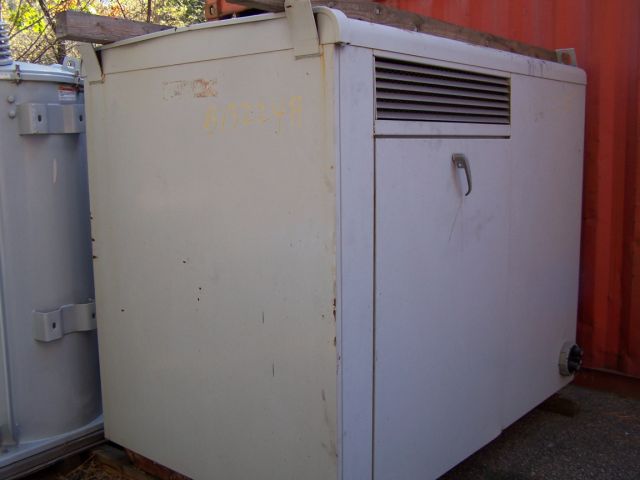

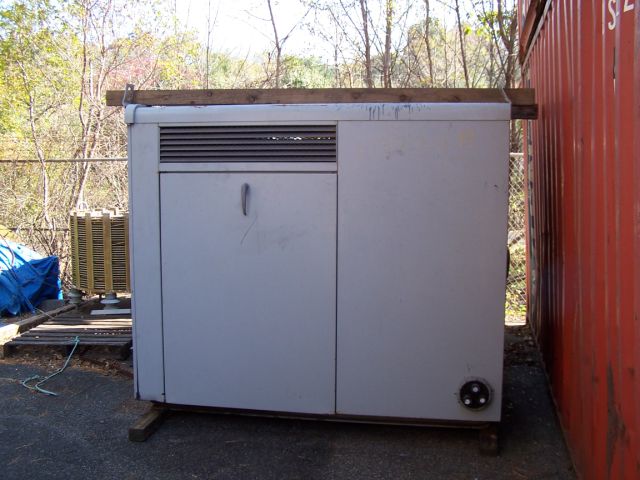

ONE (1) 2400 KVAR, 13800/7970, WESTINGHOUSE, OUTDOOR HOUSED, 3 PHASE,

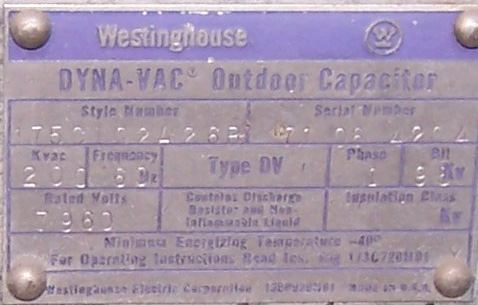

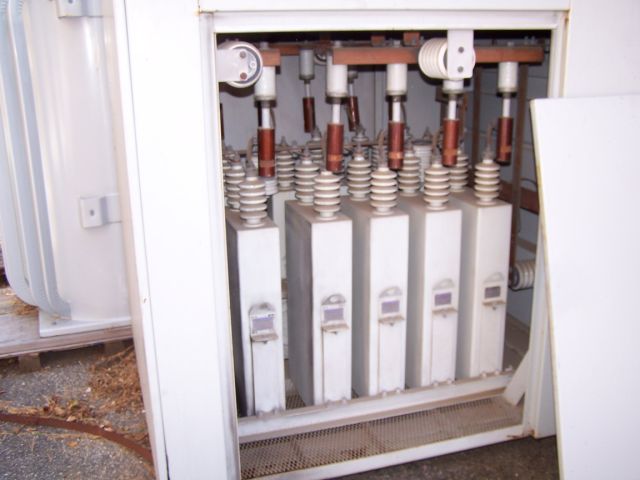

CAPACITOR BANK, WITH 12 - 200 KVAR, FUSED, SINGLE PHASE, FILM VAR,
95 KV BIL, CAPACITORS, 2.6 GALLONS OF WEMCO FLUID PER CAPACITOR,
MFG. 1988, STYLE 11105200A146, WITH GROUNDING SWITCH & 3 PHASE,

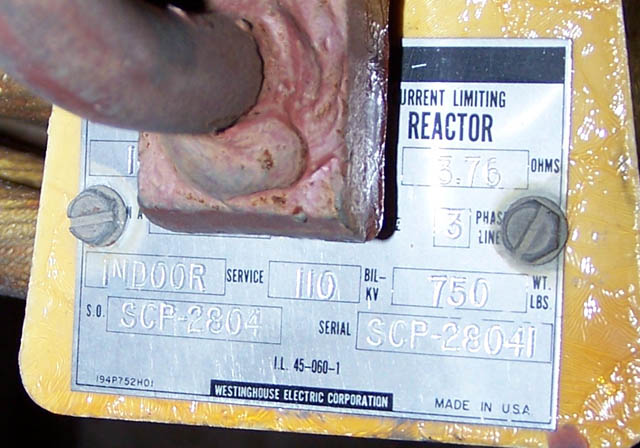

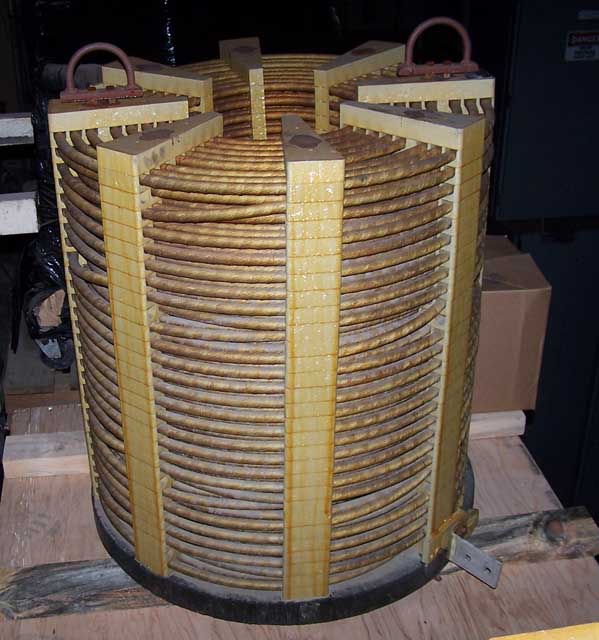

CURRENT LIMITING REACTOR, 38 KVA, 12600 VAC, 3.75 OHMS, 110 KV BIL,
3015 LBS. 100 AMP, SERIAL #SCP-28042
DIMENSIONS: 70"H X 54"D X 84"W
ONE (1) 2400 KVAR, 13800/7970, WESTINGHOUSE, OUTDOOR HOUSED, 3 PHASE,
CAPACITOR BANK, WITH 12 - 200 KVAR, FUSED, SINGLE PHASE, FILM VAR,
95 KV BIL, CAPACITORS, 2.6 GALLONS OF WEMCO FLUID PER CAPACITOR,
MFG. 1988, STYLE 11105200A146, WITH GROUNDING SWITCH & 3 PHASE,
CURRENT LIMITING REACTOR, 38 KVA, 12600 VAC, 3.75 OHMS, 110 KV BIL,
3015 LBS. 100 AMP, SERIAL #SCP-28042
DIMENSIONS: 70"H X 54"D X 84"W
