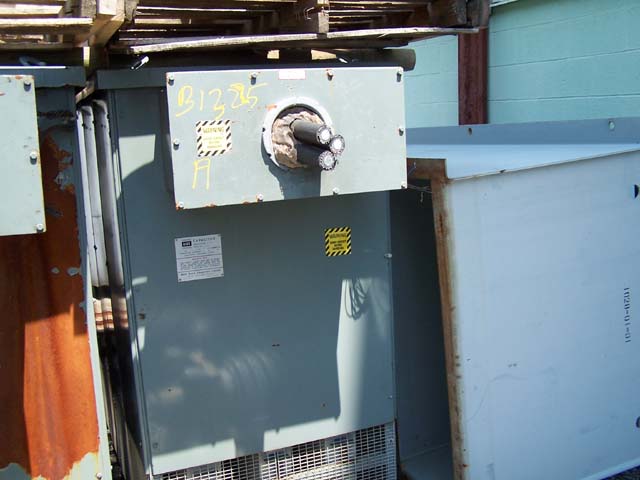

2261 KVAR, GENERAL ELECTRIC, 13110 V, CAP BANK, FUSED, 15 X 150.7 KVAR, OUTDOOR
CAPACITOR BANK
Product Number:
032155
Full Product Description
STOCK #B-13226, A, B, & C
2261 KVAR GENERAL ELECTRIC CAPACITORS
COMPRISED OF 15 X 150.7 KVAR GE CAPACITORS
2 BUSHING FUSED WITH 100 AMP CL FUSES MANUFACTURED BY BRUSH
15 KV OFNBZB 12/86
GE FLUID NON-PCB DIEKTROL IV
WITH TRENCH ELECTRIC HARMONIC FILM REACTORS (DWG. 1-5590, SER. 3319-1-6)
MANUFACTURED 1979
RATED INDUCTANCE 9.96 MH
MEASURED INDUCTANCE 10.0 MH 3KA
3 SEC. 12470V. 95 KV BIL 80 DEG. C
365 # STACKED 3 HIGH 120 AMP
2 LOAD INTERRUPTING SWITCHES WITH GROUND SWITCH
3 POLE BUILT BY ED DEWHURST
15KV/24 KV TYPE A 35 KAIC DWG. CK3479
2 X 150 AMP AMMETER WITH SW
150 AMP CT'S
5'D X 79"W X 114"H
66"H X 36"D X 101"L
REAR ENTRY TOP EXIT
