1200 Amp, GE, VB1-13.8-750-3, 13.8 KV, 1997, E/O, D/O, 125 VDC CLOSE & TRIP: -1

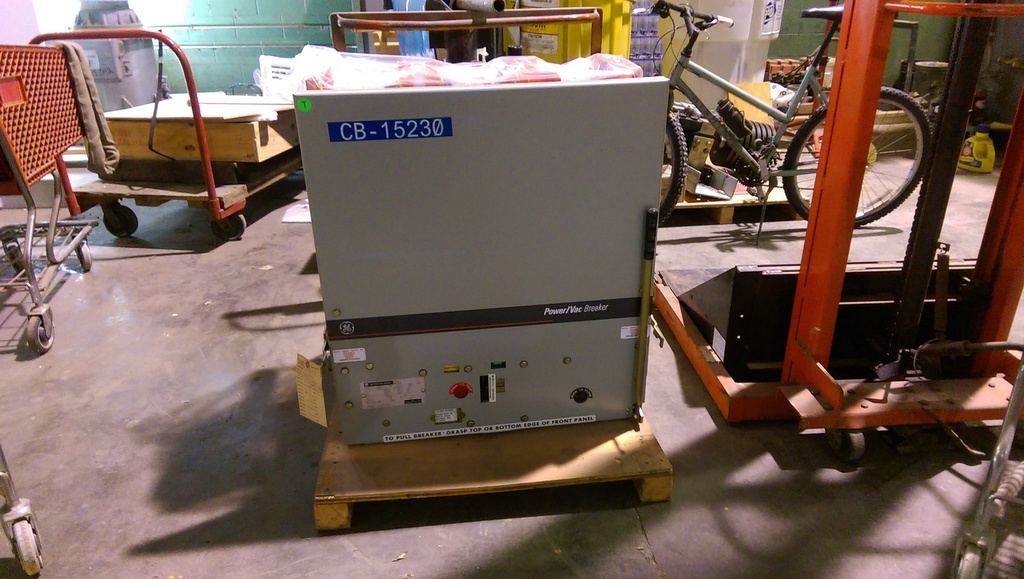

STOCK #CB-15230:

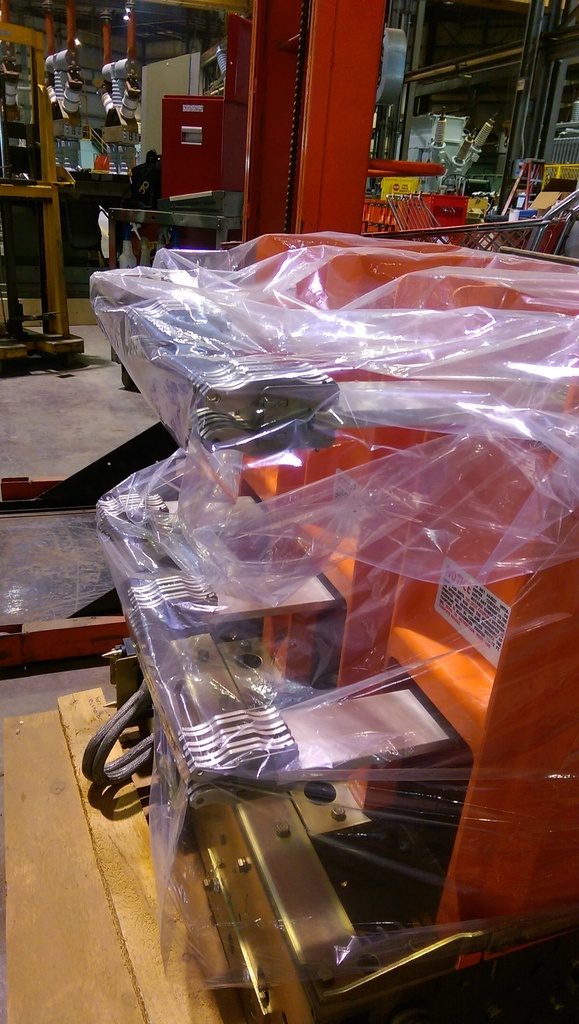

ONE (1)- 1200 AMP GE VACUUM CIRCUIT BREAKER

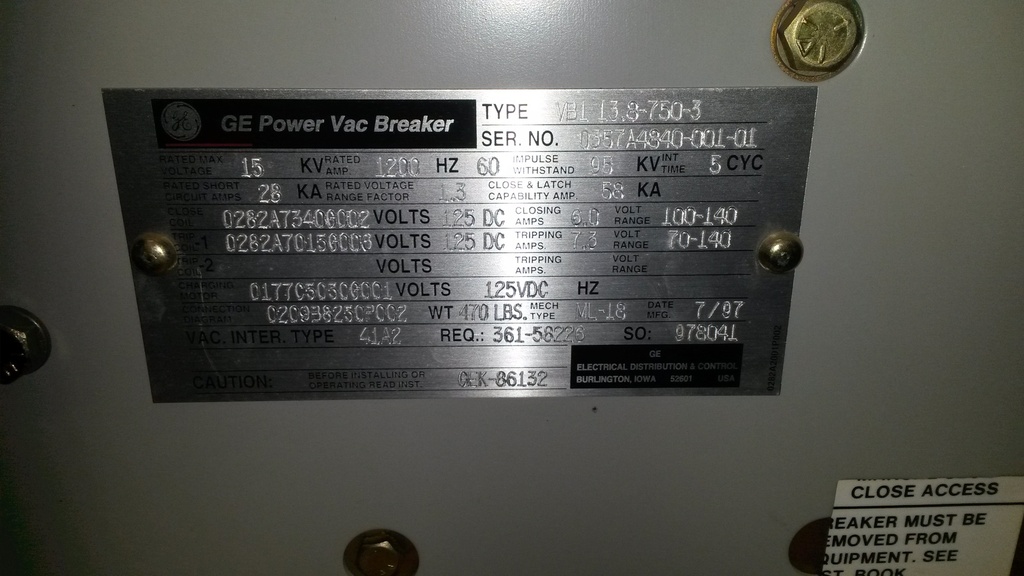

TYPE VB1-13.8-750-3
13.8 KV
15 MAX KV
750 MVA I.C.
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
28 SHORT CIRCUIT
1.3 VOLTAGE K FACTOR
58 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
CLOSING COIL #O282A7340G002
CHARGING MOTOR #0177C505G001, 125 VDC
TRIP COIL -1: 0282A7015G006
CONNECTION DIAGRAM: 0209B8250P002

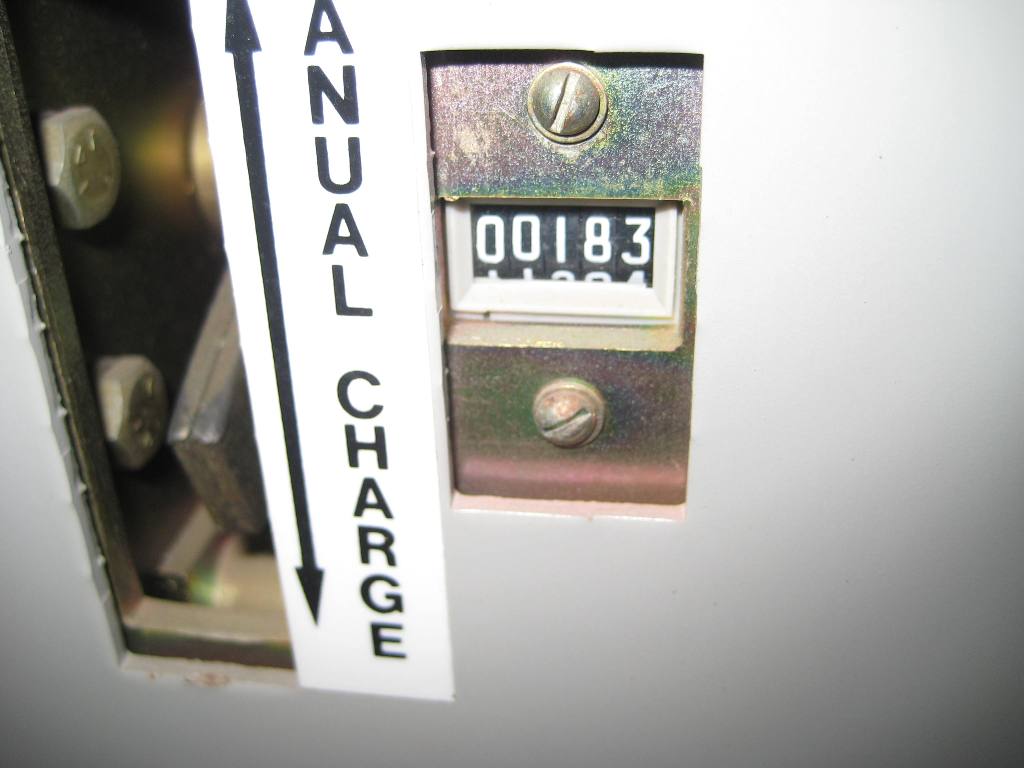

ML-18 SPRING CHARGED OPERATING MECHANISM
ELECTRICALLY OPERATED
DRAWOUT
WIRING DIAGRAM #0209B8250P002
INTERRUPTER TYPE 41A2
