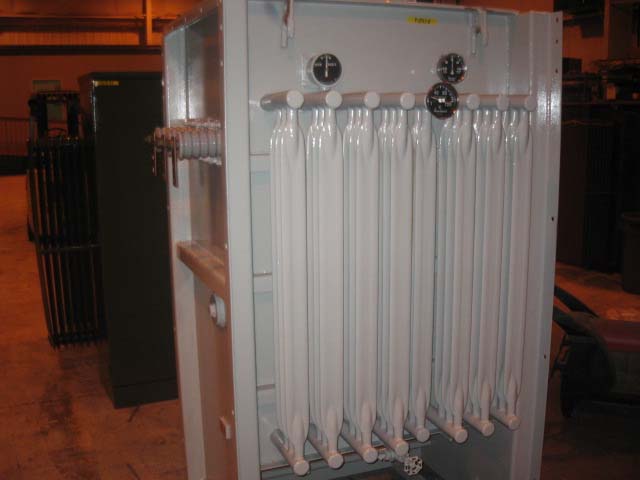

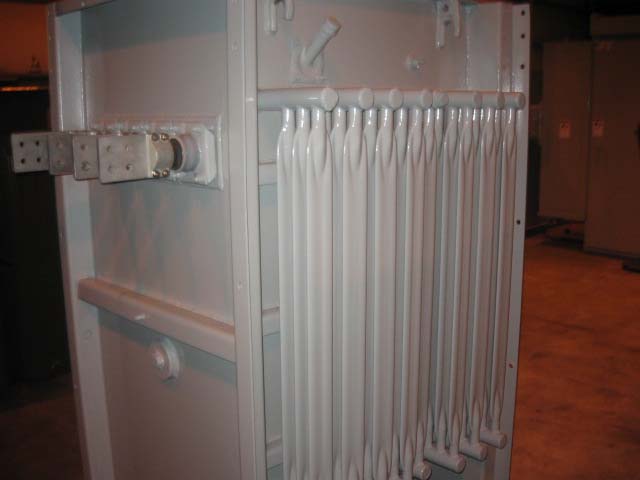

500 KVA, GE, 13200 V D, 480 V Y, SUBSTATION, 65 DEG. C: -1

STOCK #T-2712:

ONE (1) 500 KVA, GE, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ., CLASS OA, 65
DEGREES C RISE, COPPER WINDINGS, 5.95% IMPEDANCE, SILICONE, DRAIN
AND SAMPLE VALVE, DIAL-TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE
VACUUM GAUGE, PRESSURE RELIEF DEVICE

HIGH VOLTAGE: 13200 DELTA BIL: 95
LOW VOLTAGE: 480Y/277 BIL: 30

TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 4419 LBS.
CORE & COILS: 2249 LBS.
TANK & FIT,: 1100 LBS.
FLUID: 1070 LBS.
GALLONS: 134
DIMENSIONS: 83"H X 46"W X 50"D
