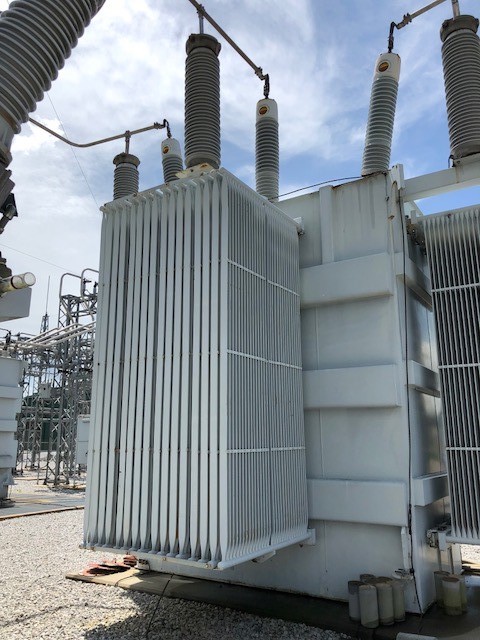

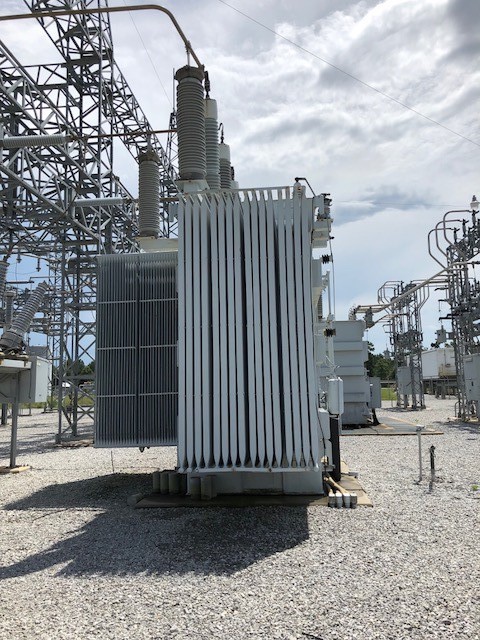

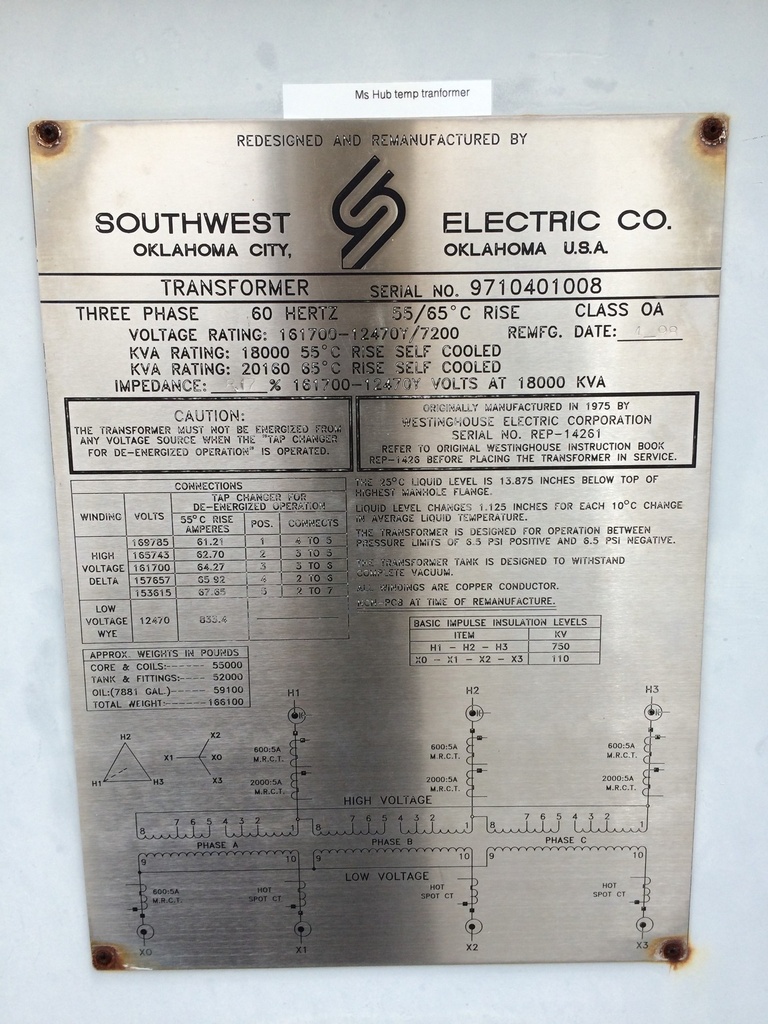

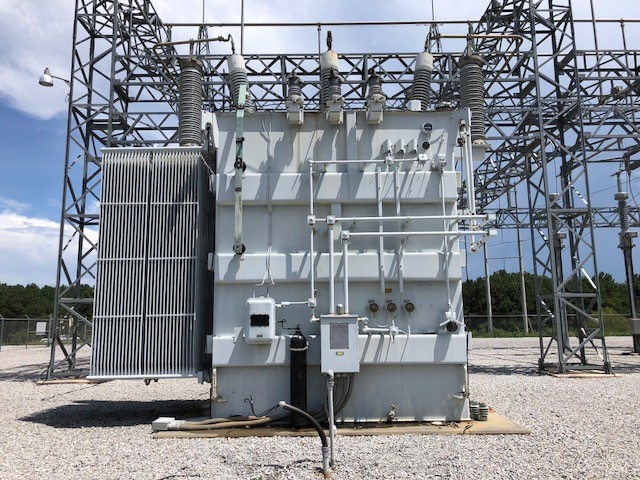

18/20.2 MVA, SOUTHWEST ELECTRIC, 161700 V D, 12470 V Y, 1997, CLASS OA, 55/65: -

ONE (1) 18000/20160 KVA, SOUTHWEST ELECTRIC, REMANUFACTURED, SUBSTATION TRANS-
FORMER, 3 PHASE, 60 HZ., CLASS OA, 55/65 DEGREES C RISE, COPPER WOUND
TOP MOUNTED BUSHINGS, ORIGINALLY MFG. BY WESTINGHOUSE IN 1975, WITH
3 - 2000:5 MULTIRATIO, AND 3 - 600:5 MULTIRATIO BUSHING CT'S ON THE
HIGH VOLTAGE BUSHINGS

HIGH VOLTAGE: 161,700 DELTA BIL: 750 KV
LOW VOLTAGE: 12470Y/7200 BIL: 110 KV

WITH TAPS AT 169785, 165743, 161700, 157657, 153615
TOTAL WEIGHT: 166,100 LBS.
CORE & COILS: 55,000 LBS.
TANK & FITTINGS: 52,000 LBS.
OIL: 7881 GALLONS 59,100 LBS.
