225 KVA, OLSUN, 208 V D, 480 V Y, 2001, UNUSED, INDOOR, DRY, UL LISTED: -1
UNUSED DRY TRANSFORMER
Product Number:
031807
Full Product Description
STOCK #T-5417:

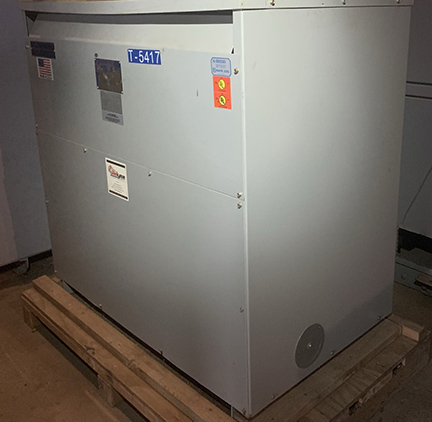

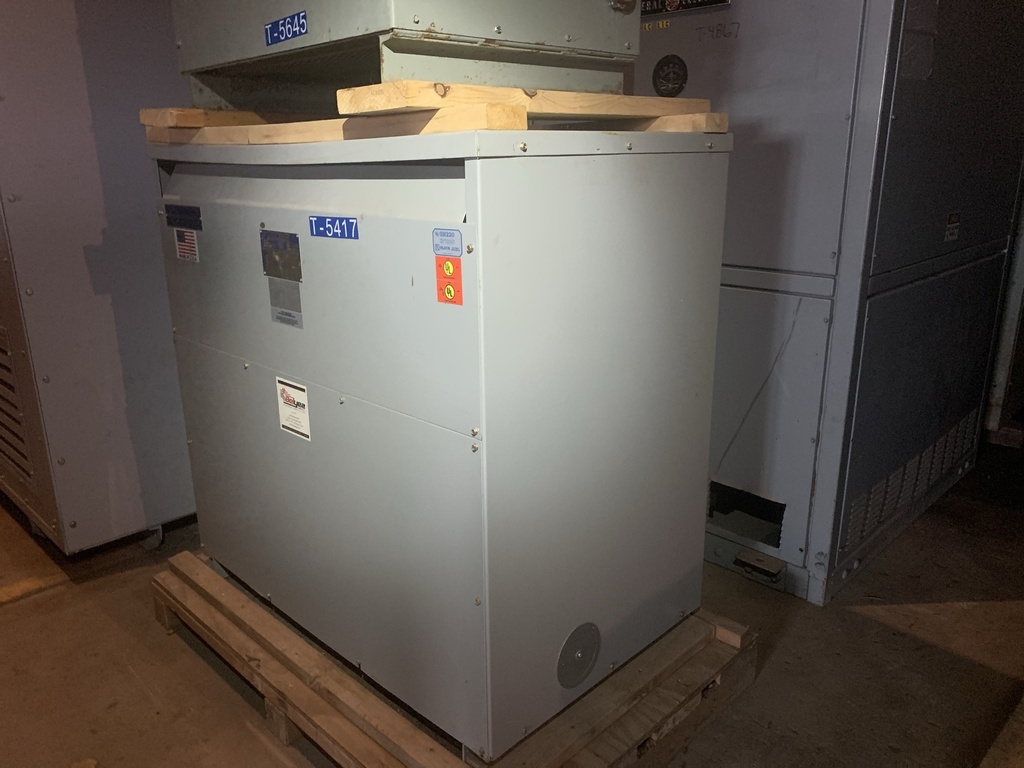

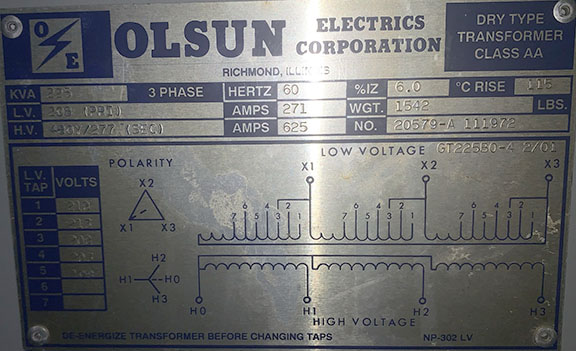

ONE (1) UNUSED, 225 KVA, OLSUN, INDOOR HOUSED, DRY TYPE DISTRIBUTION TRANSFOR-
MER, 3 PHASE, 60 HZ., CLASS AA, 115 DEGREES C RISE, 6.0% IMPEDANCE,
UL LISTED, IN NEMA 1 ENCLOSURE
PRIMARY VOLTAGE: 208 DELTA
SECONDARY VOLTAGE: 480Y/277
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 1,542 LBS.
DIMENSIONS: 48"H X 48"W X 29.5"D
ONE (1) UNUSED, 225 KVA, OLSUN, INDOOR HOUSED, DRY TYPE DISTRIBUTION TRANSFOR-
MER, 3 PHASE, 60 HZ., CLASS AA, 115 DEGREES C RISE, 6.0% IMPEDANCE,
UL LISTED, IN NEMA 1 ENCLOSURE
PRIMARY VOLTAGE: 208 DELTA
SECONDARY VOLTAGE: 480Y/277
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 1,542 LBS.
DIMENSIONS: 48"H X 48"W X 29.5"D
