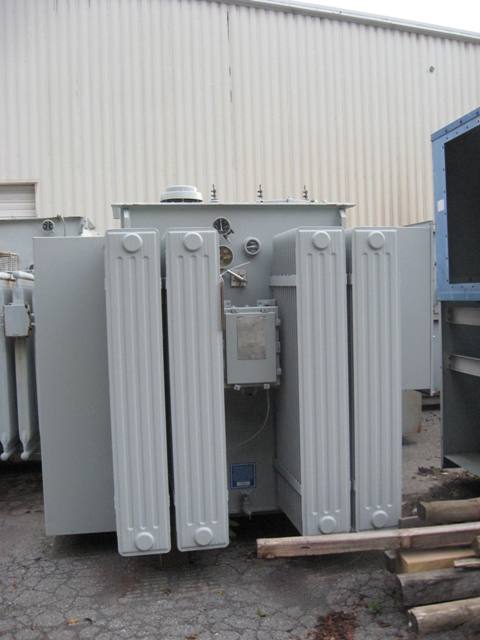

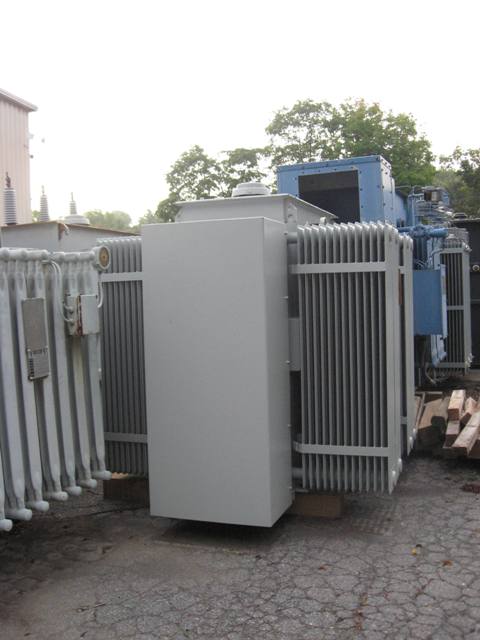

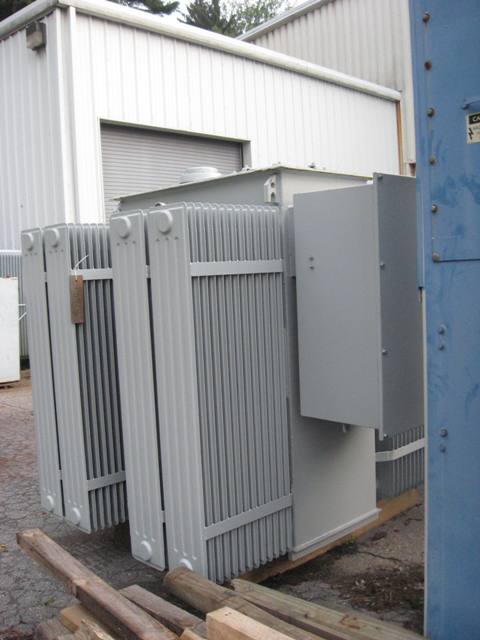

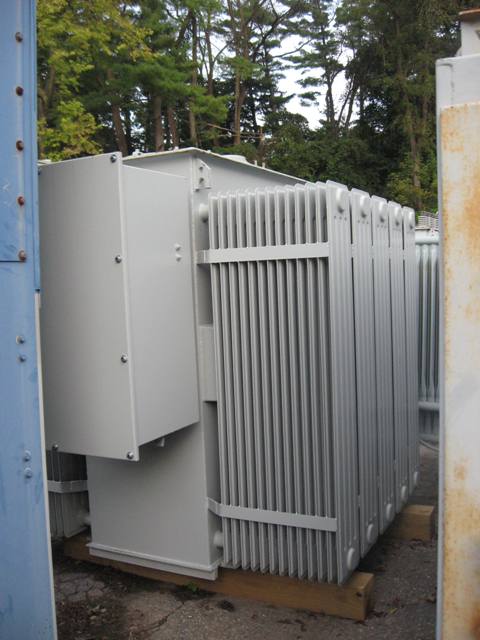

2000/2576 KVA, SIEMENS ALLIS, 13200 V D, 480Y/277, SUBSTATION
SUBSTATION TRANSFORMER
Product Number:
031508
Full Product Description
STOCK #T-5406:

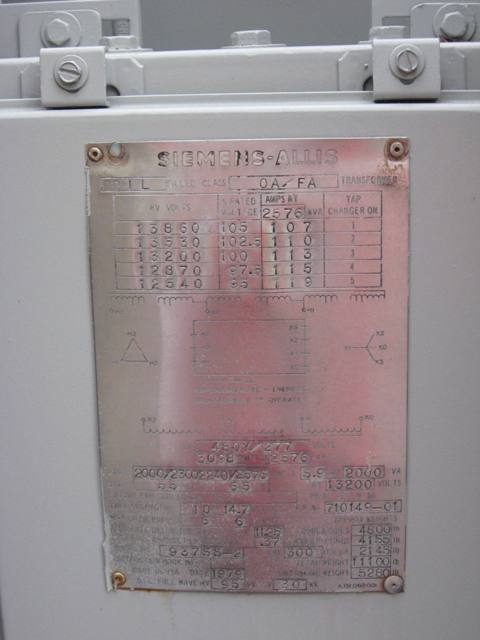

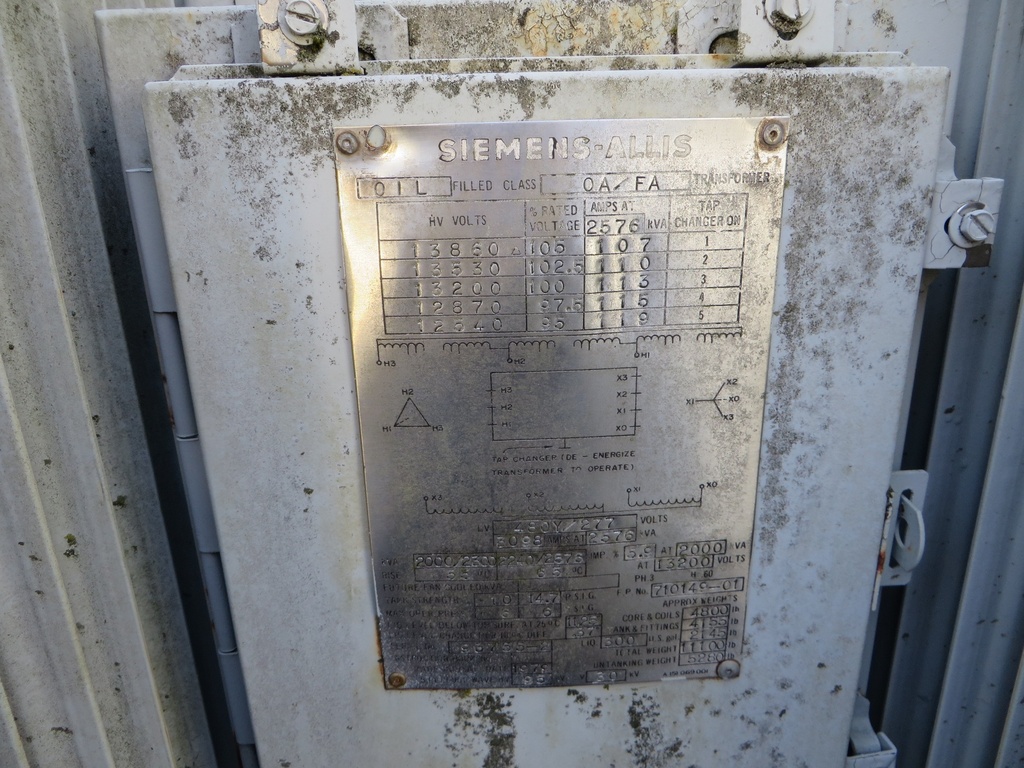

ONE (1) 2000/2576 KVA, SIEMENS ALLIS, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ.,
CLASS OA/FA, 55/65 DEGREES C RISE, 5.9% IMPEDANCE, SIDE MOUNTED
BUSHINGS, WITH DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE
VACUUM GAUGE, DRAIN & SAMPLE VALVE, PRESSURE RELIEF VALVE, AIR
TERMINAL CHAMBERS BOTH SIDES
HIGH VOLTAGE: 13200 DELTA
LOW VOLTAGE: 480Y/277
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 11,100 LBS.
CORE & COILS: 4,800 LBS.
TANK & FITTINGS: 4,155 LBS.
OIL: 300 GALS. 2,145 LBS.
DIMENSIONS: 84"H X 72"DEEP X 90"W (74"W W/O ATC)
