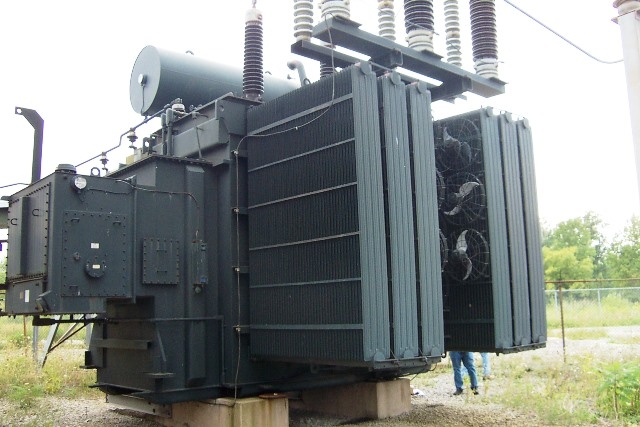

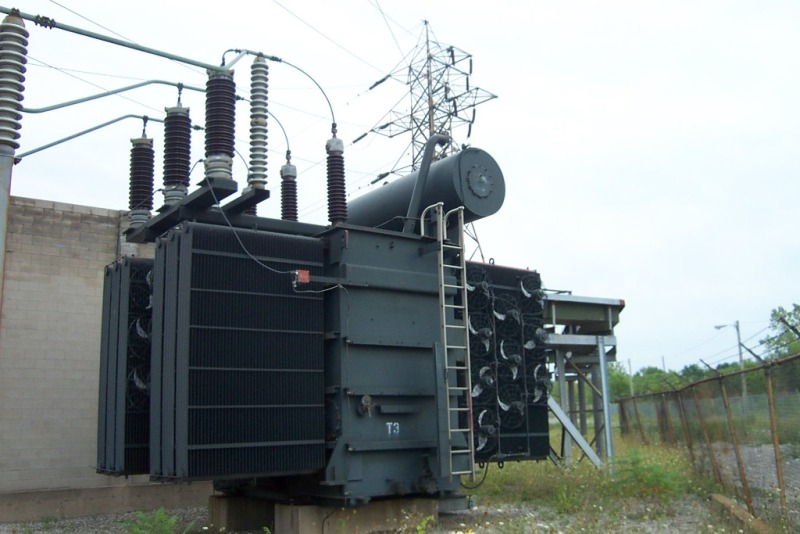

30000/40000/50000 KVA, WESTINGHOUSE, 120000 V D, 14200Y/8198, W/LTC:1

ONE (1) 30/40/50 MVA WESTINGHOUSE LOAD TAP CHANGING TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF/ONAF, 55 DEG. C RISE, 12.86% IMPEDANCE,
COPPER WINDINGS, DRAIN & SAMPLE VALVE, DIAL TYPE THERMOMETER WITH
CONTACTS, PRESSURE VACUUM GAUGE, PRESSURE RELIEF VALVE, PRESSURE
RELIEF DEVICE, HV ARRESTERS AND BRACKET, WINDING TEMPERATURE

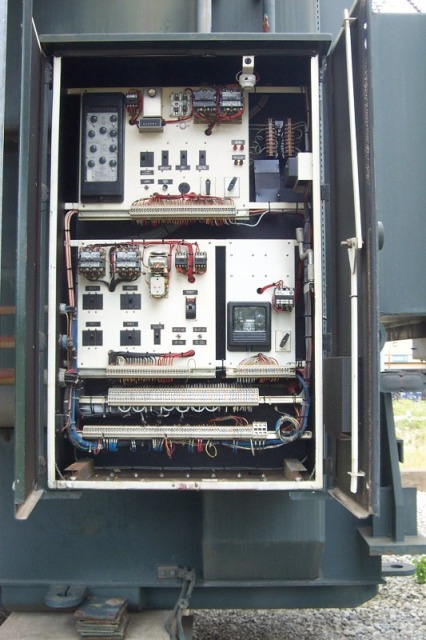

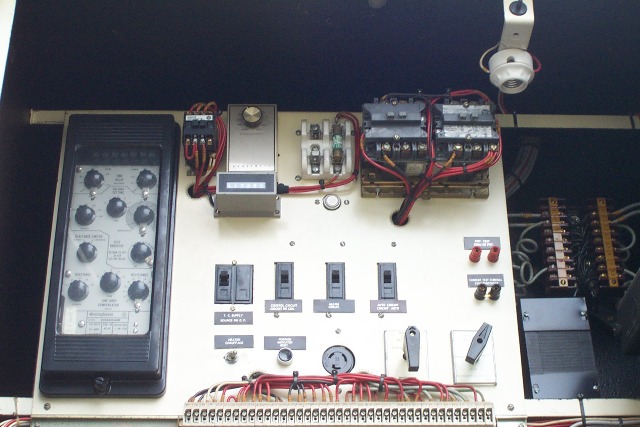

INDICATOR, AUXILIARY CONTROL CABINET, NITROGEN PRESERVATION SYSTEM,
3 X 3 HV MRCT'S (C400 - 600/5, 1200/5, 3000/5), 2 X LV CT'S, 2500/5,

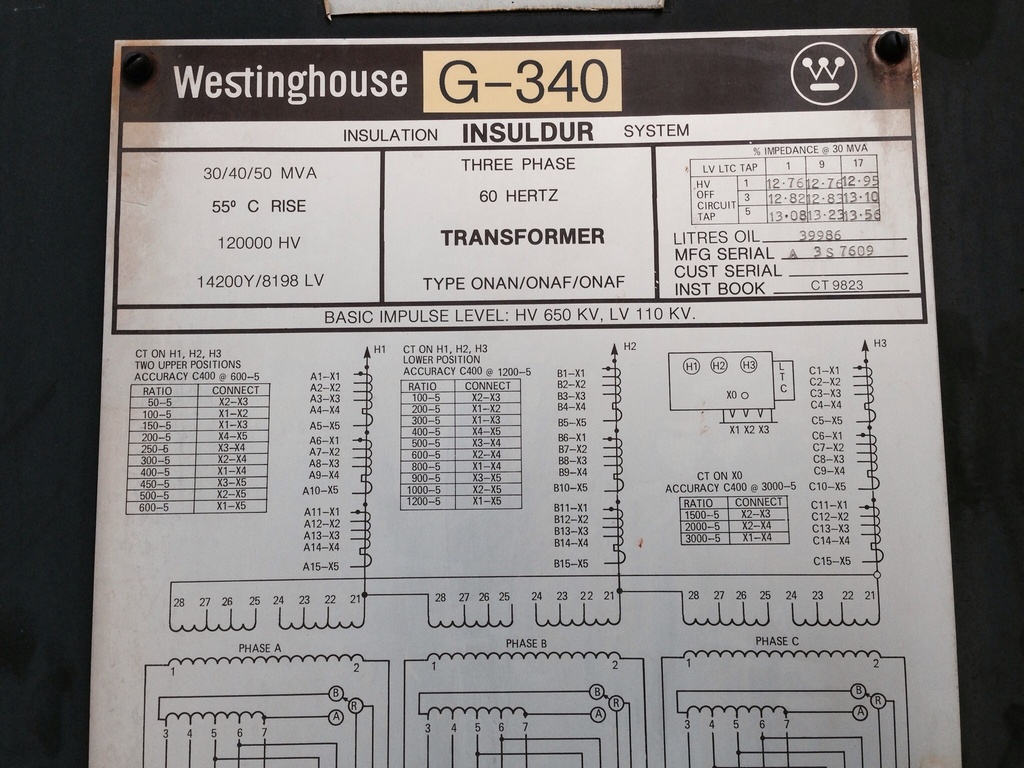

S/N A3S7609

HIGH VOLTAGE: 120000 DELTA BIL: 650 KV
LOW VOLTAGE: 14200Y/8198 BIL: 110 KV
TAPS: 126000-123000-120000-117000-114000
LTC: PLUS & MINUS 10% - 15620 TO 12780

TOTAL WEIGHT: 217,000 LBS.
CORE & COILS: 77,000 LBS.
TANK & FITTINGS: 49,500 LBS.
FLUID: 72,750 LBS.
LTC FLUID: 3,500 LBS.
OIL: 10,563 GALS.
DIMENSIONS: 220"H X 274"W X 139"D
HV BUSHING: 219"H
LV BUSHING: 144"H
SHIPPING: 160"H X 274"W X 139"D
