1500 KVA, WESTINGHOUSE, Pri. 12470 V, D, Sec. 480 V, Y, 1993, 45/55 DEG: -1
SUBSTATION TRANSFORMER
Product Number:
030430
Full Product Description
STOCK #T-5383:

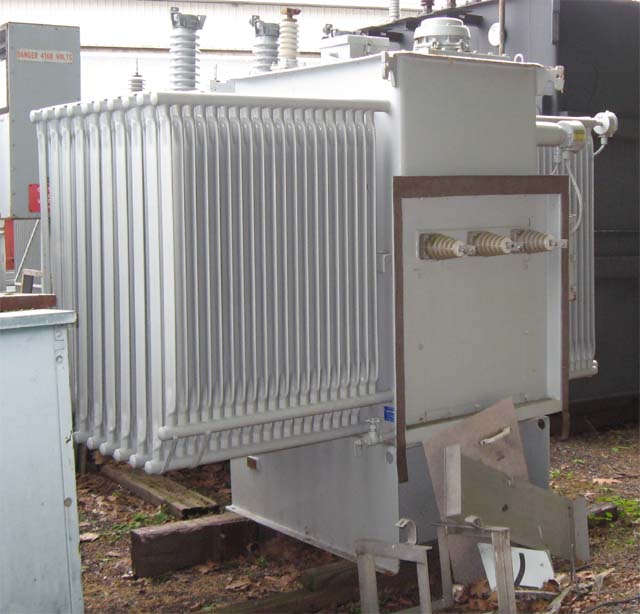

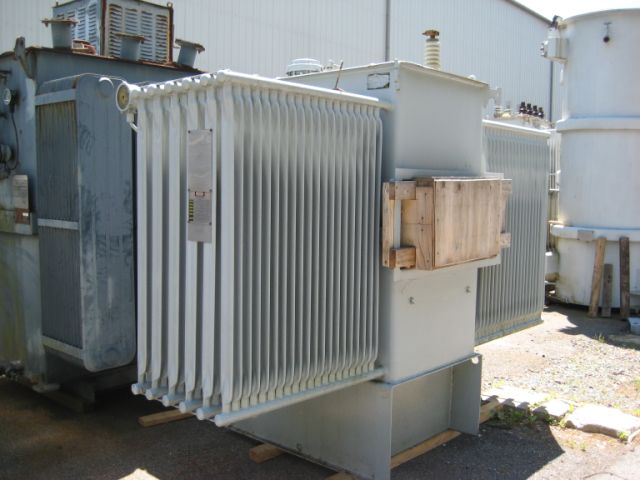

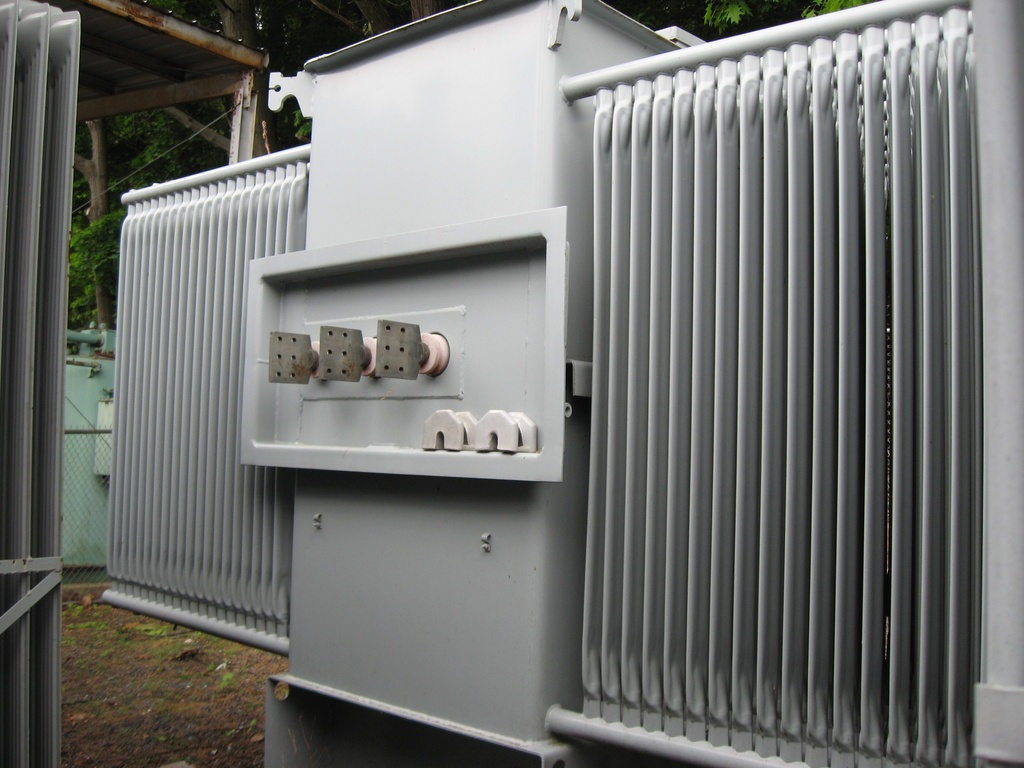

ONE (1) 1500 KVA, WESTINGHOUSE, SUBSTATION TRANSFORMER, FLANGE MOUNTED
BUSHINGS, 3 PHASE, 60 HZ., CLASS OA, 45/55 DEGREES C RISE, 5.95%

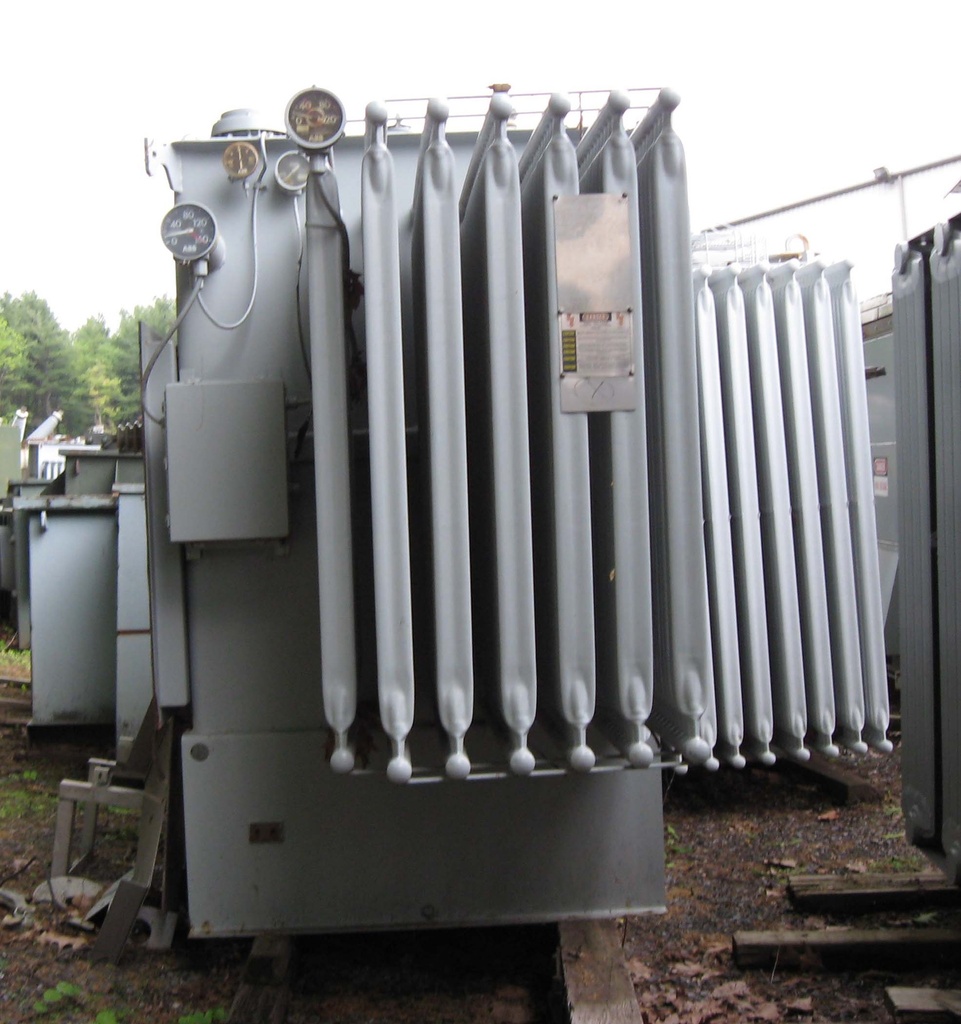

IMPEDANCE, WITH DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE
VACUUM GAUGE, PRESSURE RELIEF VALVE, NEUTRAL BUSHING ON TOP, MFG.
1993, S/N PBA3598-010
HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 45 KV
WITH 2 PLUS AND MINUS 2-1/2% IMPEDANCE
TOTAL WEIGHT: 10,436 LBS.
CORE & COILS: 4,264 LBS.
TANK & FITTINGS: 3,134 LBS.
OIL: 405 GALLONS 3,038 LBS.
DIMENSIONS: 111"H X 122"W X 72"L
