  2. 2500 KVA, ITE, Pri. 12470 V, D, Sec. 480Y/277, CORE & COIL ONLY:1

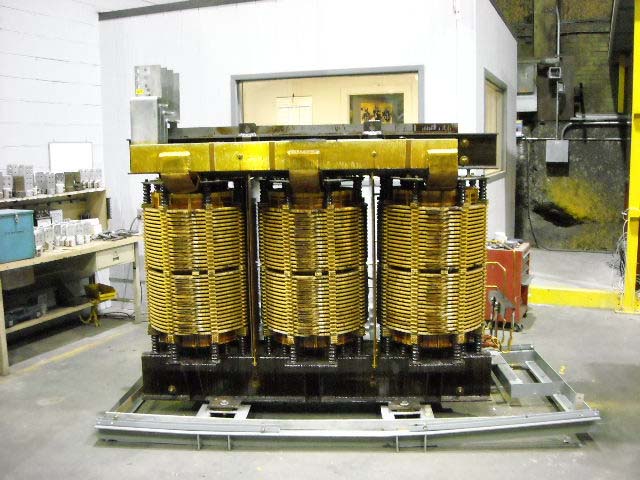

2500 KVA, ITE, Pri. 12470 V, D, Sec. 480Y/277, CORE & COIL ONLY:1

https://belyeapower.redstormlabs.com/web/image/product.template/19863/image_1920?unique=e3adc27

CORE & COILS

$ 35,000.00 35000.0 USD $ 35,000.00

$ 35,000.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 029708
    Request Quote

    Full Product Description


    T-2525

    ONE (1) 2500 KVA, ITE, INDOOR HOUSED, DRY TYPE TRANSFORMER, 3 PHASE, 60 HZ.,
    CLASS, AA, 150 DEGREES C RISE, 5.12% IMPEDANCE, CORE & COILS ONLY,
    ALUMINUM WINDINGS, HV LEFT BOTTOM, LV RIGHT

    HIGH VOLTAGE: 12470 DELTA
    LOW VOLTAGE: 480Y/277
    TAPS: 13095-12780-12470-12160-11850

    TOTAL WEIGHT: 8,800 LBS.
    DIMENSIONS: 72"H X 93"W X 47"D
    HV BUSS: 20"H
    LV BUSS: 86"H
