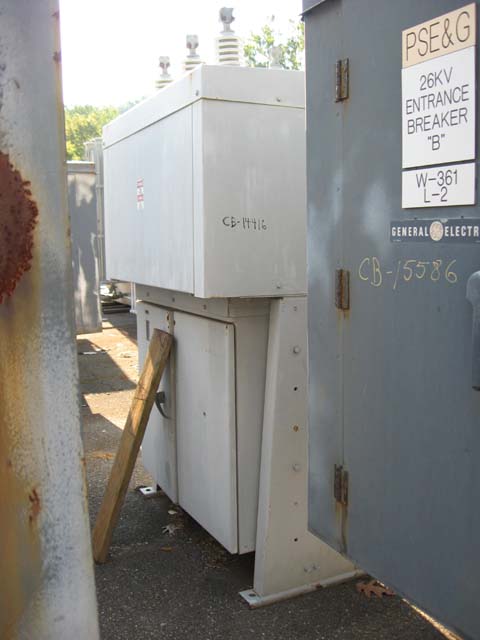

600 Amp, WESTINGHOUSE, R, 15 KV, OUTDOOR, FRAME MOUNT, VACUUM RECLOSER: -1
VACUUM RECLOSER
Product Number:
029489
Full Product Description
STOCK #CB-14416:

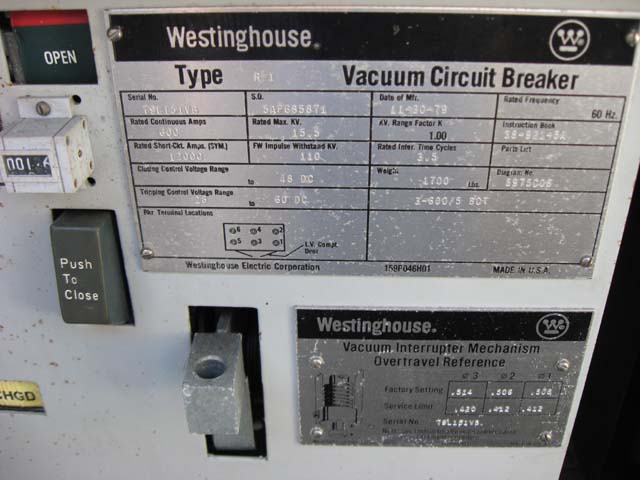

ONE (1) 600 AMP, 15 KV, WESTINGHOUSE, TYPE R1, OUTDOOR, FRAME MOUNTED, VACUUM
RECLOSER, RATED 12 KA SYMMETRICAL RMS, 20 KA MOMENTARY INT., 48 VDC
CLOSE & TRIP, 230 VAC CHARGING MOTOR, WITH 3 - 600:5A MULTIRATIO CT'S
TOTAL WEIGHT: 1,700 LBS.
SHIPPING DIMENSIONS: 88"H X 36"D X 50"W
3 - CO-9 OCR RELAYS, CO-9H111N, 1-12A, 6-144A
1 - C0-9 GROUND RELAY, CO-9H111N, 1-12A, 6-144A
1 - 52 C/S
2 - INDICATING LIGHTS
1 - WATTHOUR METER, D4B8F
1 - RC RECLOSING RELAY, 120/240 VAC, 48/125 VDC
1 - MG-6 AUXILIARY RELAY
ONE (1) 600 AMP, 15 KV, WESTINGHOUSE, TYPE R1, OUTDOOR, FRAME MOUNTED, VACUUM
RECLOSER, RATED 12 KA SYMMETRICAL RMS, 20 KA MOMENTARY INT., 48 VDC
CLOSE & TRIP, 230 VAC CHARGING MOTOR, WITH 3 - 600:5A MULTIRATIO CT'S
TOTAL WEIGHT: 1,700 LBS.
SHIPPING DIMENSIONS: 88"H X 36"D X 50"W
3 - CO-9 OCR RELAYS, CO-9H111N, 1-12A, 6-144A
1 - C0-9 GROUND RELAY, CO-9H111N, 1-12A, 6-144A
1 - 52 C/S
2 - INDICATING LIGHTS
1 - WATTHOUR METER, D4B8F
1 - RC RECLOSING RELAY, 120/240 VAC, 48/125 VDC
1 - MG-6 AUXILIARY RELAY
