1200 Amp, WESTINGHOUSE, 50VCP-W-250, 4160 V., 125 VDC CL & TR: -1
VACUUM CIRCUIT BREAKER
Product Number:
029189
Full Product Description
STOCK #CB-14348:

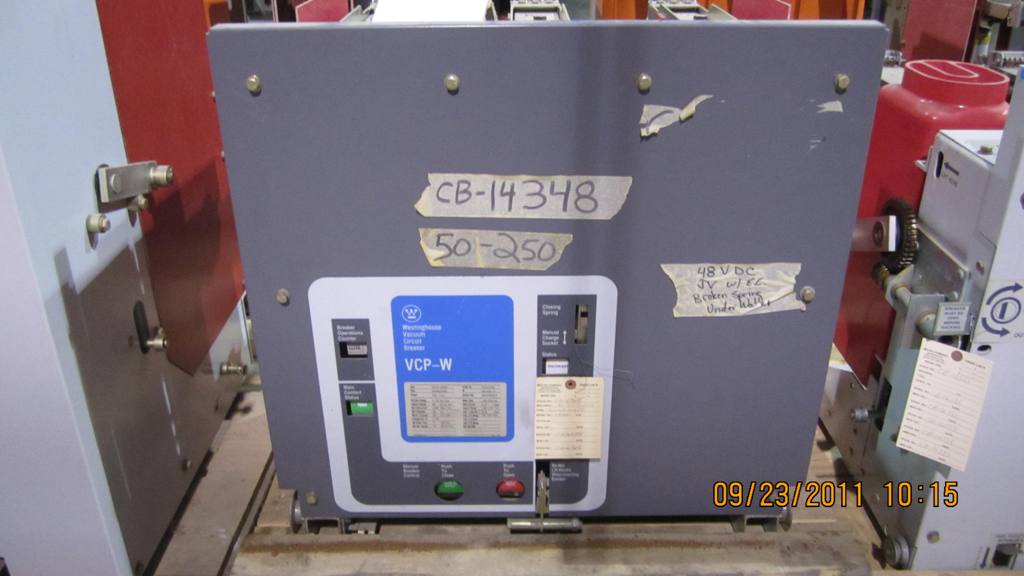

ONE (1) 1200 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER

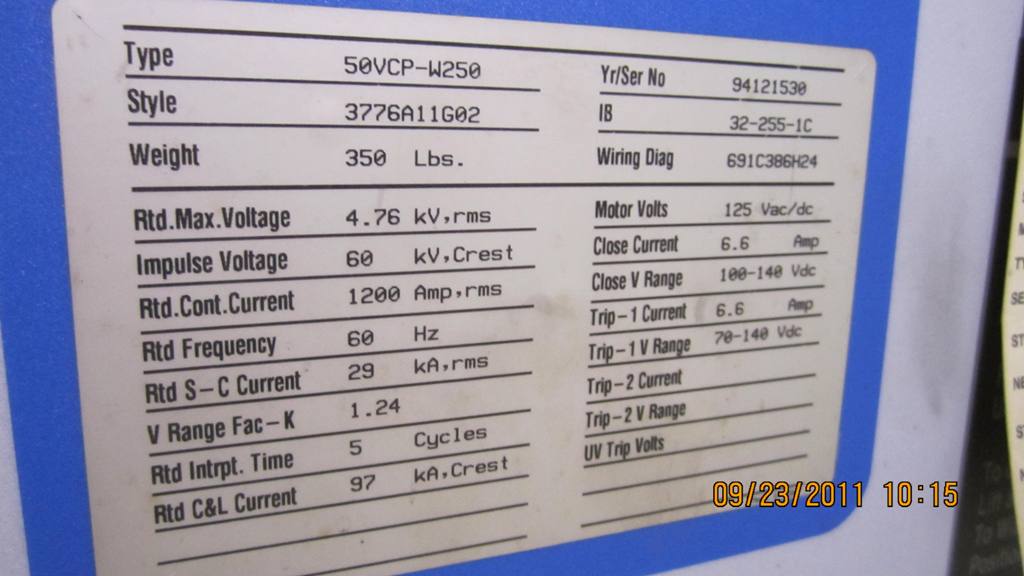

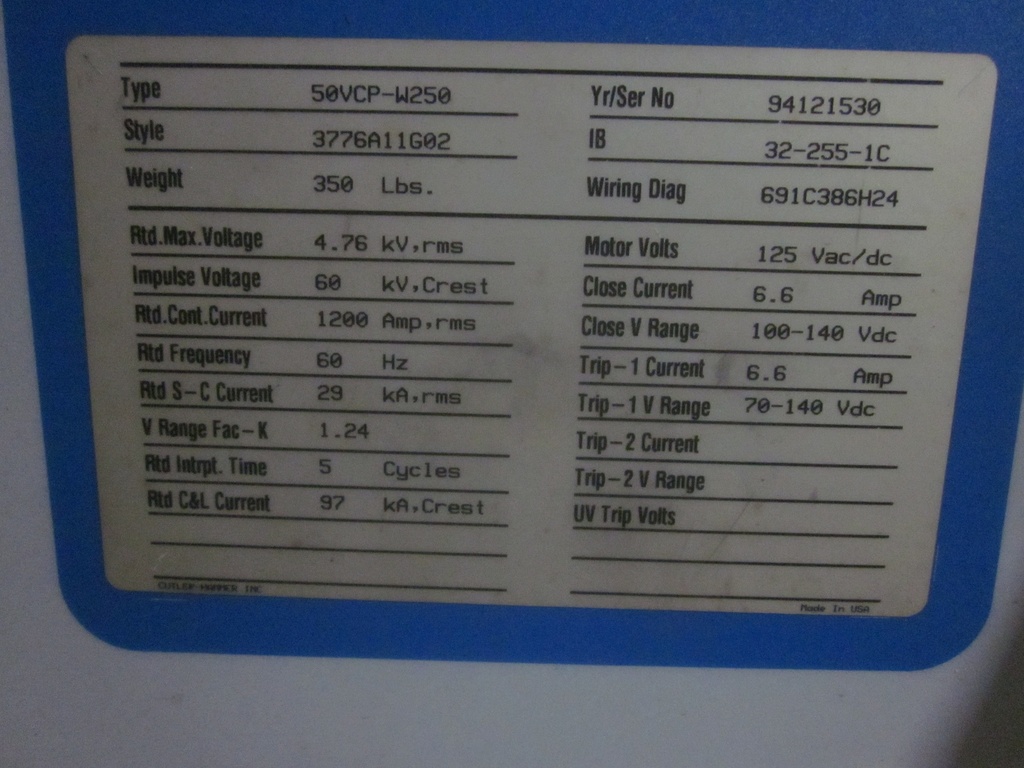

TYPE 50VCP-W-250
4160 VAC
250 MVA I.C
STYLE 3776A11602
4.76 KV MAX
60 HERTZ
60 KV BIL
5 CYCLE INTERRUPT
29 SHORT CIRCUIT
1.24 VOLTAGE K FACTOR
97 KA CLOSE & LATCH
125 VDC CLOSE AND TRIP
125 VAC/DC MOTOR
WEIGHT: 350 LBS
IB: 32-255-1C
ELECTRICALLY OPERATED
DRAWOUT
MFG. 1994
S/N 121530
ONE (1) 1200 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER
TYPE 50VCP-W-250
4160 VAC
250 MVA I.C
STYLE 3776A11602
4.76 KV MAX
60 HERTZ
60 KV BIL
5 CYCLE INTERRUPT
29 SHORT CIRCUIT
1.24 VOLTAGE K FACTOR
97 KA CLOSE & LATCH
125 VDC CLOSE AND TRIP
125 VAC/DC MOTOR
WEIGHT: 350 LBS
IB: 32-255-1C
ELECTRICALLY OPERATED
DRAWOUT
MFG. 1994
S/N 121530
