3750/5250 KVA, SQUARE D, Pri. 26400 V, D, Sec. 4160 V, Y, 1999, SUBST. TXFMR: -1
SUBSTATION TRANSFORMER
Product Number:
029053
Full Product Description
STOCK #T-5341:

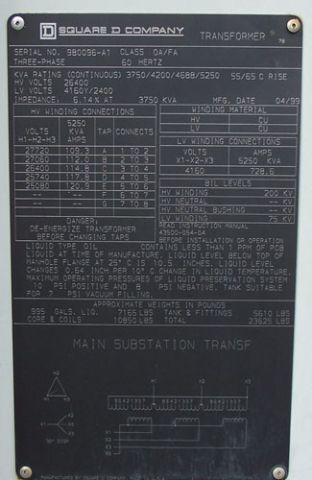

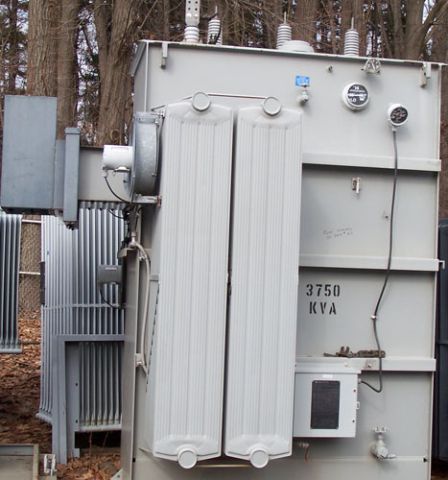

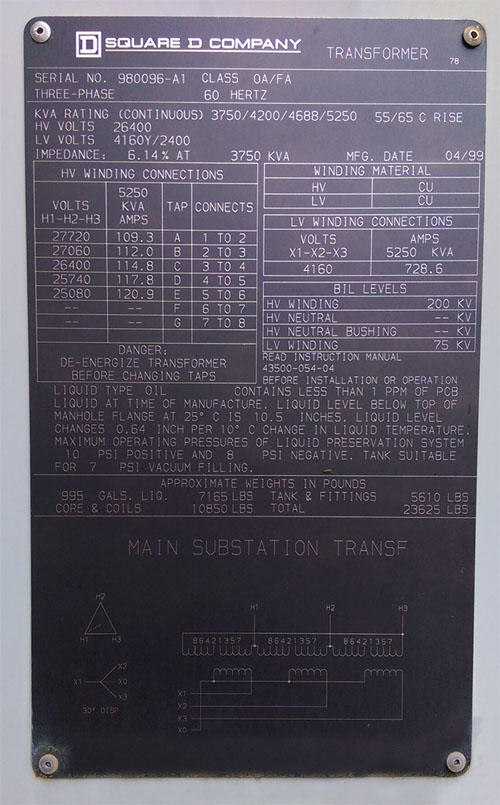

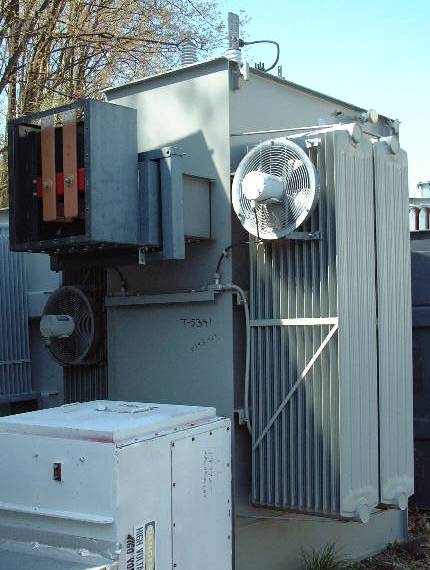

ONE (1) 3750/5250 KVA, SQUARE D, SUBSTATION TRANSFORMER, COPPER WOUND, 55/65
DEGREES C RISE, CLASS OA/FA, 6.14% IMPEDANCE, 3 PHASE, 60 HZ., TOP
MOUNTED HIGH VOLTAGE BUSHINGS, THROAT MOUNTED LOW VOLTAGE BUSHINGS,
WITH DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE,
PRESSURE RELIEF DEVICE, DRAIN & SAMPLE VALVE
HIGH VOLTAGE: 26400 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS:
27720-27060-26400-25740-25080
TOTAL WEIGHT: 23,625 LBS.
CORE & COILS: 10,850 LBS.
TANK & FITTINGS: 5,610 LBS.
OIL: 995 GALLONS 7,165 LBS.
DIMENSIONS: 11'7"H X 7'4"W X 8'6"L
ONE (1) 3750/5250 KVA, SQUARE D, SUBSTATION TRANSFORMER, COPPER WOUND, 55/65
DEGREES C RISE, CLASS OA/FA, 6.14% IMPEDANCE, 3 PHASE, 60 HZ., TOP
MOUNTED HIGH VOLTAGE BUSHINGS, THROAT MOUNTED LOW VOLTAGE BUSHINGS,
WITH DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE,
PRESSURE RELIEF DEVICE, DRAIN & SAMPLE VALVE
HIGH VOLTAGE: 26400 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS:
27720-27060-26400-25740-25080
TOTAL WEIGHT: 23,625 LBS.
CORE & COILS: 10,850 LBS.
TANK & FITTINGS: 5,610 LBS.
OIL: 995 GALLONS 7,165 LBS.
DIMENSIONS: 11'7"H X 7'4"W X 8'6"L
