1500 KVA, SQUARE D, Pri. 13200 D, Sec. 480 Y, INDOOR TRANSFORMER
DRY TYPE TRANSFORMER
Product Number:
028979
Full Product Description
STOCK #T-5322:

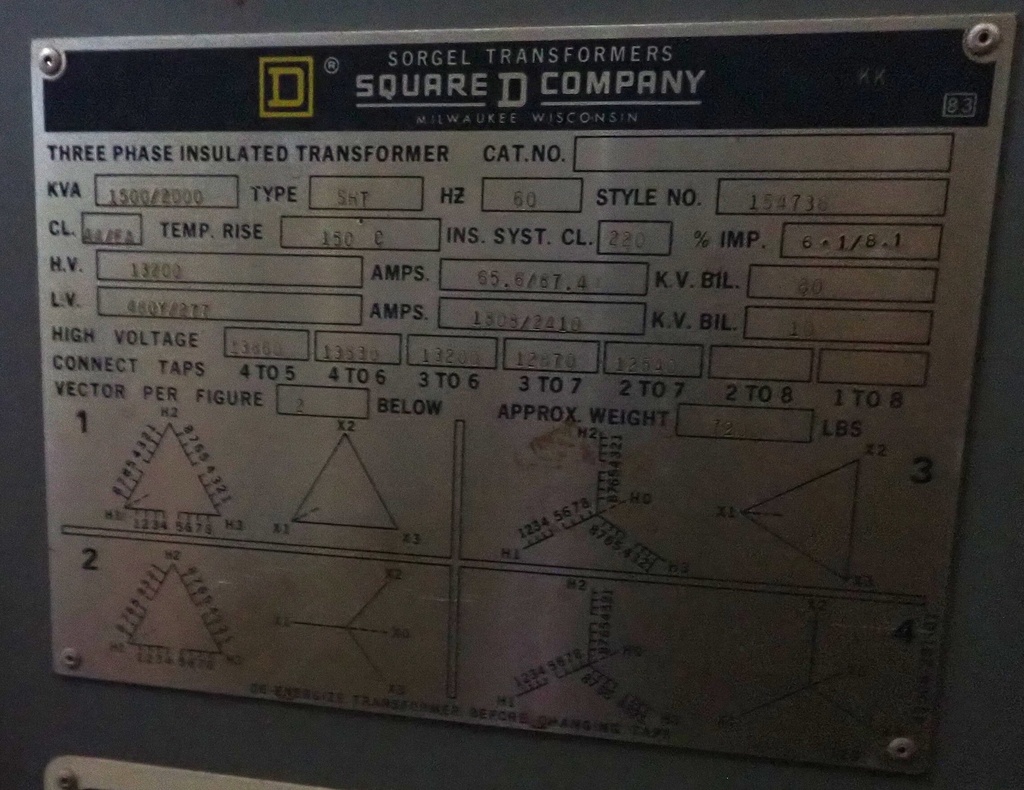

ONE (1) 1500 KVA, SQUARE D, INDOOR HOUSED, DRY TYPE TRANSFORMER, 3 PHASE, 60
HZ., CLASS AA/FFA, 150 DEGREES C RISE, 220 DEGREES C INSULATION, 6.1%

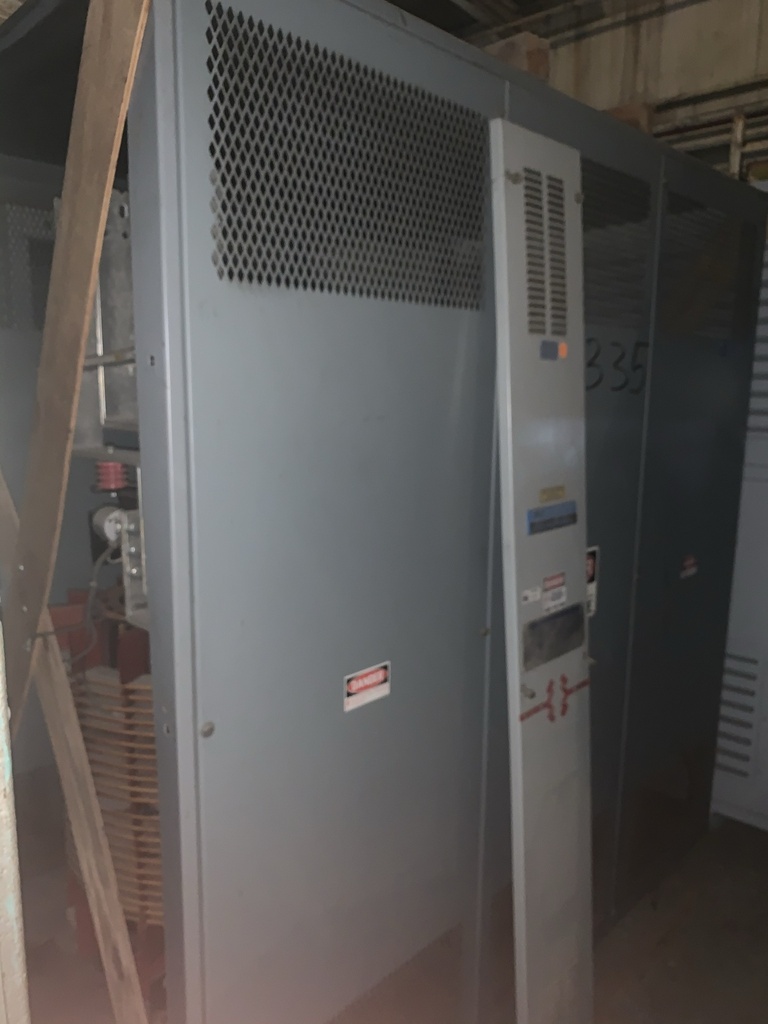

IMPEDANCE, TYPE SHT, NEMA 1 ENCLOSED WITH FANS AND CONTROLS
HIGH VOLTAGE: 13200 DELTA BIL: 60 KV
LOW VOLTAGE: 480Y/277 BIL: 10 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 7,200 LBS.
DIMENSIONS: 90"H X 84"W X 54"D

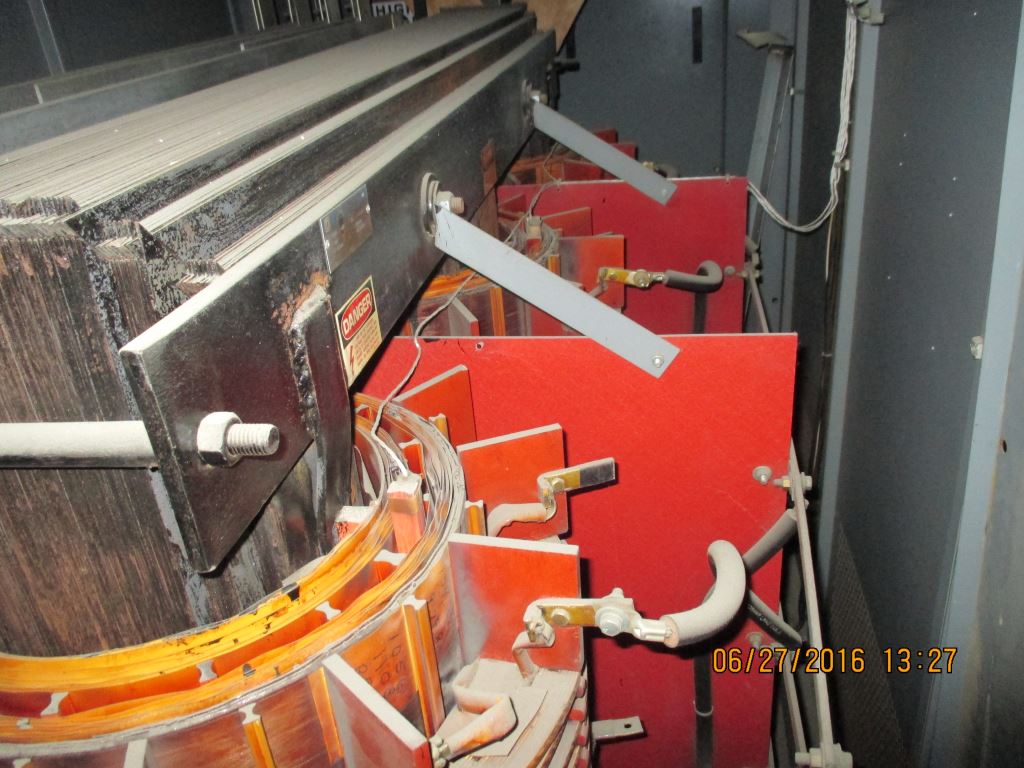

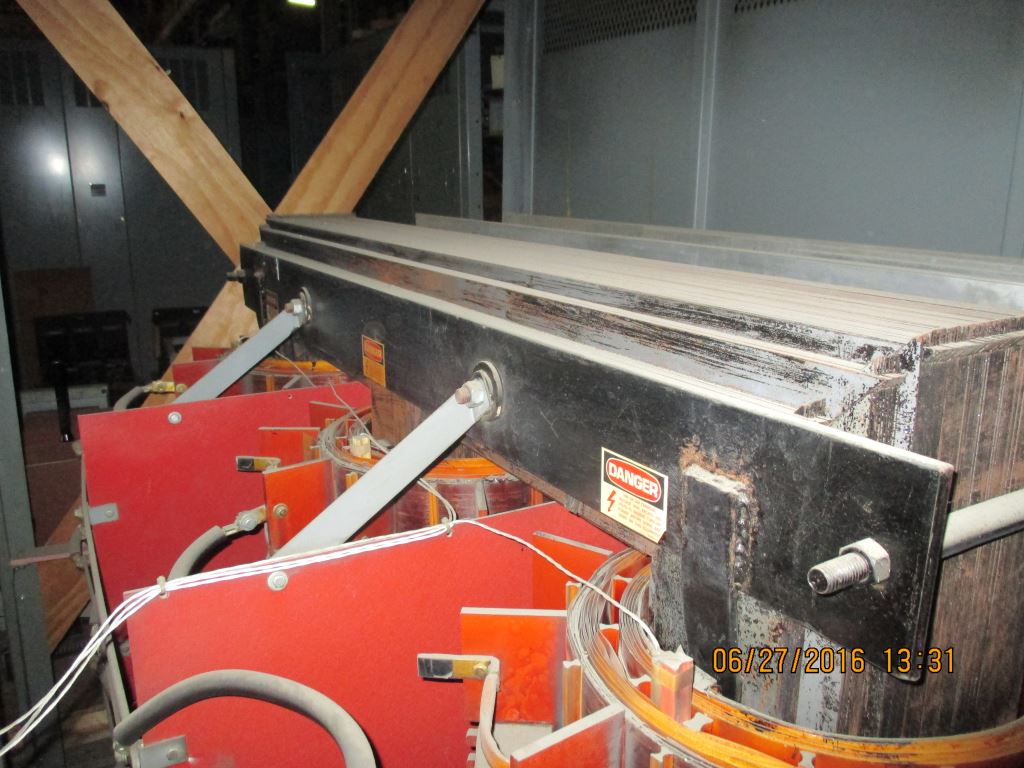

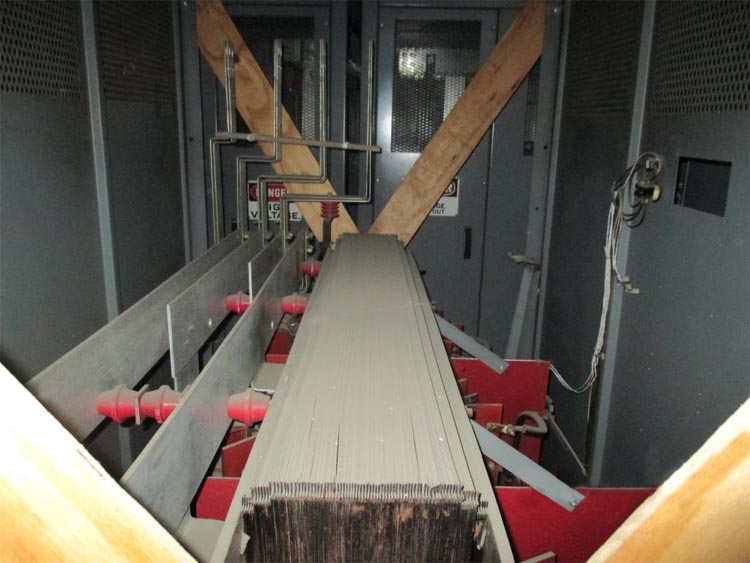

CORE & COILS: 70"H X 76"W X 42"D
