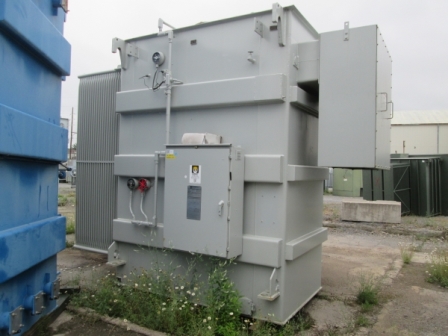

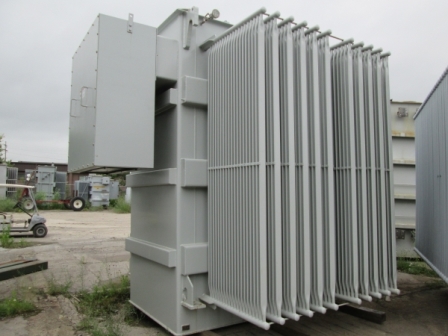

7500/8400 KVA, WESTINGHOUSE, Pri. 138000 V, D, Sec. 4160 D V, SUBSTATION: 1

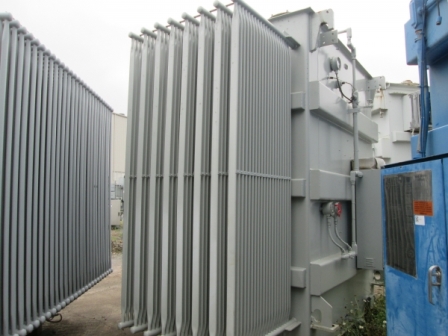

ONE (1) 7500/8400 KVA, WESTINGHOUSE, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ,
CLASS OA, 55/65 DEGREES C RISE, 8.31% IMPEDANCE, ALUMINUM WINDINGS

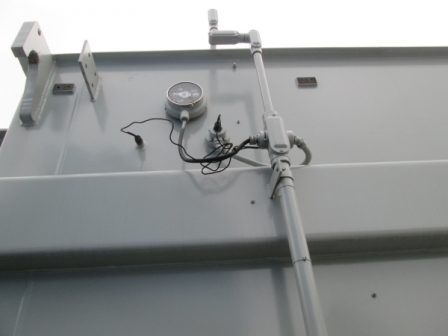

DRAIN AND SAMPLE VALVE, DIAL TYPE THERMOMETER WITH CONTACTS, LIQUID
LEVEL GAUGE WITH CONTACTS, PRESSURE RELIEF DEVICE WITH CONTACTS,

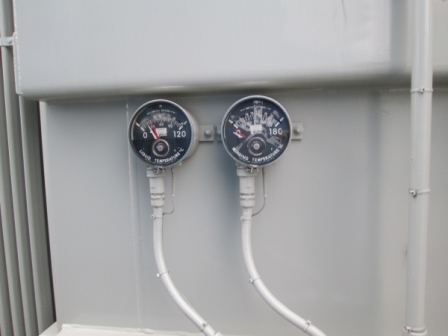

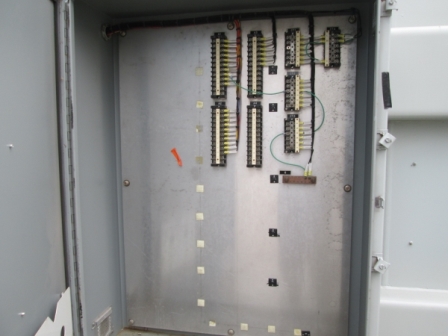

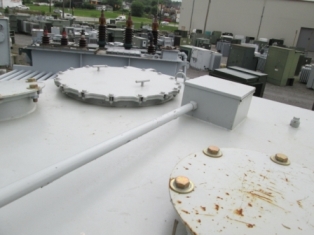

HV ARRESTERS BRACKET, WINDING TEMPERATURE INDICATOR, AUXILIARY CONTROL

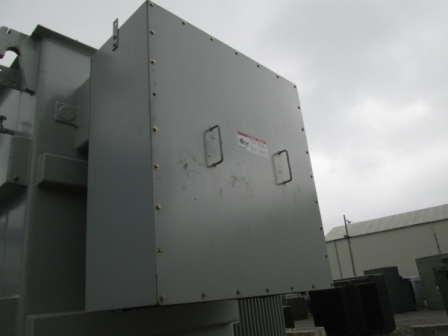

CABINET, HV TOP ANSI 1, LV SIDE ANSI 4 IN AIR TERMINAL CHAMBER,
S/N 601431-1, 3-600:5 MULTIRATIO BUSHING CT'S, 1-1200:5 CT ON LOW
VOLTAGE


HIGH VOLTAGE: 138000 DELTA BIL: 550 KV
LOW VOLTAGE: 4160 DELTA BIL: 95 KV
TAPS: 144900-141450-138000-134550-131100

TOTAL WEIGHT: 59,220 LBS.
CORE & COILS: 19,600 LBS.
TANK & FITTINGS: 15,500 LBS.
OIL: 3216 GALLONS 24,120 LBS.
DIMENSIONS: 212"H X 184"W X 142"D
SHIPPING: 148"H X 184"W X 123"D (LA BRACKETS REMOVED)
HV BUSHING: 212"H
LV BUSHING: 119"H
