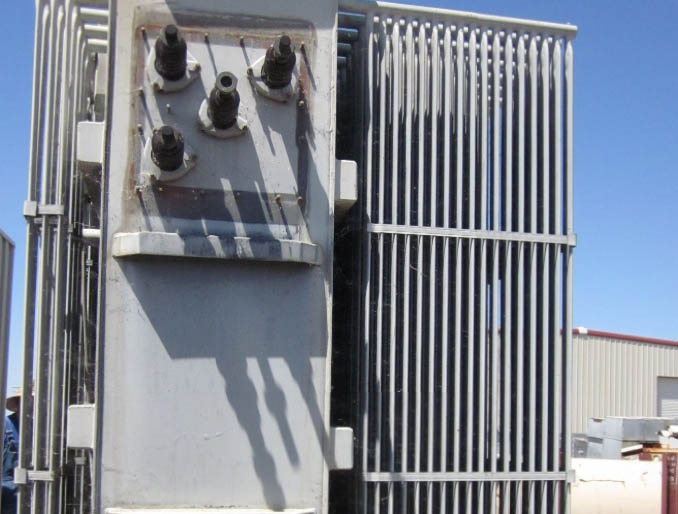

5000/7000 KVA, Pri 12470 D, Sec 2400/4160Y/2400, GENERAL ELECTRIC:1
SUBSTATION TRANSFORMER
Product Number:
028873
Full Product Description
STOCK #T-2447:

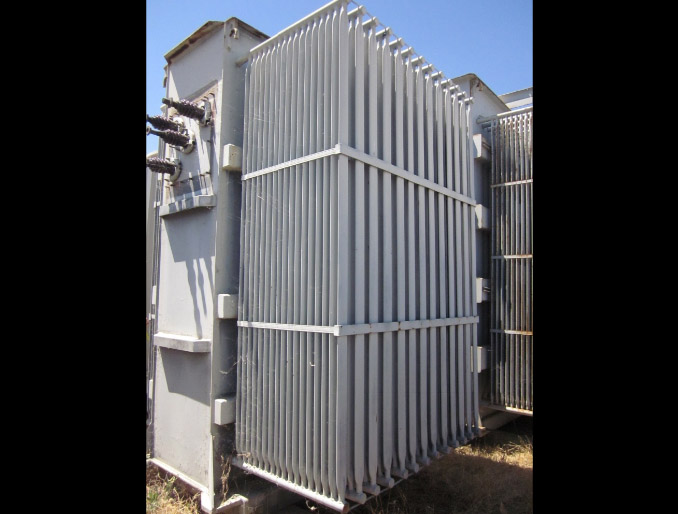

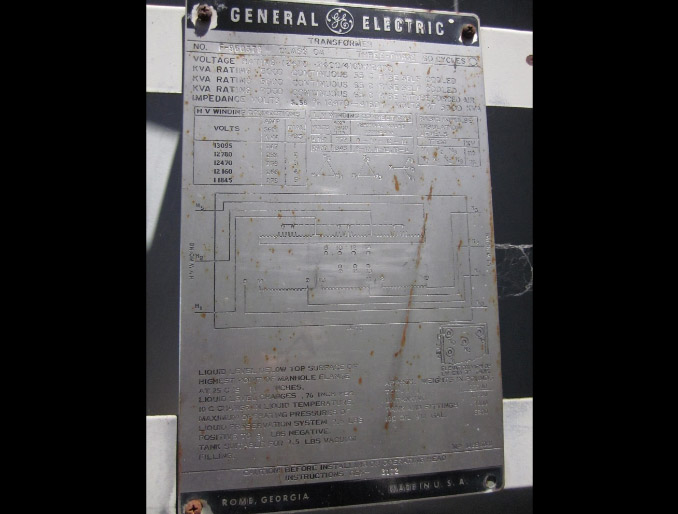

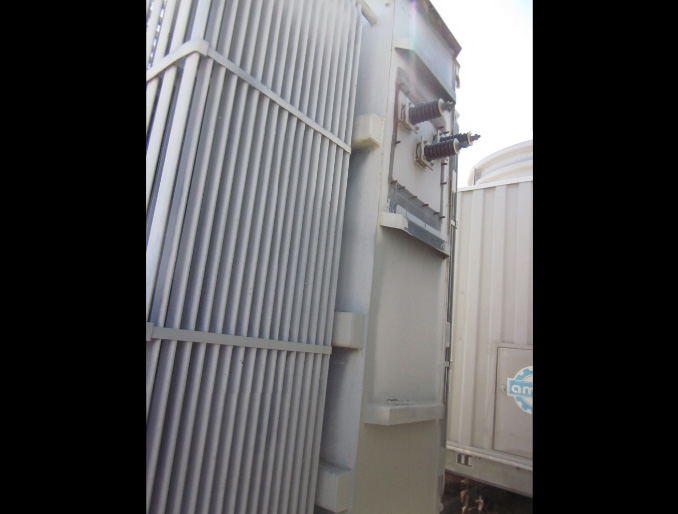

ONE (1) 5000/5600/7000 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE,
60 HZ., CLASS OA/FFA, 55/65 DEGREE C RISE, 5.56% IMPEDANCE, LIQUID
LEVEL GAUGE WITH CONTACTS, DRAIN AND SAMPLE VALVE, LIQUID TEMPERATURE
GAUGE, PRESSURE GAUGE, THROAT X THROAT, S/N F-960378
HIGH VOLTAGE: 12470 DELTA 110KV BIL
LOW VOLTAGE: 2400/4160Y X 2400 75KV BIL
TAPS: 13095-12780-12470-12160-11845
TOTAL WEIGHT: 27,300 LBS.
CORE & COILS: 12,700 LBS.
TANK & FITTINGS: 7,800 LBS.
OIL: 910 GALS. 6,800 LBS.
DIMENSIONS: 121"H X 81"D X 85"L
