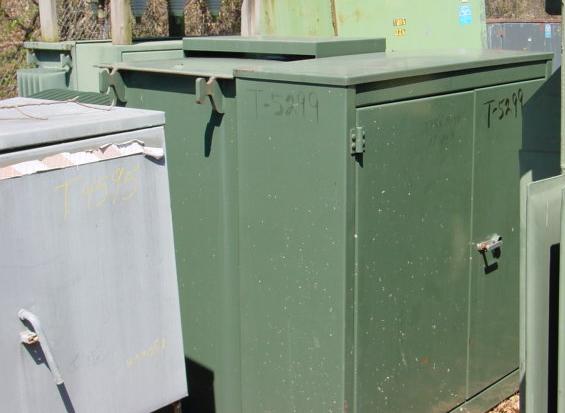

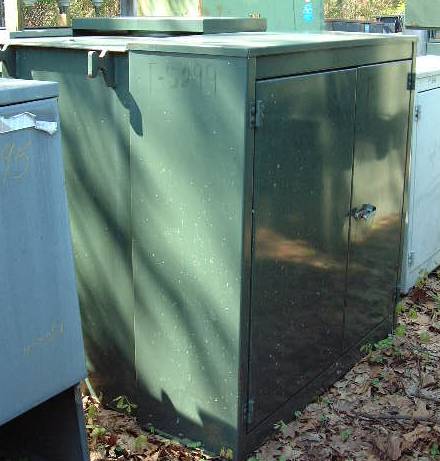

1000 KVA, ALSTOM, Pri. 7200 V, D, Sec. 480 V, Y, PAD, DEAD, RADIAL: -1
PADMOUNT TRANSFORMER
Product Number:
028624
Full Product Description
STOCK #T-5299:

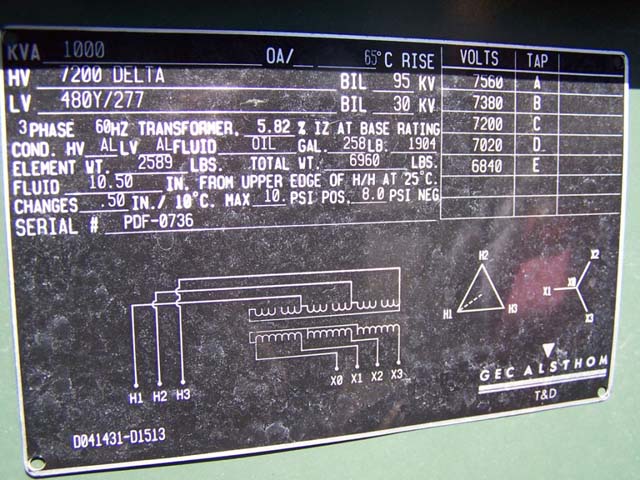

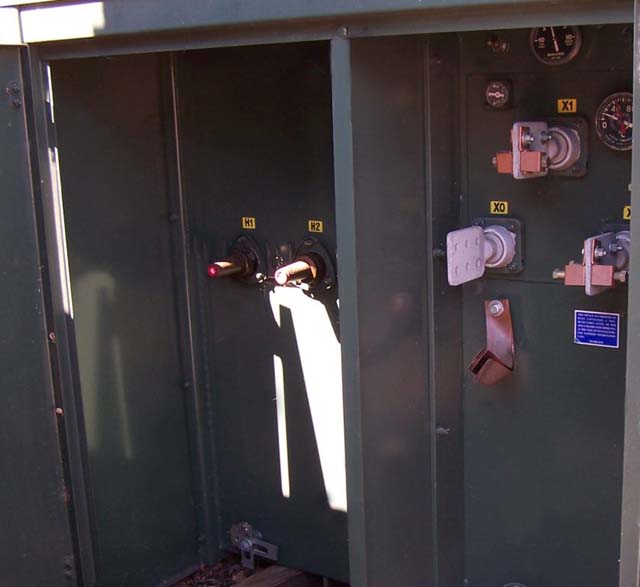

ONE (1) 1000 KVA, ALSTOM, COMPARTMENTALIZED, PADMOUNT TRANSFORMER, DEAD FRONT,
RADIAL FEED, 3 PHASE, 60 HZ., CLASS OA, 65 DEGREES C RISE, 5.82% IMP.,
WITH DIAL TYPE THERMOMETER, AND LIQUID LEVEL GAUGE, ALUMINUM WOUND
HIGH VOLTAGE: 7200 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 6,960 LBS.
CORE & COILS: 2,589 LBS.
OIL: 1,904 LBS. 258 GALLONS
TANK & FIT: 2,467 LBS.
DIMENSIONS: 60"H X 74"D X 57.5"W
