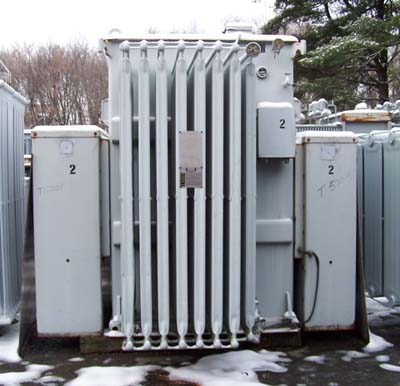

5000 KVA, ABB, Pri. 26400 D, Sec. 13200 Y, SUBST. TXFMR
SUBSTATION TRANSFORMER
Product Number:
027779
Full Product Description
STOCK #T-5224:

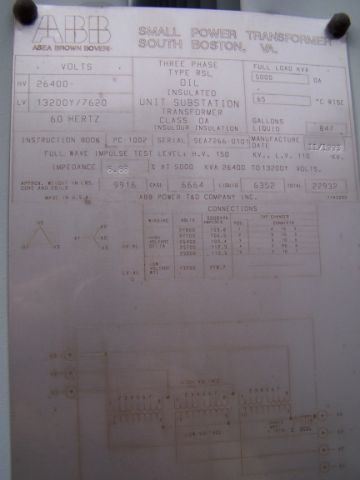

ONE (1) 5000 KVA, ABB, SUBSTATION TRANSFORMER, CLASS OA, 65 DEGREES C RISE,
6.68% IMPEDANCE, 3 PHASE, 60 HZ., AIR TERMINAL CHAMBER CONNECTIONS,
MFG. 11/93, WITH LIQUID LEVEL GAUGE, DIAL TYPE THERMOMETER, PRESSURE
VACUUM GAUGE, DRAIN & SAMPLE VALVE
HIGH VOLTAGE: 26400 DELTA BIL: 150 KV
LOW VOLTAGE: 13200Y/7620 BIL: 110 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 22,932 LBS.
CORE & COILS: 9,916 LBS.
TANK & FITTINGS: 6,664 LBS.
OIL: 847 GALLONS 6,352 LBS.
DIMENSIONS: 11.5'H X 9'W X 9.5'D
