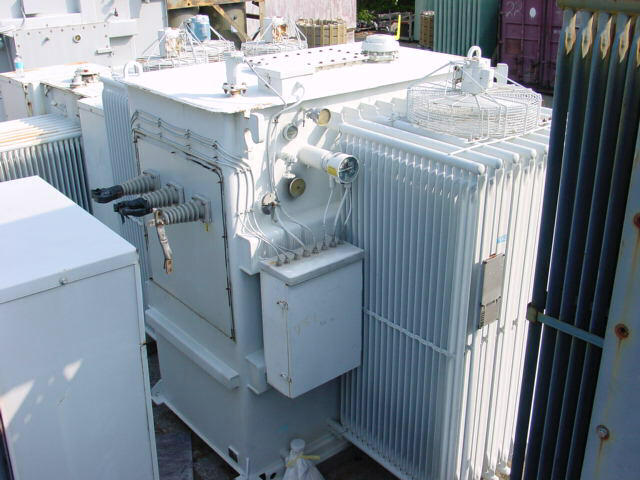

7500/9375 KVA, WESTINGHOUSE, Pri. 26400 V, D, Sec. 13200 V, D, SUBSTATION
SUBSTATION TRANSFORMER
Product Number:
026926
Full Product Description
STOCK #T-5159:

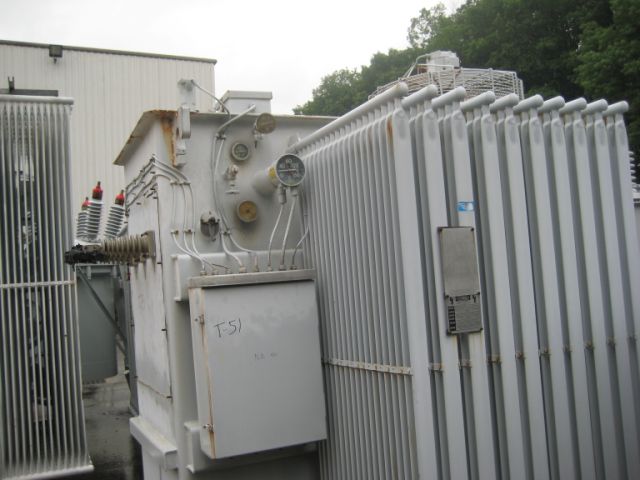

ONE (1) 7500/9375 KVA, WESTINGHOUSE, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ.,
CLASS OA/FA, 6.87% IMPEDANCE, SIDE MOUNTED BUSHINGS
HIGH VOLTAGE: 26400 DELTA BIL: 150 KV
LOW VOLTAGE: 13200 DELTA BIL: 95 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 32,098 LBS.
CORE & COILS: 16,213 LBS.
TANK & FITTINGS: 8,235 LBS.
OIL: 1020 GALLONS 7,650 LBS.
DIMENSIONS: 113"H X 138"D X 112"W
ONE (1) 7500/9375 KVA, WESTINGHOUSE, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ.,
CLASS OA/FA, 6.87% IMPEDANCE, SIDE MOUNTED BUSHINGS
HIGH VOLTAGE: 26400 DELTA BIL: 150 KV
LOW VOLTAGE: 13200 DELTA BIL: 95 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 32,098 LBS.
CORE & COILS: 16,213 LBS.
TANK & FITTINGS: 8,235 LBS.
OIL: 1020 GALLONS 7,650 LBS.
DIMENSIONS: 113"H X 138"D X 112"W
