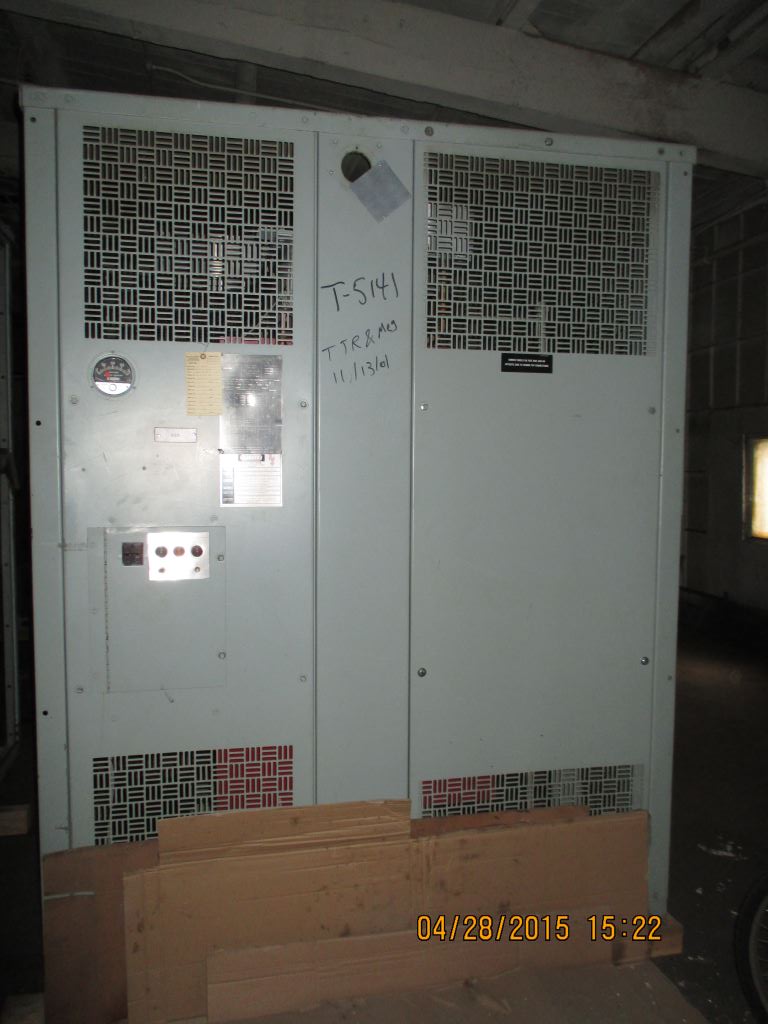

2000/3067 KVA, WESTINGHOUSE, DRY, Pri. 13200 D, Sec. 480 D, INDOOR
DRY TYPE TRANSFORMER
Product Number:
026835
Full Product Description
STOCK #T-5141:
ONE (1) 2000/2300/2667/3067 KVA, WESTINGHOUSE, INDOOR HOUSED, DRY TYPE TRANS-
FORMER, 3 PHASE, 60 HZ., CLASS AA/FFA, 115/150 DEGREES C RISE, 5.92%
IMPEDANCE, NEMA 1 ENCLOSURE
HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 10 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 10,590 LBS.
CORE & COILS: 9,260 LBS.
DIMENSIONS: 90.5"H X 74.5"D X 70"W
