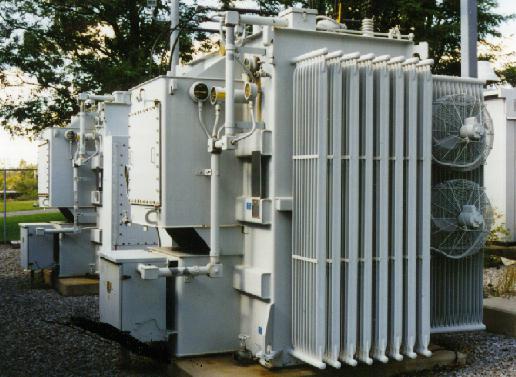

5000/7000 KVA, WESTINGHOUSE, Pri. 4160Y/2400, SEC. 2400 D, LOAD TAP CHANGING
SUBSTATION TRANSFORMER WITH LOAD TAP CHANGING
Product Number:
026727
Full Product Description
STOCK #T-5135:

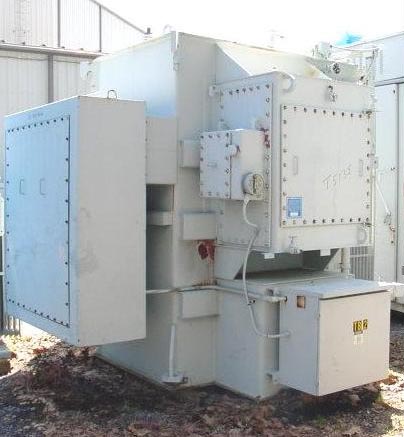

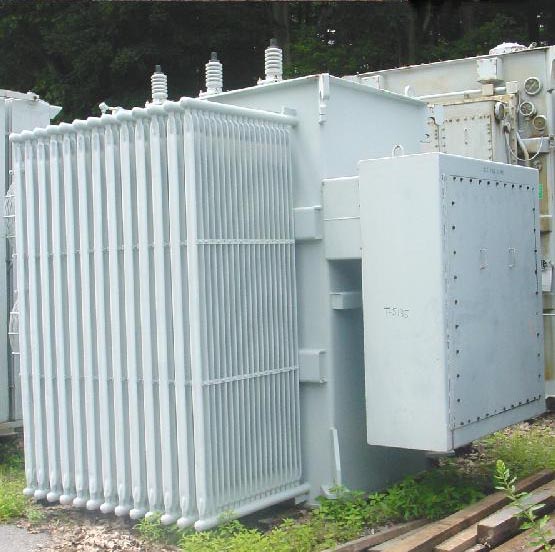

ONE (1) 5000/5600/6250/7000 KVA WESTINGHOUSE LOAD TAP CHANGING TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEGREES C RISE, 6.69% IMPEDANCE
INST. BOOK PC-1002,
HIGH VOLTAGE: 4160Y/2400 BIL: 75 KV
LOW VOLTAGE: 2400 D BIL: 60 KV
TAPS: 3744 TO 4576 IN 16 STEPS
TOTAL WEIGHT: 40,830 LBS.
CORE & COILS: 15,170 LBS.
TANK & FITTINGS: 12,250 LBS.
OIL: 1788 GALLONS 13,410 LBS. (LTC-213 GAL, TANK 1575 GAL)
DIMENSIONS: 10'4"H X 142"L X 135"W
ONE (1) 5000/5600/6250/7000 KVA WESTINGHOUSE LOAD TAP CHANGING TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEGREES C RISE, 6.69% IMPEDANCE
INST. BOOK PC-1002,
HIGH VOLTAGE: 4160Y/2400 BIL: 75 KV
LOW VOLTAGE: 2400 D BIL: 60 KV
TAPS: 3744 TO 4576 IN 16 STEPS
TOTAL WEIGHT: 40,830 LBS.
CORE & COILS: 15,170 LBS.
TANK & FITTINGS: 12,250 LBS.
OIL: 1788 GALLONS 13,410 LBS. (LTC-213 GAL, TANK 1575 GAL)
DIMENSIONS: 10'4"H X 142"L X 135"W
