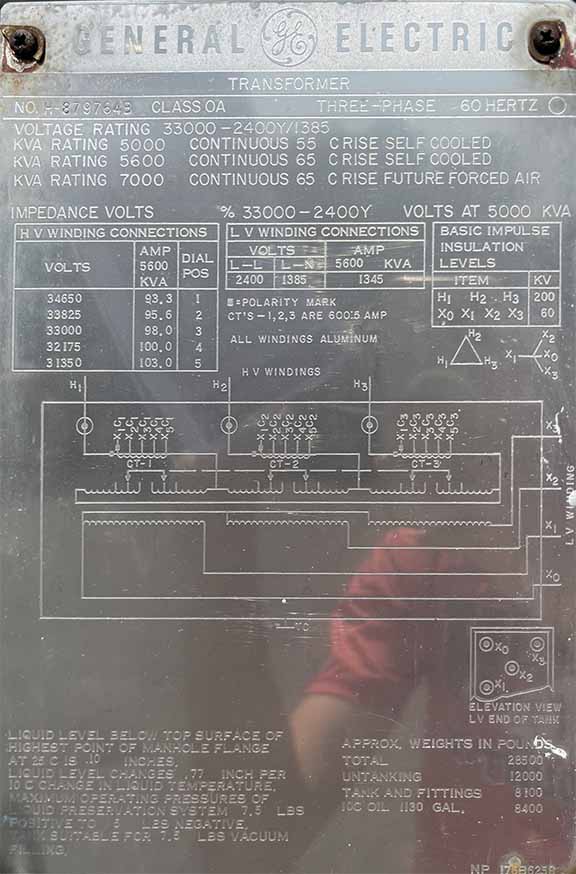

5/7 MVA, GENERAL ELECTRIC, Pri. 33000 V, D, Sec. 2400Y/1385, SUBSTATION

STOCK #T-5127:

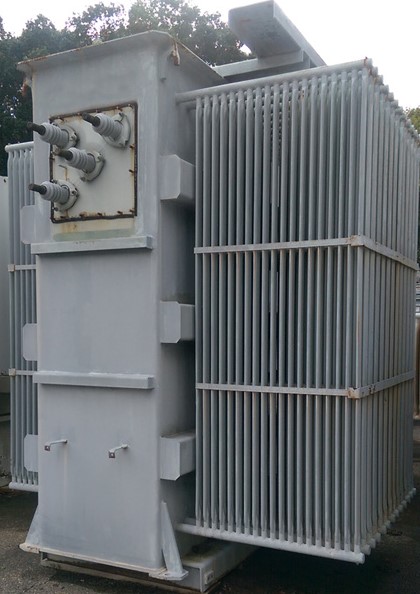

ONE (1) 5/7 MVA, GE, SUBSTATION TRANSFORMER, 55/65 DEGREES C RISE, CLASS
OA/FFA, 5.88% IMPEDANCE, WITH TOP MOUNTED HIGH VOLTAGE BUSHINGS, AND
SIDE MOUNTED LOW VOLTAGE BUSHINGS IN AIR TERMINAL CHAMBER, WITH
SUDDEN PRESSURE FAULT RELAY, DIAL TYPE THERMOMETER, LIQUID LEVEL
GAUGE, PRESSURE VACUUM GAUGE, PRESSURE RELIEF DEVICE, DRAIN VALVE
WITH SAMPLER, ALUMINUM WOUND

HIGH VOLTAGE: 33 KV DELTA BIL: 200 KV
LOW VOLTAGE: 2400Y/ 1385 BIL: 60 KV

WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 28,500 LBS.
CORE & COILS: 12,000 LBS.
TANK & FITTINGS: 8,100 LBS.
OIL: 1130 GALLONS 8,400 LBS.
DIMENSIONS: 126"H X 104"W X 107"D
