150 KVA, GENERAL ELECTRIC, Pri. 13200 V, D, Sec. 208Y/120, LIVE, RADIAL:1

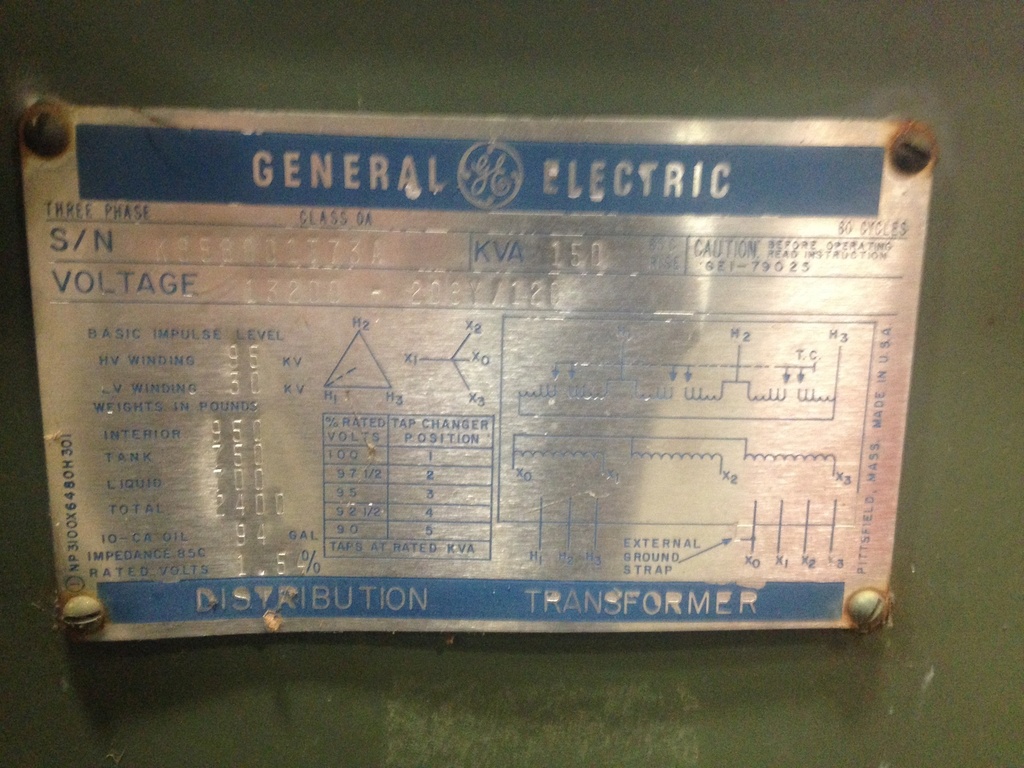

ONE (1) 150 KVA, GENERAL ELECTRIC COMPARTMENTALIZED PADMOUNT TRANSFORMER,

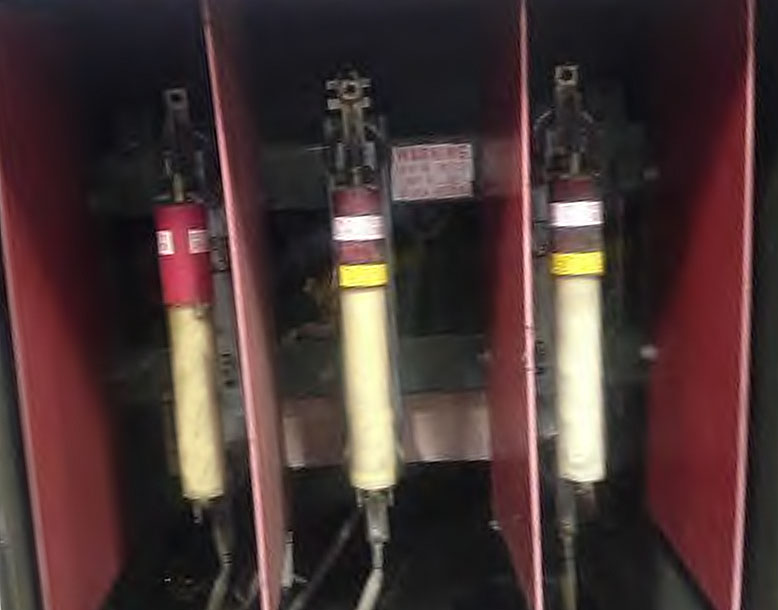

3 PHASE, 60 HERTZ, CLASS OA, 65 DEGREES C RISE, 1.54% IMPEDANCE, LIVE
FRONT, RADIAL FEED WITH DRAIN & SAMPLE VALVE

HIGH VOLTAGE: 13.2 KV DELTA BIL: 95 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
WITH 4 MINUS 2-1/2% TAPS

TOTAL WEIGHT: 2400 LBS.
CORE & COILS: 950 LBS.
TANK & FIT.: 750 LBS.
LIQUID: 700 LBS. (94 GALS.)
DIMENSIONS: 44"H X 57"W X 64"D
