1000 KVA, Pri. 33000 V, D, Sec. 2400 V, D, 1971, MCGRAW EDISON, STATION TXFMR: 1
STATION TRANSFORMER
Product Number:
023097
Full Product Description

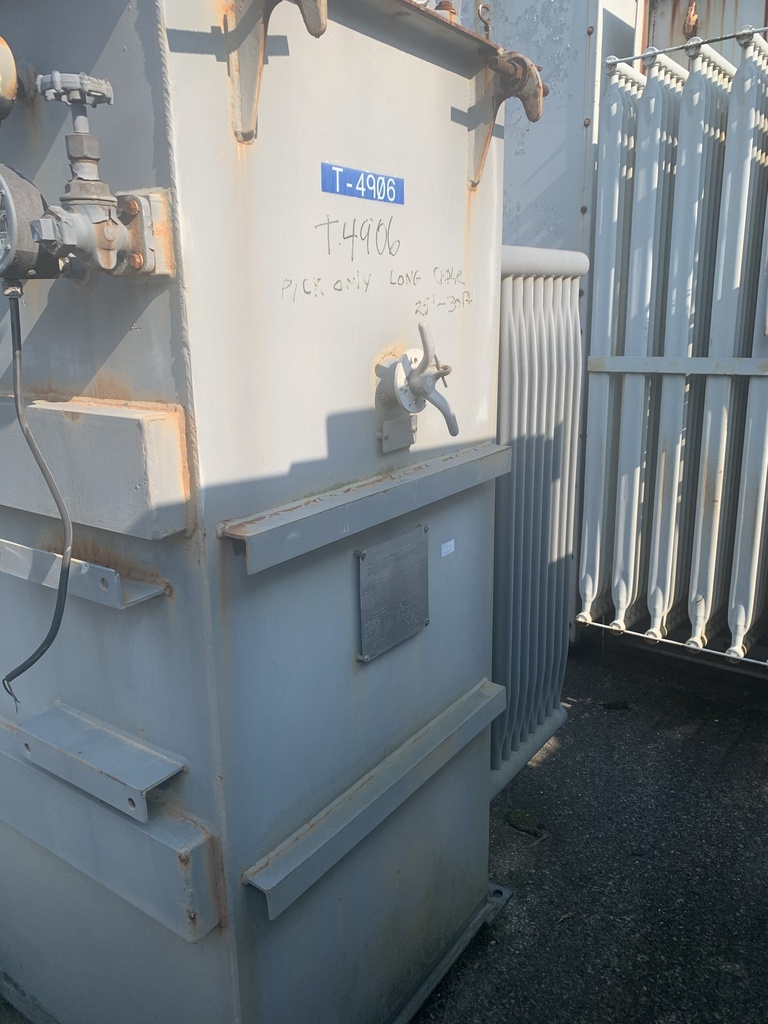

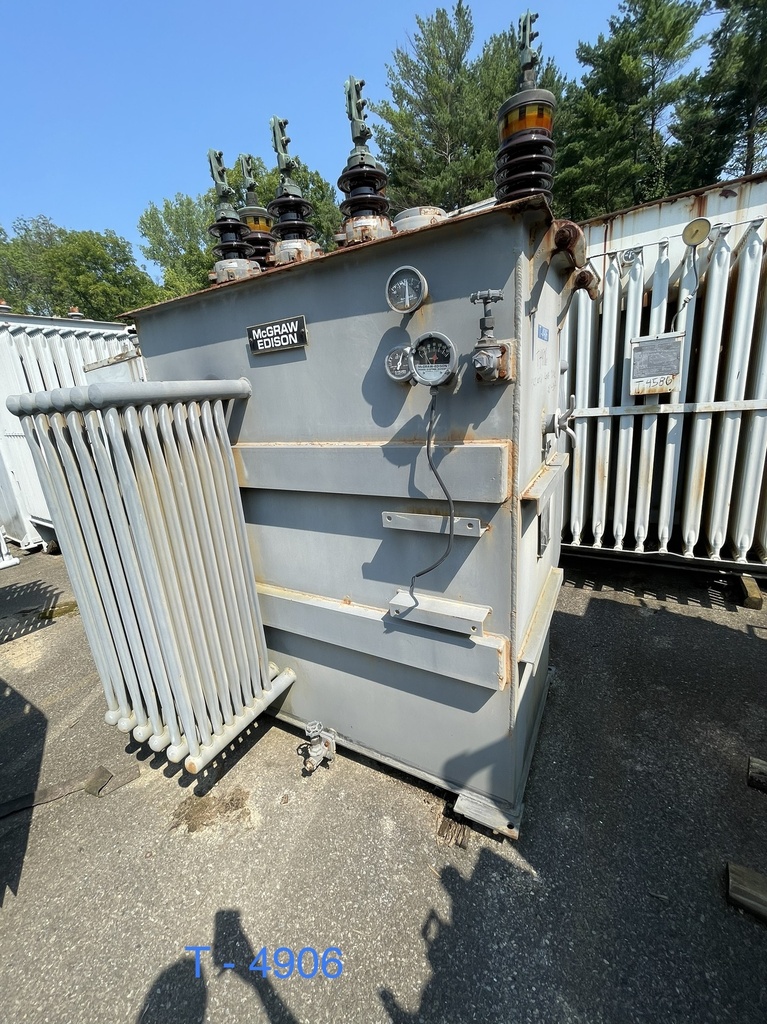

STOCK #T-4906:

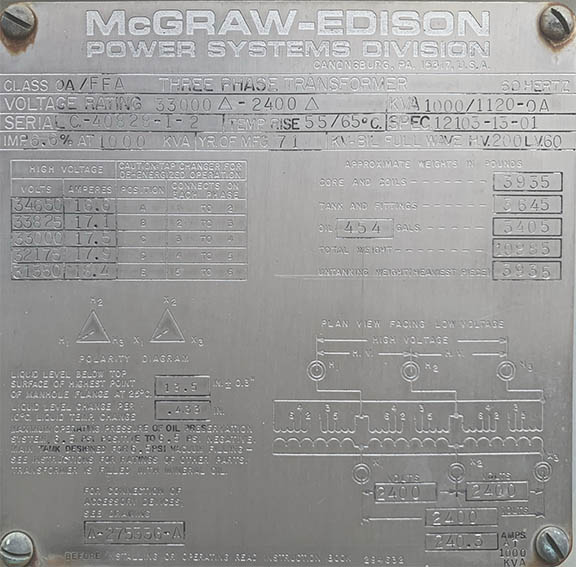

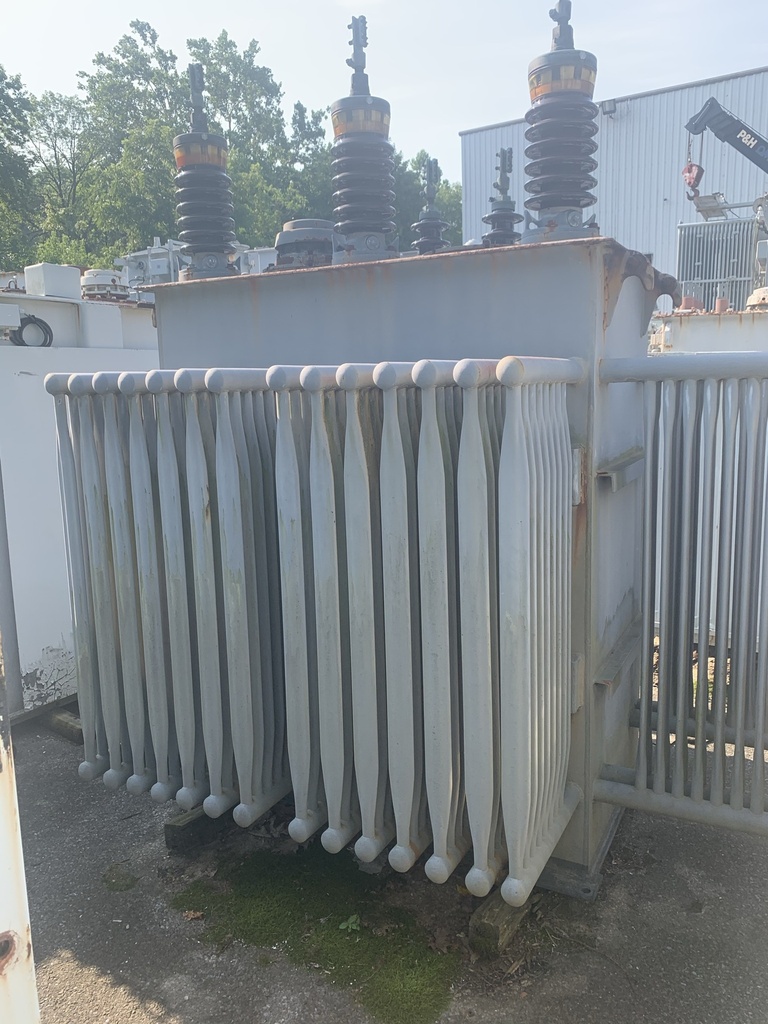

ONE (1) 1000/1120 KVA, MCGRAW EDISON, STATION CLASS TRANSFORMER, 3 PHASE, 60
HZ., CLASS OA/FFA, 55/65 DEGREES C RISE, 6.6% IMPEDANCE, TOP MOUNTED
BUSHINGS, C SPEC #12103-13-1, S/N C-40828-1-2
HIGH VOLTAGE: 33 KV DELTA BIL: 200 KV
LOW VOLTAGE: 2400 DELTA BIL: 60 KV
TAPS: 34650-33825-33000-32175-31350
TOTAL WEIGHT: 10,985 LBS.
CORE & COILS: 3,935 LBS.
TANK & FIT.: 3,645 LBS.
OIL: 3,405 LBS. (454 GALS.)
