1000 KVA, Pri. 13200 V, Y, Sec. 208 V, Y, MCGRAW EDISON, DEAD FRONT, LOOP FEED
PADMOUNT TRANSFORMER
Product Number:
022322
Full Product Description
STOCK #T-4880:

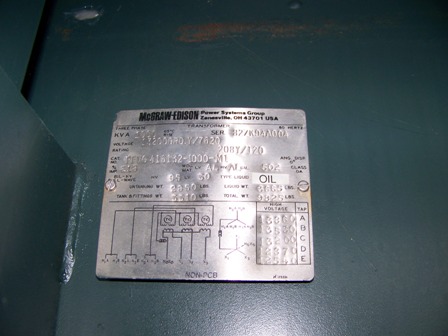

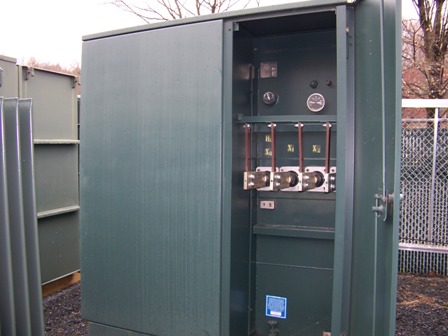

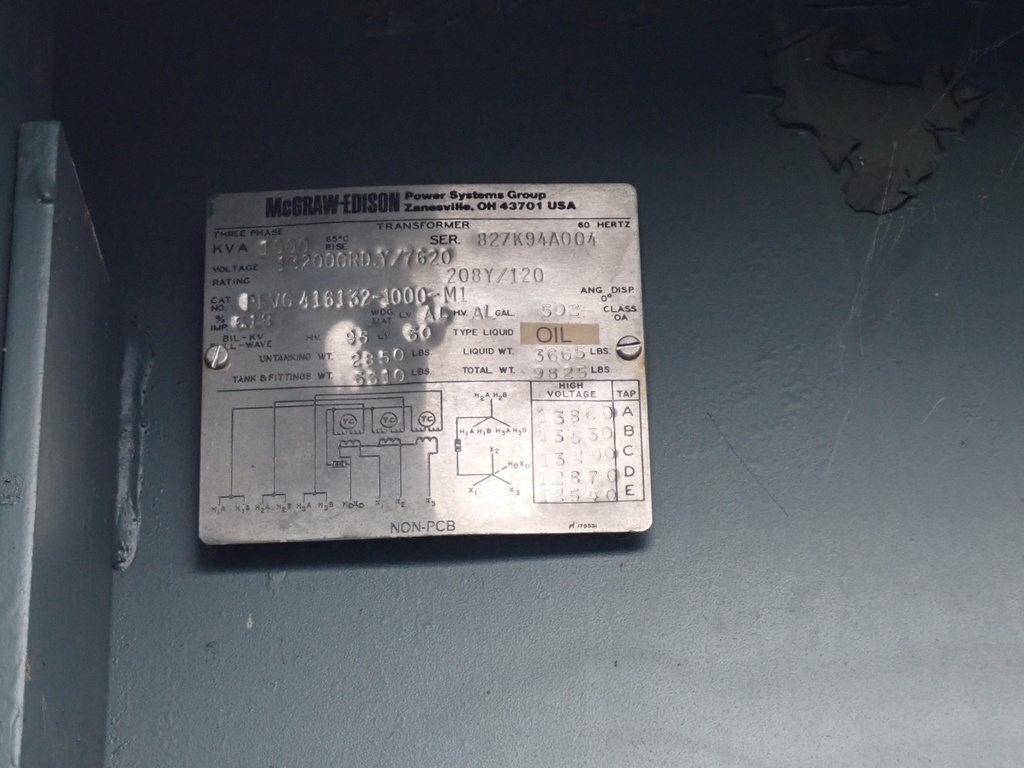

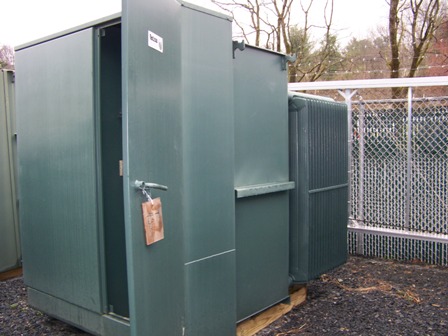

ONE (1) 1000 KVA, MCGRAW EDISON, COMPARTMENTALIZED, PADMOUNT TRANSFORMER, DEAD
FRONT, LOOP FEED, 3 PHASE, 60 HZ., CLASS OA, 6.18% IMPEDANCE, 65 DEG.
C RISE, WITH LIQUID LEVEL GAUGE, DIAL TYPE THERMOMETER, PRESSURE RE-
LIEF DEVICE, DRAIN & SAMPLE VALVE, ALUMINUM WOUND, FILLED WITH MEPSOL,
(HIGH FLASHPOINT FLUID)
HIGH VOLTAGE: 13.2 KV GRD.Y/7620 BIL: 95 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 9825 LBS.
DIMENSIONS: 84.5"H X 89"D X 70.5"W Low Voltage Bushing (X0, X2): 55.5" High Voltage Bushings: HV1: 41.5", HV2: 34", HV3: 26"
ONE (1) 1000 KVA, MCGRAW EDISON, COMPARTMENTALIZED, PADMOUNT TRANSFORMER, DEAD
FRONT, LOOP FEED, 3 PHASE, 60 HZ., CLASS OA, 6.18% IMPEDANCE, 65 DEG.
C RISE, WITH LIQUID LEVEL GAUGE, DIAL TYPE THERMOMETER, PRESSURE RE-
LIEF DEVICE, DRAIN & SAMPLE VALVE, ALUMINUM WOUND, FILLED WITH MEPSOL,
(HIGH FLASHPOINT FLUID)
HIGH VOLTAGE: 13.2 KV GRD.Y/7620 BIL: 95 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 9825 LBS.
DIMENSIONS: 84.5"H X 89"D X 70.5"W Low Voltage Bushing (X0, X2): 55.5" High Voltage Bushings: HV1: 41.5", HV2: 34", HV3: 26"
