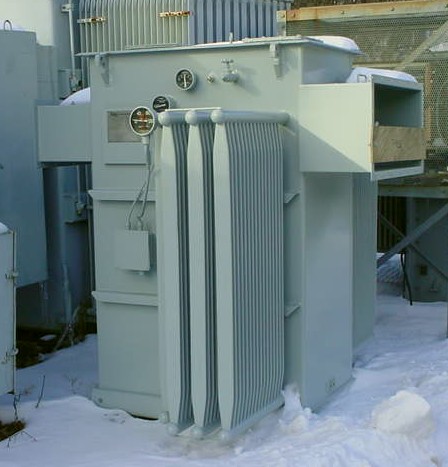

1500 KVA, Pri. 13200 D, Sec. 480/277 Y, NIAGARA, 3/60 HZ
SUBSTATION TRANSFORMER
Product Number:
021892
Full Product Description
STOCK #T-4832

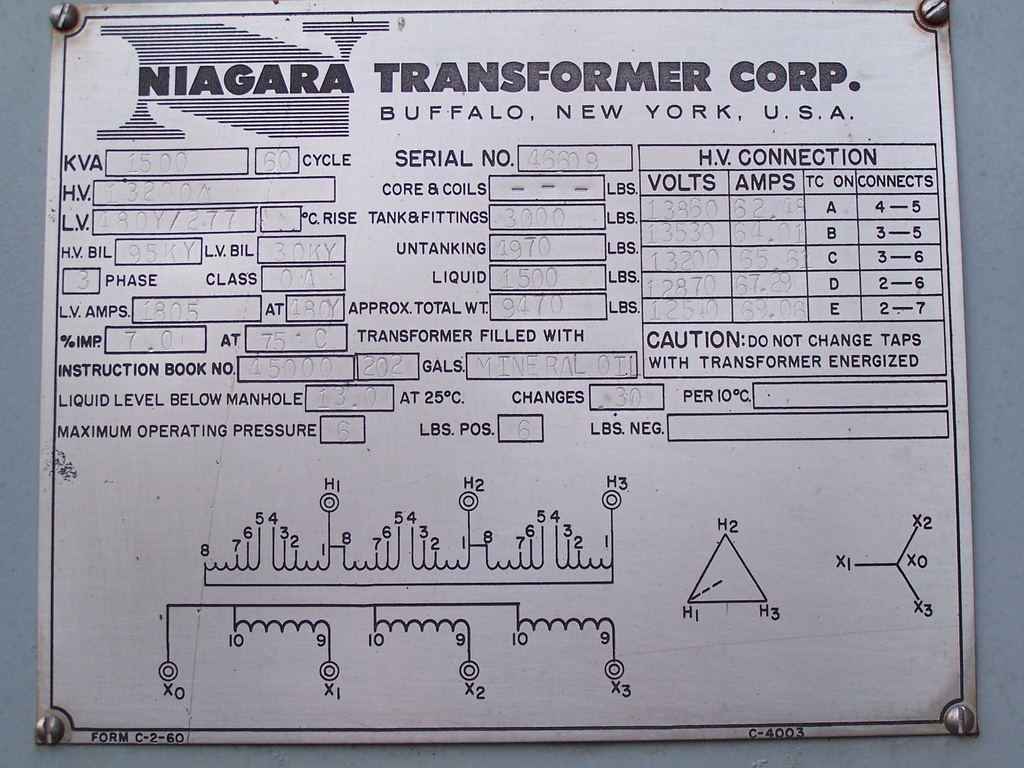

ONE (1) 1500 KVA, NIAGARA, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ
55 DEGREES C RISE, CLASS OA, 7.0% IMPEDANCE, S/N 48609,
THROAT MOUNTED BUSHINGS
HIGH VOLTAGE 13200 DELTA BIL: 95 KV
LOW VOLTAGE 480Y/277 WYE BIL: 30 KV
WITH 2 PLUS AND MINUS 2 1/2 TAPS
TOTAL WEIGHT 9470 LBS
CORE & COILS 4970 LBS
TANK & FIT. 3000 LBS
202 GALLONS OF OIL 1500 LBS
DIMENSIONS: 6'H X 7'W X 6'6"L

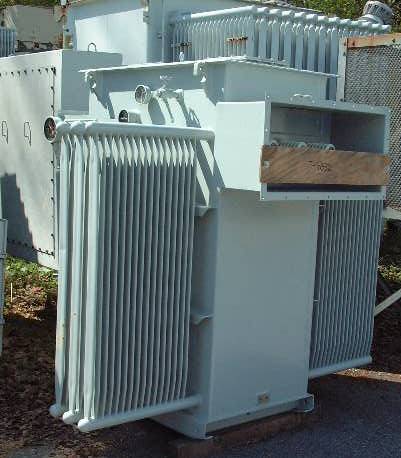

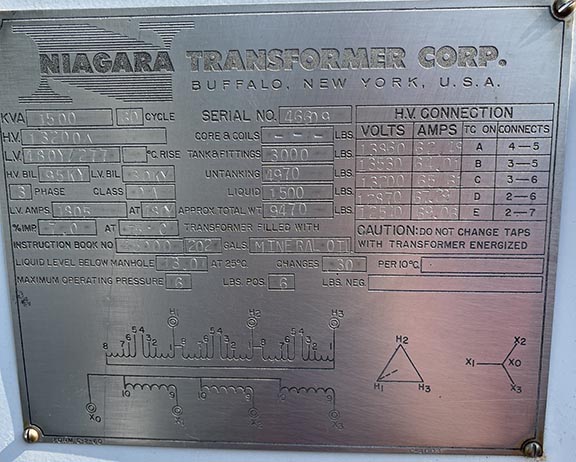

ONE (1) 1500 KVA, NIAGARA, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ
