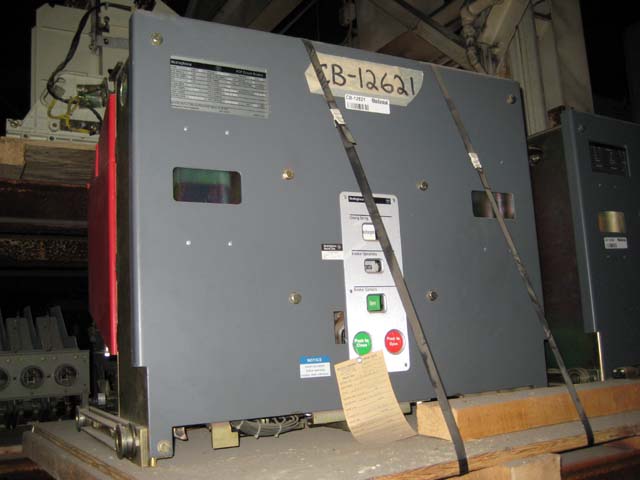

1200 Amp, WESTINGHOUSE, 150 VCP-500, 13.8 KV, 1984, VACUUM BREAKER:1
VACUUM CIRCUIT BREAKER
Product Number:
021394
Full Product Description

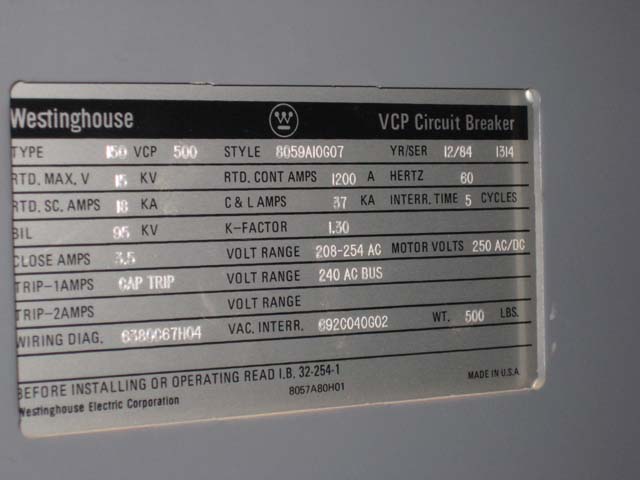

ONE (1) 1200 AMP WESTINGHOUSE VACUUM BREAKER
TYPE 150-VCP-500
STYLE 8059A10G07
13.8 KV
15 KV MAX
60 HERTZ
95 KV BIL
5 CYCLES INTERRUPT
18 KA SHORT CIRCUIT
1.30 VOLTAGE K FACTOR
37 CLOSE AND LATCH
208-254 AC CLOSE
250 AC/DC MOTOR
240 VAC CAP TRIP
WIRING DIAGRAM 6380C67H04
VAC. INTERR. 692C040G02
IB:32-254-1
500 LBS.
