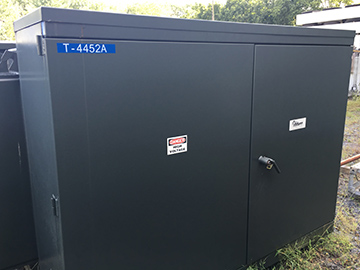

300 KVA, Pri. 2400 D, Sec. 208 Y, OA, WESTINGHOUSE, PADMOUNT, 65*C RISE
PADMOUNT TRANSFORMER
Product Number:
011210
Full Product Description
STOCK #T-4452:
ONE (1) 300 KVA, WESTINGHOUSE, COMPARTMENTALIZED, PADMOUNT
TRANSFORMER, LIVE FRONT, RADIAL FEED, 3 PHASE, 60 HZ.,
CLASS OA, 65 DEGREES C RISE, 5.6% IMPEDANCE, S/N
84JB117116, R-TEMP FILLED, ALUMINUM WOUND, WITH DIAL
TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM
GAUGE, DELTA/WYE SWITCH
HIGH VOLTAGE: 4.16 Y/2.4 KV X 2.4 KV DELTA
LOW VOLTAGE: 208 Y/120 VOLT
WITH 4 MINUS 2-1/2% TAPS
TOTAL WEIGHT: 5,203 LBS
DIMENSIONS: 66 H X 50 W X 90 D
RELIEF DEVICE.
ONE (1) 300 KVA, WESTINGHOUSE, COMPARTMENTALIZED, PADMOUNT
TRANSFORMER, LIVE FRONT, RADIAL FEED, 3 PHASE, 60 HZ.,
CLASS OA, 65 DEGREES C RISE, 5.6% IMPEDANCE, S/N
84JB117116, R-TEMP FILLED, ALUMINUM WOUND, WITH DIAL
TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM
GAUGE, DELTA/WYE SWITCH
HIGH VOLTAGE: 4.16 Y/2.4 KV X 2.4 KV DELTA
LOW VOLTAGE: 208 Y/120 VOLT
WITH 4 MINUS 2-1/2% TAPS
TOTAL WEIGHT: 5,203 LBS
DIMENSIONS: 66 H X 50 W X 90 D
RELIEF DEVICE.
