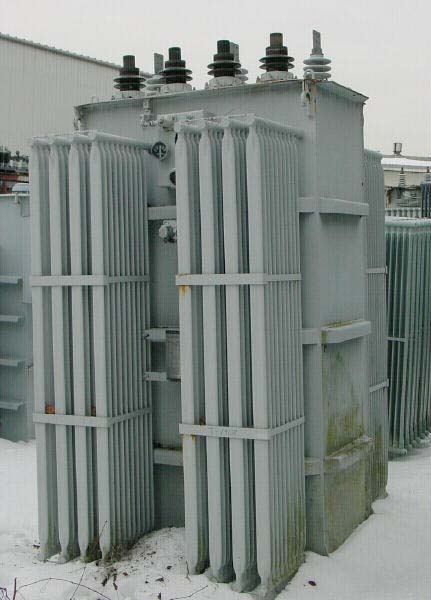

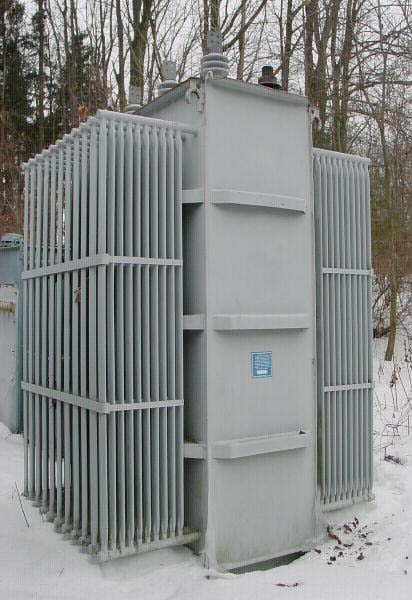

2500/2800 KVA, Pri. 12000 D, Sec. 480Y/277, GENERAL ELECTRIC
SUBSTATION TRANSFORMER
Product Number:
009100
Full Product Description
BELYEA STOCK: T-1908
1 - REBUILT 2500 KVA GENERAL ELECTRIC, 55*C RISE, STATION CLASS
TRANSFORMER, 3 PHASE, 60 HZ., CLASS OA, 6.03% IMPEDANCE,

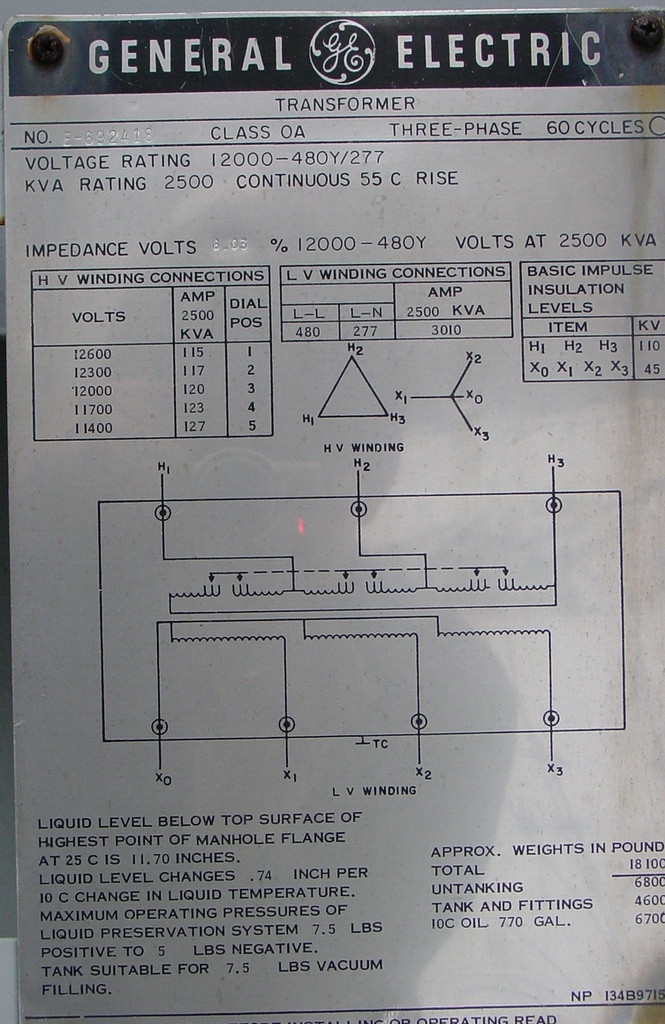

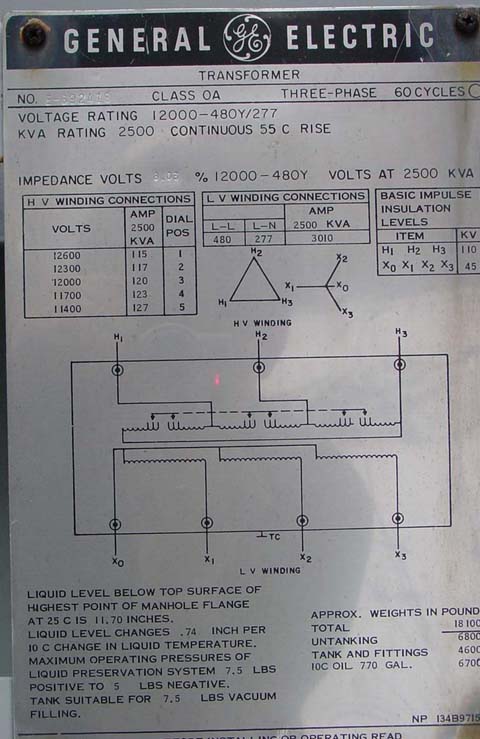

S/N E692418, TOP MOUNTED BUSHINGS
HIGH VOLTAGE 12000 DELTA
LOW VOLTAGE 480 Y/277
WITH 2+/-2.5% TAPS
TOTAL WT 18100 LBS
C&C WT 6800 LBS
TANK & FIT 4600 LBS
OIL 860 GAL 6700 LBS
DIMENSIONS: 11'H X 6'W X 6.5'D
