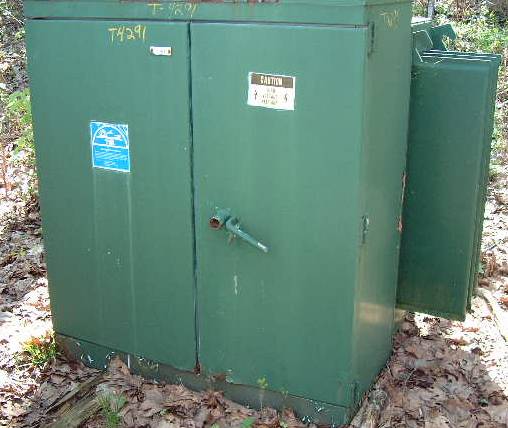

150 KVA, Pri. 2400 V, D, Sec. 208 V, Y, OA, WESTINGHOUSE, PADMOUNT, OIL;-1
REBUILT PADMOUNT TRANSFORMER
Product Number:
009026
Full Product Description
STOCK #T-4291:
ONE (1) 150 KVA, WESTINGHOUSE, COMPARTMENTALIZED, PADMOUNT TRANS-
FORMER, LIVE FRONT, RADIAL FEED, 3 PHASE, 60 HZ., CLASS
OA, 65 DEGREES C RISE, 2.60% IMPEDANCE, WITH CURRENT
LIMITING, LOADBREAK FUSES, 3 - 3 KV LIGHTNING ARRESTORS
DRAIN & SAMPLE VALVE, DIAL TYPE THERMOMETER, PRESSURE
VACUUM GAUGE, LIQUID LEVEL GAUGE, S/N 82JM848067
HIGH VOLTAGE: 2400 DELTA
LOW VOLTAGE: 208Y/120
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 2,672 LBS.
DIMENSION 4.5'H X 38'W X 6'L
